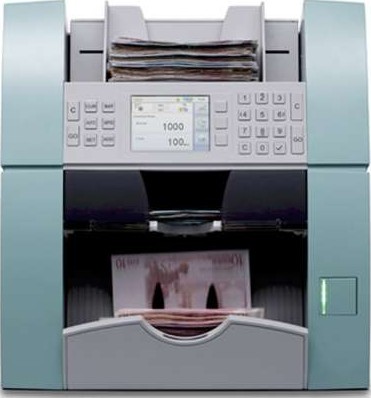

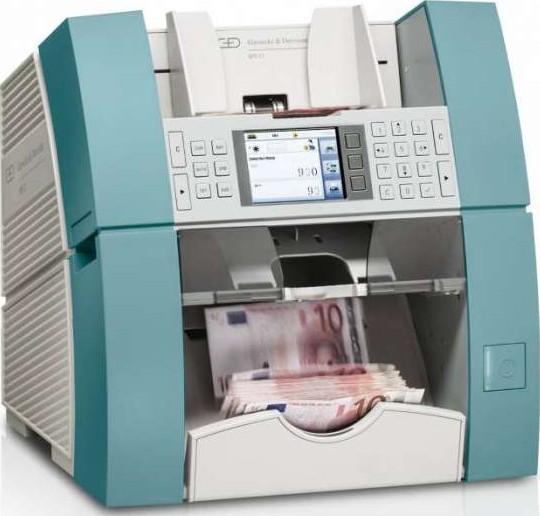

G&D BPS CI Bank Note Processing System
-
Processing Speed: Up to 1,000 banknotes per minute.
-
Capacity: Holds up to 600 notes in the input compartment, and up to 200 notes in each output compartment.
-
Banknote Format: Supports various sizes, including different currencies.
-
Fitness Sorting: Can sort notes by denomination, orientation, and physical fitness (e.g., detecting worn or damaged notes).
-
Counterfeit Detection: Equipped with advanced counterfeit detection mechanisms such as UV, IR, magnetic ink, and security thread detection.
-
Compact Design: Designed to fit in tight spaces with a user-friendly interface.
-
Modular Scalability: Can be integrated into larger systems with additional modules for customized sorting or processing needs.
-
Multi-Currency Capability: Capable of processing multiple currencies with accurate sorting and detection.
-
Batch Processing: Supports pre-defined batch sizes for easier handling and bundling of notes.
-
Connectivity: Can be connected to external systems (via USB, Ethernet, or other interfaces) for data reporting or integration into cash management systems.
Get Quote Download Brochure
Product Highlight
| Feature | Details |
|---|
| Manufacturer | Giesecke+Devrient (G&D) |
| Model | BPS C1 |
| Functionality | Banknote processing, counting, and sorting |
| Capacity | Up to 1,500 banknotes (input) |
| Processing Speed | 1,500 banknotes per minute |
| Dimensions | 400 mm x 310 mm x 370 mm |
| Weight | 30 kg |
| Display | 7" color touch screen |
| Sorting Pockets | 1 stacker pocket, 1 reject pocket |
| Sorting Capability | Up to 10 currencies simultaneously |
| Counterfeit Detection | UV, MG, IR, 3D sensors |
| Fitness Sorting | Yes (fit/unfit detection for circulation) |
| Multi-currency | Yes, supports multiple currencies |
| Connectivity | Ethernet, USB, RS232, SD card |
| Software Integration | Supports central monitoring and control systems |
| Noise Level |
| Power Supply | 100-240 V AC, 50-60 Hz |
| Operating Temperature | 15°C to 35°C |
| Additional Features | Remote diagnostics, customizable sorting modes |
Product Specification
| Feature | Details |
|---|
| Manufacturer | Giesecke+Devrient (G&D) |
| Model | BPS C1 |
| Functionality | Banknote processing, counting, and sorting |
| Capacity | Up to 1,500 banknotes (input) |
| Processing Speed | 1,500 banknotes per minute |
| Dimensions | 400 mm x 310 mm x 370 mm |
| Weight | 30 kg |
| Display | 7" color touch screen |
| Sorting Pockets | 1 stacker pocket, 1 reject pocket |
| Sorting Capability | Up to 10 currencies simultaneously |
| Counterfeit Detection | UV, MG, IR, 3D sensors |
| Fitness Sorting | Yes (fit/unfit detection for circulation) |
| Multi-currency | Yes, supports multiple currencies |
| Connectivity | Ethernet, USB, RS232, SD card |
| Software Integration | Supports central monitoring and control systems |
| Noise Level |
| Power Supply | 100-240 V AC, 50-60 Hz |
| Operating Temperature | 15°C to 35°C |
| Additional Features | Remote diagnostics, customizable sorting modes |
