A3 Colour

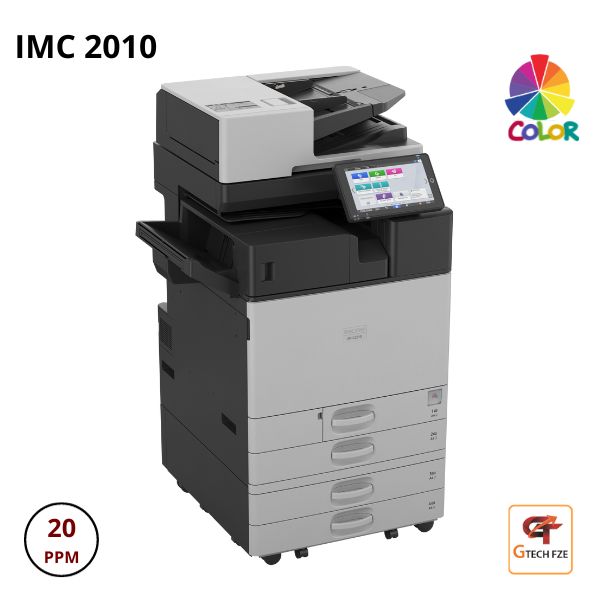

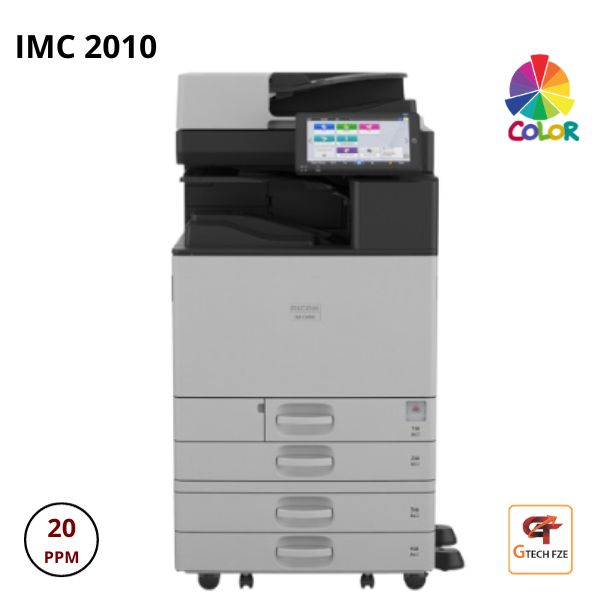

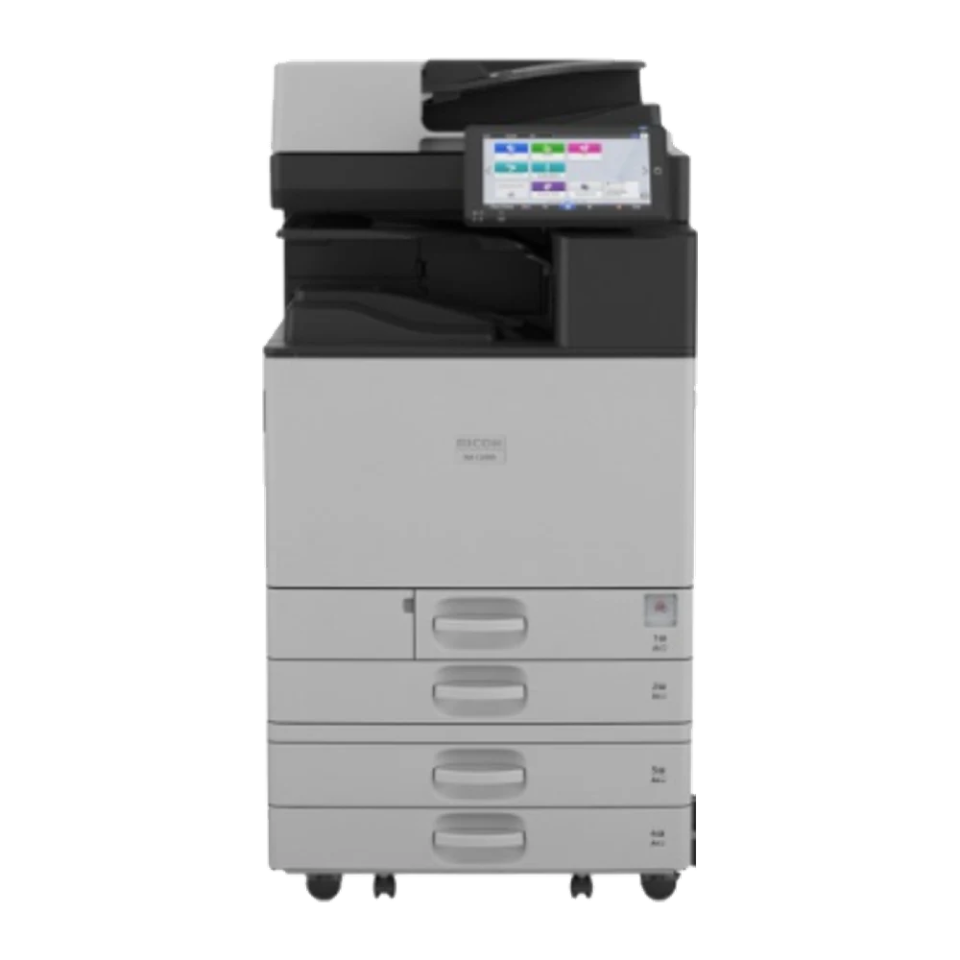

RICOH IM C2010
Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai. Delivered across Abu Dhabi, Sharjah and every emirate, and exported throughout the Middle East and Africa.
Genuine Ricoh hardwareSupplied and serviced by an authorized distributor, with full manufacturer warranty.
Fully featured 20 ppm A3 colour all in one printer
From a family of intelligent and easy to use A3 colour all in one printers
Document feeder (ARDF) automates scanning processes, turning double sided documents and scanning both sides

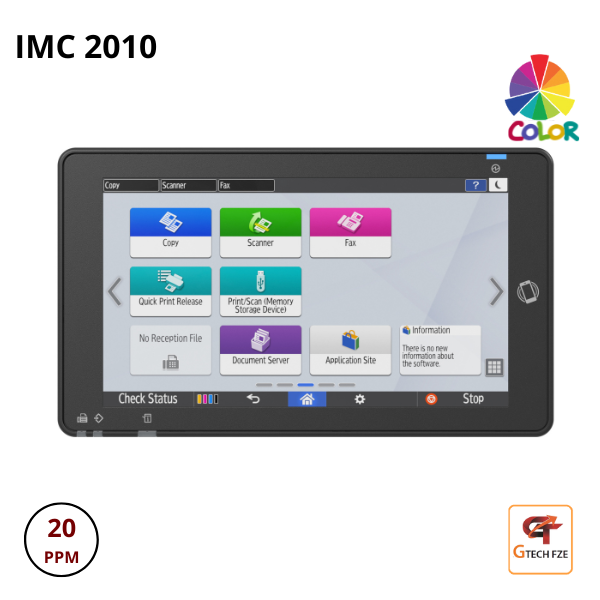

Super-sized 10.1 inch Smart Operation Panel and Intuitive User Interface simplify operation
Print, Copy, Scan & E-mail
USB 2.0, GIGABIT Network & Optional Wireless
6GB Memory, 256 GB SSD
PCL 5e/6, Postscript 3 (Emulation)
Print from Mobile (iOS & Android)
Scan to Mobile (iOS & Android)/Ricoh Smart Device Connector
Standard Paper Tray : 2 x 550 sheets (A3/A4)
Optional : 1 x 550 sheets tray or 2 x 550 sheets tray
Bypass Tray: 100 Sheets
Toner IM C2510 High Yield : Black : 30000 Pages/Toner Colour : 18000 Pages
Highlights
Seamless integration with digital workflows
Ricoh Smart Integration helps you work faster and more effectively with cloud-based information and workflow solutions.
Smooth operation
Latest generation Smart Operation Panel offers fast and simple navigation for a smooth and productive user experience.
Professional colour prints
Impress audiences with vibrant, high quality images and text thanks to Ricoh’s advanced colour technology.
Reduced energy consumption
Improved Sleep Mode and typical energy consumption help you operate with a smaller carbon footprint and lower costs.
Technical detail
Product specifications
| GENERAL | |
|---|---|
| Warm-up time | 24 seconds |
| First copy speed: BW | 5.1 seconds |
| First copy speed: full colour | 7.4 seconds |
| Continuous output speed | 20 ppm |
| Memory: standard | 6 GB |
| Memory: maximum | 6 GB |
| SSD: standard | 256 GB |
| SSD: optional | 1 TB |
| HDD: optional | 320 GB |
| ARDF capacity | 100 sheets |
| SPDF capacity | 220 sheets |
| Weight ARDF model | 89.7 kg |
| Weight SPDF model | 96.1 kg |
| COPIER | |
| Multiple copying | Up to 999 copies |
| Resolution | 600 dpi |
| Zoom | From 25% to 400% in 1% steps |
| PRINTER | |
| First print speed: B/W | 4.5 seconds |
| First print speed: full colour | 7 seconds |
| Printer language: standard | PCL5c, PCL6, PostScript 3 (emulation), PDF direct (emulation) |
| Printer language: option | Genuine Adobe® PostScript®3™, XPS, PictBridge, PDF Direct from Adobe® |
| Print resolution: maximum | 4,800 x 1,200 dpi with smoothing process |
| Network interface: standard | Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B, Bluetooth |
| Network interface: option | Wireless LAN (IEEE 802.11 a/b/g/n/ac), Additional NIC (2nd port) |
| Mobile printing capability | Apple AirPrint, Mopria®, Ricoh Smart Device Connector |
| Windows® environments | Windows® 8.1, Windows® 10, Windows® 11, Windows® Server 2012R2, Windows® Server 2016, Windows® Server 2019, Windows® Server 2022 |
| Mac OS environments | Macintosh OS X v10.15 or later |
| UNIX environments | UNIX Sun® Solaris, HP-UX, SCO OpenServer, RedHat® Linux Enterprise, IBM® AIX |
| Other supported environments | IBM iSeries |
| SCANNER | |
| Resolution: maximum | 1,200 dpi |
| File formats | Single Page TIFF, Single page JPEG, Single page PDF, Single page High compression PDF, Single page PDF/A, Multi page TIFF, Multi page PDF, |
| Scan modes | E-mail, Folder, USB |
| FAX | |
| Circuit | PSTN, PBX |
| Transmission speed | G3: approximately 3 seconds (200 x 100 dpi, JBIG, ITUT #1 chart TTI off, memory transmission) |
| Modem speed: maximum | 33.6 Kbps |
| Resolution: standard | 8x3.85 line̸ mm, 200x100 dpi |
| Resolution: option | 16x15.4 line̸ mm, 400x400 dpi |
| Compression method | MH, MR, MMR, JBIG |
| Memory: standard | 4 MB (320 pages) |
| Memory: maximum | 60 MB (4,800 pages) |
Specifications and images are provided for general reference only and may vary by configuration, revision or region. They do not form part of any offer or contract. Contact us to confirm exact specifications, availability and pricing for your requirement.
Configurator
Configure the RICOH IM C2010
Choose paper trays, finishers, fax and security options. Ricoh's compatibility rules are applied as you go, so incompatible options are blocked and required parts are added for you. Send the result to us and we will confirm availability and price.
Standard on the IM C2010
- 10.1" Smart Operation Panel
- 6 GB memory (RAM)
- 256 GB SSD
- 100-sheet ARDF
- 2 x 550-sheet input tray
- 100-sheet bypass tray
Paper feeding and input options4 options
Optional 1-tray paper feed unit that increases the paper capacity of the device.
Capacity: 550 sheets
Paper size: SRA3 (12.6” x 17.7”), 12” x 18” / DLT SEF–A6 SEF
Paper weight: 60–300 g/m2
Dimensions (W x D x H): 587 x 685 x 120 mm
Weight: 12 kg
Power consumption: 19 W
Capacity: 550 sheets
Paper size: SRA3 (12.6” x 17.7”), 12” x 18” / DLT SEF–A6 SEF
Paper weight: 60–300 g/m2
Dimensions (W x D x H): 587 x 685 x 120 mm
Weight: 12 kg
Power consumption: 19 W

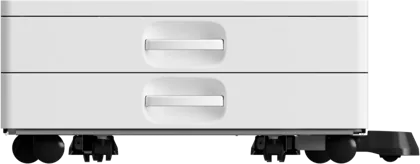

Optional 2-tray paper feed unit that increases the paper capacity of the device.
Capacity: 1,100 (2 x 550) sheets
Paper size: SRA3 (12.6” x 17.7”), 12” x 18” / DLT SEF–A6 SEF
Paper weight: 60–300 g/m2
Dimensions (W x D x H): 587 x 685 x 247 mm; 587 x 755 x 247 mm—with tray extended
Weight: 23 kg
Power consumption: 21 W
Capacity: 1,100 (2 x 550) sheets
Paper size: SRA3 (12.6” x 17.7”), 12” x 18” / DLT SEF–A6 SEF
Paper weight: 60–300 g/m2
Dimensions (W x D x H): 587 x 685 x 247 mm; 587 x 755 x 247 mm—with tray extended
Weight: 23 kg
Power consumption: 21 W
Provides a base with casters (wheels) to easily move the device on a floor standing configuration.
Dimensions (W x D x H): 668 x 723 x 76 mm
Weight: 8.3 kg
Dimensions (W x D x H): 668 x 723 x 76 mm
Weight: 8.3 kg
Extension arm to hold long sheets (banners) on the bypass tray to prevent them from sliding and falling on the floor. Paper size: 12.6" x 17.7", SRA3, 12" x 18", 305 x 458 mm–A6 SEF
Custom paper size: 90–320 mm (width), 148–1,260 mm (length)
Paper weight: 128–230 g/m2
Custom paper size: 90–320 mm (width), 148–1,260 mm (length)
Paper weight: 128–230 g/m2
Output and finishing options12 options
Provides an additional exit point if a finisher is not attached.
Output to internal tray: 250 sheets (A4) or 125 sheets (B4)
Output to left side: 125 sheets
Paper size:
Width: 90–320 mm, Length: 148–600 mm—output to internal tray
Width: 90–320 mm, Length: 148–457.2 mm—output to left side
320 x 1,260 mm—output to left side, configurable in SP Mode
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 800 x 549 x 156 mm
Weight: 4 kg
Power consumption: 12 W
Output to internal tray: 250 sheets (A4) or 125 sheets (B4)
Output to left side: 125 sheets
Paper size:
Width: 90–320 mm, Length: 148–600 mm—output to internal tray
Width: 90–320 mm, Length: 148–457.2 mm—output to left side
320 x 1,260 mm—output to left side, configurable in SP Mode
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 800 x 549 x 156 mm
Weight: 4 kg
Power consumption: 12 W

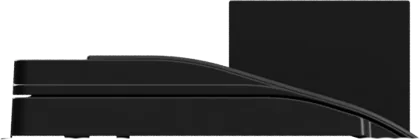

Enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.
Capacity: 250 sheets (A4 or smaller), 125 sheets (B4 or larger)
Paper size: 320 mm x 600 mm or smaller; 320 mm x 1,260 mm—configurable in SP Mode
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 420 x 489 x 107 mm
Weight: 1.4 kg
Power consumption: 2 W
Capacity: 250 sheets (A4 or smaller), 125 sheets (B4 or larger)
Paper size: 320 mm x 600 mm or smaller; 320 mm x 1,260 mm—configurable in SP Mode
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 420 x 489 x 107 mm
Weight: 1.4 kg
Power consumption: 2 W

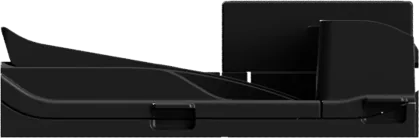

Required when a mainframe is configured with an external finisher. Transports pages from the standard exit area into a finisher for inline stapling or hole punching. Dimensions (W x D x H): 412 x 466 x 143 mm
Weight: 3.4 kg
Power consumption: 12 W
Weight: 3.4 kg
Power consumption: 12 W

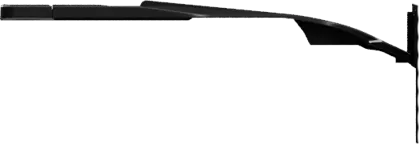

Provides an additional output tray above the standard internal tray, optional bridge unit, optional internal shift tray, or optional internal finisher. Allows a user to separate print and fax output from copy.
Paper capacity: 125 sheets
Dimensions (W x D x H): 444 x 450 x 150 mm
Weight: 1.4 kg
Paper capacity: 125 sheets
Dimensions (W x D x H): 444 x 450 x 150 mm
Weight: 1.4 kg

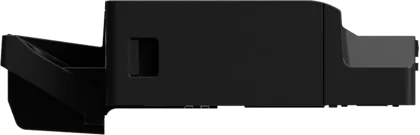

Provides multi-position stapling and optional hole punching.
Capacity: 500 sheets
Paper size: A3–A6, B4–B6, 12.6” x 17.7”, 12” x 18”, custom size 90–320 mm x 148–1,260 mm
Paper weight: 52–300 g/m2
Staple capacity: 30 sheets—A3, B4; 50-sheets—other sizes not listed
Staple positions: top, bottom, 2 staple
Staple paper weight: 52-105 g/m2
Optional punch unit available
Dimensions (W x D x H): 546 x 523 x 170 mm
Weight: 12.8 kg
Power consumption: 47 W or less; 60 W or less—with punch unit
Capacity: 500 sheets
Paper size: A3–A6, B4–B6, 12.6” x 17.7”, 12” x 18”, custom size 90–320 mm x 148–1,260 mm
Paper weight: 52–300 g/m2
Staple capacity: 30 sheets—A3, B4; 50-sheets—other sizes not listed
Staple positions: top, bottom, 2 staple
Staple paper weight: 52-105 g/m2
Optional punch unit available
Dimensions (W x D x H): 546 x 523 x 170 mm
Weight: 12.8 kg
Power consumption: 47 W or less; 60 W or less—with punch unit

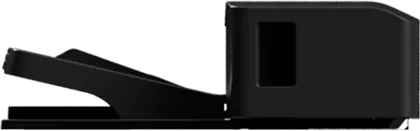

Provides stapleless finishing up to 5 sheets. Ideal for customers in the food industry and schools that are concerned with binding papers with metal staples.
Capacity: 250 sheets
Paper size: A3–A5 SEF, B6 SEF, A6 SEF, 12” x 18”, HLT–DLT SEF, SRA3, 13” x 19.2”
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 435 x 515 x 150 mm; 650 x 515 x 150 mm—with tray extended
Weight: 9.8 kg
Power consumption: 30 W
Capacity: 250 sheets
Paper size: A3–A5 SEF, B6 SEF, A6 SEF, 12” x 18”, HLT–DLT SEF, SRA3, 13” x 19.2”
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 435 x 515 x 150 mm; 650 x 515 x 150 mm—with tray extended
Weight: 9.8 kg
Power consumption: 30 W

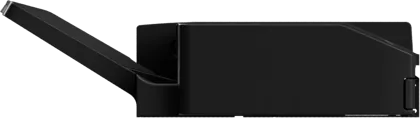

Offers four types of single-sheet folding within the original footprint as it is installed in the exit tray.
Fold types: Z-fold, half-fold, letter fold-in, and letter fold-out
Paper size: A3, B4, A4, B5, DLT, LG, LT, 8K, 8.5” x 13.4” (Oficio), 12”x 18”, 12.6” x 17.7” (SRA3)
Paper weight: 52–220 g/m2
Dimensions (W x D x H): 612 x 555 x 184 mm—without extended tray; 714 x 555 x 242 mm—with tray extended
Weight: 16 kg
Power consumption: 40 W
Fold types: Z-fold, half-fold, letter fold-in, and letter fold-out
Paper size: A3, B4, A4, B5, DLT, LG, LT, 8K, 8.5” x 13.4” (Oficio), 12”x 18”, 12.6” x 17.7” (SRA3)
Paper weight: 52–220 g/m2
Dimensions (W x D x H): 612 x 555 x 184 mm—without extended tray; 714 x 555 x 242 mm—with tray extended
Weight: 16 kg
Power consumption: 40 W

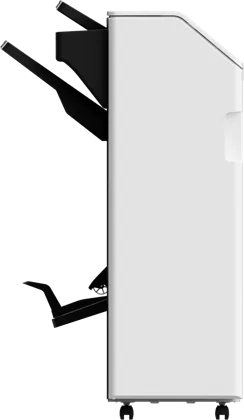

Allows documents to be professionally finished as saddle-stitched booklets. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas. Offers optional hole punching.
Capacity: 1,000 sheets
Paper size: A3–A5 SEF，B6 SEF, A6 SEF, 12” × 18”, HLT—DLT SEF, SRA3, 13” x 19.2”, custom paper size—90 x 139.7–330.2 x 487.7 mm
Paper weight: 52–169 g/m2—proof tray; 52–300 g/m2—shift tray
Staple capacity: 2–50 sheets—normal staple; 15 sheets—saddle stitch staple
Staple positions: top, bottom, 2 spots
Staple paper weight: 52-105 g/m2
Optional punch unit PU3080 available
Dimensions (W x D x H): 575 x 620 x 960 mm—without extended tray; 660 x 620 x 960 mm—with extended tray
Weight: 43.5 kg
Power consumption: 35.4 W
Capacity: 1,000 sheets
Paper size: A3–A5 SEF，B6 SEF, A6 SEF, 12” × 18”, HLT—DLT SEF, SRA3, 13” x 19.2”, custom paper size—90 x 139.7–330.2 x 487.7 mm
Paper weight: 52–169 g/m2—proof tray; 52–300 g/m2—shift tray
Staple capacity: 2–50 sheets—normal staple; 15 sheets—saddle stitch staple
Staple positions: top, bottom, 2 spots
Staple paper weight: 52-105 g/m2
Optional punch unit PU3080 available
Dimensions (W x D x H): 575 x 620 x 960 mm—without extended tray; 660 x 620 x 960 mm—with extended tray
Weight: 43.5 kg
Power consumption: 35.4 W
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Printer and scanner options5 options
Assists seated users or users with arm injuries to open and close an automatic document feeder.
Allows users to print crop marks for proofing SRA3/12.6" documents.
Allows users to save copy and print jobs stored on the document server to a computer.
Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
Genuine Adobe® PostScript®3™. Recommended for printing more complex colour and PDF files. This option is available for customers who require True Adobe® workflows like Photoshop®, Illustrator® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation and PDF Direct Emulation will be disabled.
Fax options4 options
Enables fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320-page memory.
Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.
Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.
Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax. Supports max 6 sub-connections.
Additional G3 fax line. Up to two units can be installed.
Additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
Security and miscellaneous accessories11 options
Optional SSD with enhanced security features to increase document storage capacity.
Optional SSD to increase document storage capacity.
This optional HDD is required to comply with Common Criteria Certification IEEE2600.2. Standard SSD complies with Common Criteria Certification PP HCD v1.0. This option replaces the standard 256 GB SSD.
For use with third party card reader solutions. The Card Reader Cover slots into the right-hand side of the Smart Operation Panel. A card reader is not included. Not all card readers may be supported.
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology.
Used with external third party counting devices for accounting and charge-back purposes.
Enables WiFi connectivity and wireless printing.
Supports multilingual data without restrictions.
A physical locking mechanism that prevents the toner bottles from being removed before they are empty to minimise wastage.
A protective sheet with antimicrobial properties for Ricoh devices equipped with a 10.1-inch Smart Operation Panel version G2.5 (full flat type).
The screen protector works by generating silver ion (Ag+) from the sheet surface which then connects with bacterial enzymes, blocking replication and destroying the harmful cells.
The antimicrobial effect is ISO 22196-certified under the Society of Industrial Technology for Antimicrobial Articles (SIAA). NOTE: Please check the availability of this option with your local sales company.
The screen protector works by generating silver ion (Ag+) from the sheet surface which then connects with bacterial enzymes, blocking replication and destroying the harmful cells.
The antimicrobial effect is ISO 22196-certified under the Society of Industrial Technology for Antimicrobial Articles (SIAA). NOTE: Please check the availability of this option with your local sales company.
Options and compatibility rules are Ricoh's, from Ricoh's own configurator. Availability can differ in the Middle East, so we confirm every configuration before quoting.
Next step
Want pricing on the RICOH IM C2010?
Tell us your monthly volume and we will quote the right configuration, delivered and installed anywhere in the UAE.
