A3 Colour

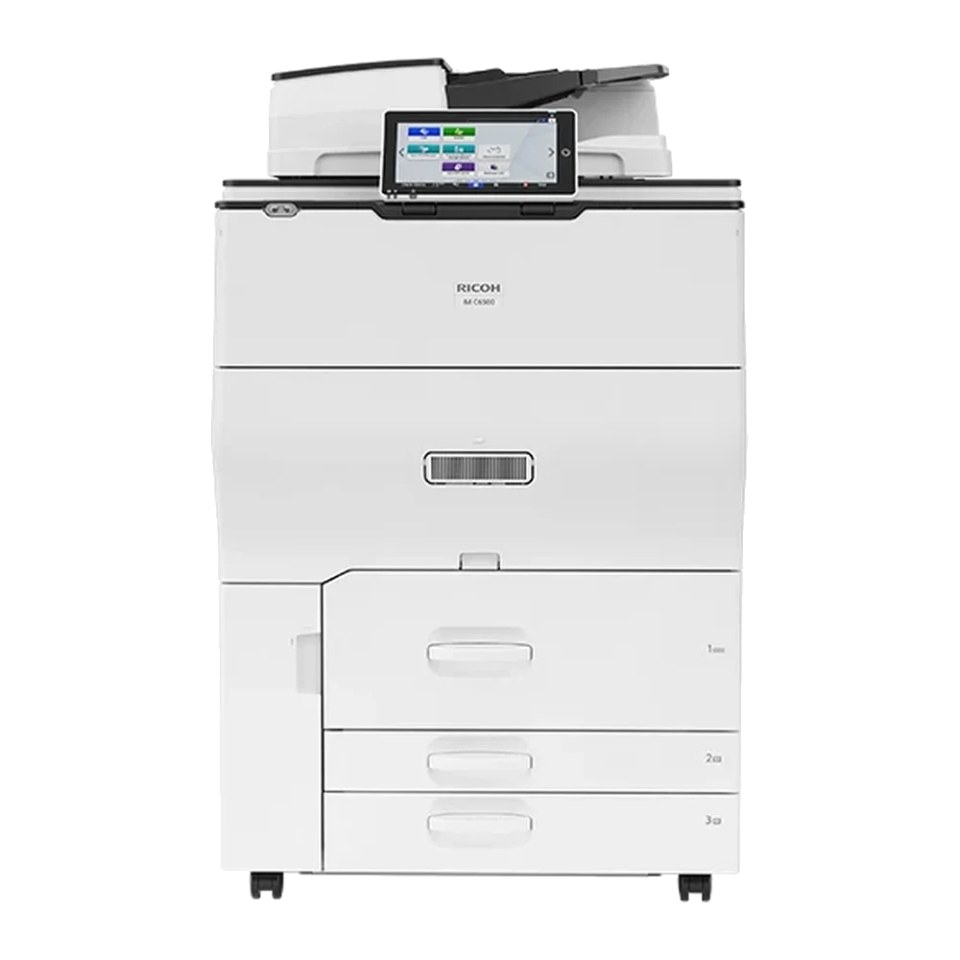

RICOH IM C6500
Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai. Delivered across Abu Dhabi, Sharjah and every emirate, and exported throughout the Middle East and Africa.
Genuine Ricoh hardwareSupplied and serviced by an authorized distributor,
with full manufacturer warranty.
The Ricoh IM C6500 is a high-performance color multifunction printer (MFP) designed for medium to large offices or workgroups that require efficient document handling and high-quality printing. Below are the key specifications:
General Specifications
- Model: Ricoh IM C6500
- Functions: Print, Copy, Scan, Optional Fax
- Color Technology: Laser
- Print Speed: Up to 65 pages per minute (ppm) in both color and black & white
- Warm-Up Time: Less than 24 seconds
- First Output Speed:
- Color: 6.1 seconds or less
- Black & White: 4.4 seconds or less
- Paper Capacity:
- Standard: 1,200 sheets
- Maximum: 8,100 sheets
- Paper Size:
- Paper Tray: A6 - SRA3
- Bypass Tray: A6 - 13" x 19.2" (330.2 x 487.7 mm)
- Paper Weight: 52 to 300 g/m² (Tray), 52 to 360 g/m² (Bypass)
- Dimensions (WxDxH): 735 x 900 x 1,225 mm
- Weight: Approximately 200 kg
Print Specifications
- Resolution: Up to 2,400 x 4,800 dpi
- Processor: Intel Atom Processor ApolloLake 1.6 GHz
- Memory: 2 GB RAM (Expandable)
- Hard Drive: 320 GB (Optional 1 TB)
- Duplex Printing: Standard automatic
- Print Languages: PCL 5c, PCL 6, PDF Direct, PostScript 3 emulation, XPS, IPDS (optional)
- Connectivity:
- Standard: Ethernet 10Base-T/100Base-TX/1000Base-T, USB 2.0, USB Host I/F
- Optional: Wi-Fi, Bluetooth, NFC, IEEE 802.11a/b/g/n
- Mobile Printing: Apple AirPrint™, Google Cloud Print™, Mopria™, Ricoh Smart Device Connector
Scan Specifications
- Scanning Speed: Up to 240 images per minute (ipm) (Simplex/Duplex, color/mono)
- Resolution: Up to 1,200 dpi
- File Formats: Single/Multi-page TIFF, Single/Multi-page PDF, PDF/A, High Compression PDF, Single/Multi-page JPEG
- Scan to: Email, Folder, USB, SD Card, SMB, FTP, URL, and more
Copy Specifications
- Copy Speed: Up to 65 copies per minute (cpm)
- Resolution: Up to 600 x 600 dpi
- Multiple Copy: Up to 9,999 copies
- Zoom: 25% to 400% in 1% increments
Fax Specifications (Optional)
- Compatibility: G3
- Resolution: 200 x 100 dpi, 200 x 200 dpi
- Transmission Speed: G3: 2 seconds per page
- Memory: Standard 4 MB, Optional 64 MB
- Internet Fax (T.37): Optional
Environmental Specifications
- Power Consumption:
- Maximum: 1,850 W
- Energy Saver Mode: 0.64 W
- Energy Star: Certified
- TEC (Typical Electricity Consumption): 4.2 kWh/week
Additional Features
- User Interface: 10.1" Smart Operation Panel (SOP)
- Security Features: Data encryption, user authentication, secure print, address book encryption, HDD overwrite and encryption, and more.

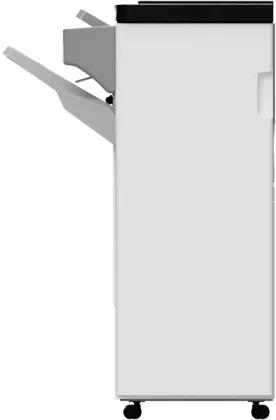

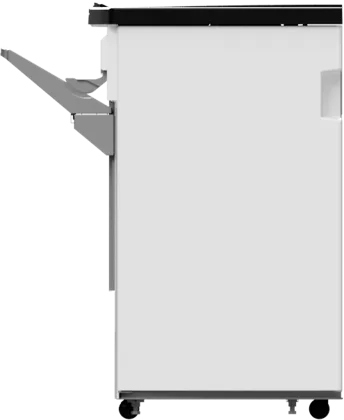

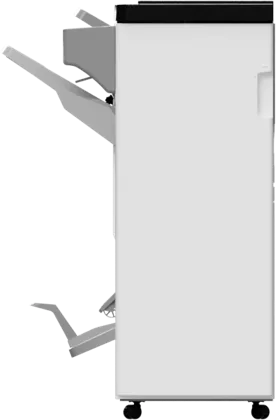

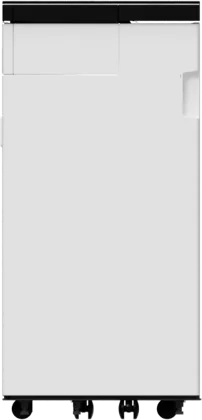

- Finishing Options: Booklet Finisher, Staple Finisher, Hole Punch Unit, Z-fold, Multi-folding Unit.
Highlights
Sharing the same intuitive interface as other RICOH Intelligent Devices, the IM C6500 is incredibly easy to use. Its super-sized 10.1” Smart Operation Panel wakes on approach and our Smart applications automate everyday processes. What is more, with RICOH Always Current Technology™, new features and applications can be installed on demand. The same touchscreen panel also supports the use of enterprise solutions, such as StreamLine NX, which help to ensure security and compliance.
-
IM C6500 is a long-term solution to rapidly evolving business needs
-
Effortlessly meet demanding departmental imaging requirements
-
Produce high quality sales and marketing collateral inhouse
-
Fold, staple, punch and bind output in line for a professional finish
-
New applications can be installed as your requirements change
-
Stunning high-resolution colour print is produced at express speed
-
Mobile workers can interact seamlessly with the intelligent device
Technical detail
Product specifications
| GENERAL | |
|---|---|
| Configuration | Console |
| Printing process | 4-drum dry electrostatic transfer system with internal transfer belt |
| Warm-up time | 40 seconds |
| First copy speed: B/W | 5.5 seconds |
| First copy speed: full colour | 7.5 seconds |
| Continuous output speed | 65 ppm |
| Memory: standard | 4 GB |
| Memory: maximum | 4 GB |
| HDD: standard | 640 GB |
| HDD: maximum | 640 GB |
| Weight | 250 kg |
| Dimensions: W x D x H | 750 x 880 x 1,225 mm |
| Power source | 220 - 240 V, 50 - 60 Hz |
| COPIER | |
| Multiple copying | Up to 9,999 copies |
| Resolution | 600 x 600 dpi |
| Zoom | From 25% to 400% in 1% steps |
| PRINTER | |
| CPU | Intel® Apollo Lake Processor 1.6 GHz |
| Printer language: standard | PCL5c, PCL6, PostScript 3 (emulation), PDF direct (emulation) |
| Printer language: option | Genuine Adobe® PostScript®3™, IPDS, PDF Direct from Adobe® |
| Print resolution - Maximum: | 1,200 x 4,800 dpi |
| Network interface: standard | Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host Type A, USB Device I/F Type B, Bluetooth, Wireless LAN (IEEE 802.11 b/g/n), USB Host I/F, SD slot, NFC tag, USB Device (TypeB:1Port) |
| Network interface: option | Bi-directional IEEE 1284, Wireless LAN (IEEE 802.11a/b/g/n), RJ45 I/F (Only Copy connect), Ethernet Print only RJ-45 network port |
| Network protocol | TCP/IP (IP v4, IP v6) |
| Windows® environments | Windows® 7/8.1/10, Windows® Server 2008/2012/2012R2/2016, Windows® Server 2019 |
| Mac OS environments | Macintosh OS X v10.12 or later |
| UNIX environments | UNIX Sun® Solaris, HP-UX, SCO OpenServer, RedHat® Linux, IBM® AIX, XenDesktop, Citrix XenApp |
| SAP® environments | SAP® R/3®, SAP® S/4® |
| SCANNER | |
| Scanning: B/W | 120 ipm (simplex)/240 ipm (duplex) |
| Scanning: full colour | 120 ipm (simplex)/240 ipm (duplex) |
| Resolution: maximum | 1,200 dpi |
| Bundled drivers | Network TWAIN |
| Compression method | BW: TIFF (MH, MR, MMR, JBIG2), Grayscale - Colour: JPEG |
| File formats | Single Page TIFF, Single page JPEG, Single page PDF, Single page High compression PDF, Single page PDF/A, Multi page TIFF, Multi page PDF, Multi page High compression PDF, Multi page PDF/A |
| Scan modes | E-mail, Folder, USB, SD Card, URL, FTP, SMB |
| FAX | |
| Circuit | PSTN, PBX |
| Compatibility | ITU-T (CCITT) G3 |
| Transmission speed | G3: approximately 2 seconds (200 x 100 dpi, JBIG, ITUT #1 chart TTI off, memory transmission), G3: approximately 3 seconds (200 x 100 dpi, MMR, ITUT #1 chart TTI off, memory transmission) |
| Modem speed: maximum | 33.6 Kbps |
| Resolution | Standard mode: 8 x 3.85 line⁄mm, 200 x 100 dpi, Detail mode: 8 x 7.7 line⁄mm, 200 x 200 dpi, Super fine mode: 8 x 15.4 line⁄mm, 16 x 15.4 line⁄mm, 400 x 400 dpi (with optional SAF memory) |
| Compression method | MH, MR, MMR, JBIG |
| Page memory size | Standard: 4 MB, With optional SAF memory: 8 MB |
| SAF memory size | Standard: 4 MB (approximately 320 pages), Optional: 60 MB (approximately 4,800 pages) |
| Memory backup | 1 hour(s) |
| PAPER HANDLING | |
| Recommended paper size | SRA3+, SRA3, A3, A4, A5, A6, B4, B5, B6 |
| Paper input: standard | 3,700 sheets |
| Paper input: bypass | 100 sheets |
| Paper input: maximum | 8,100 sheets |
| Paper output: standard | 500 sheets |
| Paper output: max. | 3,500 sheets |
| Paper weight - Trays | 52.3 - 256 g̸ m² |
| Paper weight - Bypass | 52.3 - 300 g̸ m² |
| Paper weight - Duplex | 52.3 - 256 g̸ m² |
| ECOLOGY | |
| Power consumption: max. | Less than 2,400 W |
| Power consumption: sleep | 0.79 W |
| TEC* | 1.2 kWh⁄week |
| CONSUMABLES | |
| Toner (black) | 47,000 prints |
| Toner (cyan) | 26,000 prints |
| Toner (magenta) | 26,000 prints |
| Toner (yellow) | 26,000 prints |
Specifications and images are provided for general reference only and may vary by configuration, revision or region. They do not form part of any offer or contract. Contact us to confirm exact specifications, availability and pricing for your requirement.
