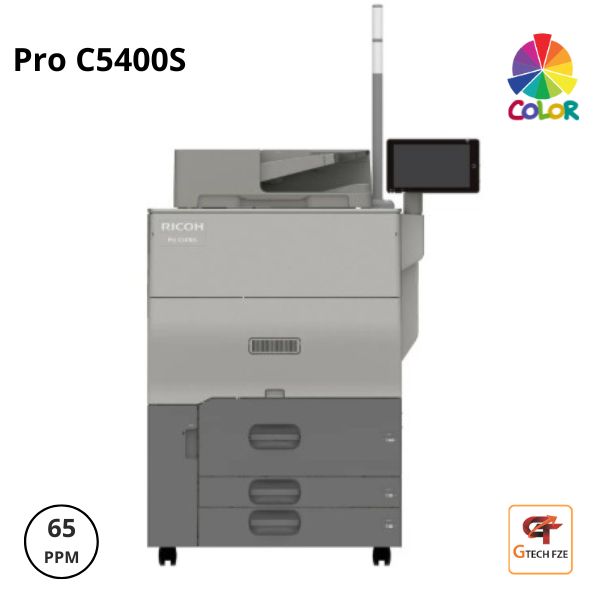

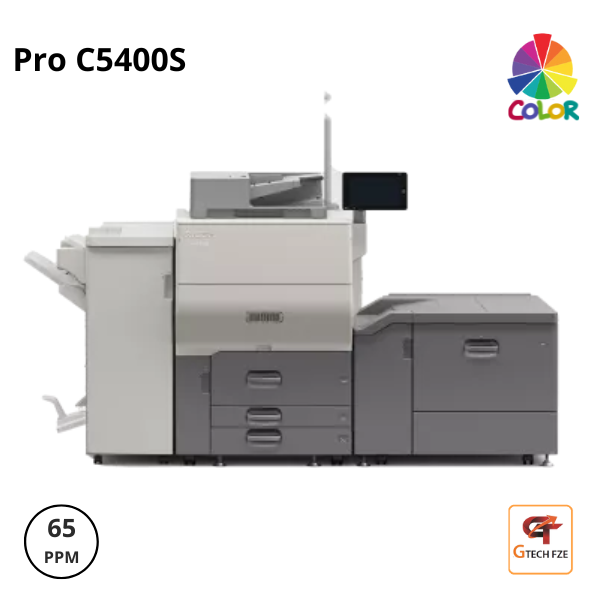

Ricoh Pro C5400 Series

A cover for the platen glass. No automated feeding to scan and copy documents.

Dimensions (W x D x H): 561 x 497 x 63.8 mm
Weight: 2.3 kg or less

High-capacity single-pass document feeder that enhances productivity. It can effortlessly scan smaller documents, including business cards. Paper capacity
250 sheets—81.4 g/m² or less than 25 mm Scan speed (A4 LEF, 200 dpi, 300 dpi)
150 ipm—simplex
300 ipm—duplex
Supported original sizes
51–297 mm x 89–432 mm
Original weight
Simplex:
38–220 g/m²―Larger than A6
64–220 g/m²―A6 or less
Duplex:
52.3–220 g/m²—Larger than A6
64–220 g/m²—A6 or less Physical dimensions (W x D x H) 587 x 520 x 175 mm
Weight
14.9 kg or less
Power consumption
90 W or less

Optional side Large Capacity Input Tray significantly increasing the capacity of the device.

Capacity: 4,400 sheets—0.10 mm paper thickness; 4,000 sheets—0.11 mm paper thickness
Paper size: A4 LEF, B5 LEF; B4, A4 SEF―with 8 1/2" x 14" Paper Size Tray Type S18
Paper weight: 52.3–216 g/m²
Dimensions (W x D x H): 352 x 540 x 625 mm
Weight: 22 kg or less
Power consumption: 50 W

Enables feeding of A4 SEF and B4 paper through a Large Capacity Input Tray (LCIT).

Capacity: 2,500 sheets―with 0.1 mm paper thickness
Paper size: A4 SEF, B4
Paper weight: 52.3–216 g/m²
Dimensions (W x D x H): 148 x 540 x 625 mm
Weight: 5 kg

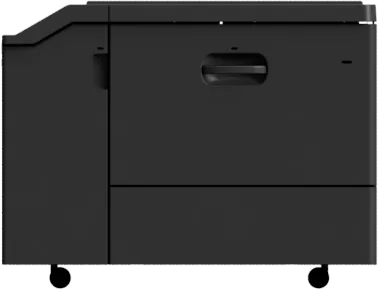

Optional Large Capacity Input Tray significantly increasing the capacity of the device.

Capacity: 2,200 sheets—0.10 mm paper thickness; 2,000 sheets—0.11 mm paper thickness
Paper size: A5 SEF/LEF–A3_SEF, HLT SEF/LEF–13” x 19.2”, postcard (100 mm width), A6 SEF, B6 SEF
Custom size: 100–330.2 mm x 139.7–487.7 mm
Paper weight: 52.3–300 g/m²
Dimensions (W x D x H): 869 x 730 x 658 mm
Weight: 83 kg or less
Power consumption: 85 W or less

An optional tray for a Large Capacity Tray (LCT) to feed banner sheet paper.
Note: SR4000 or SR5000 Series Output Tray for Banner Sheet Tray Type S6 is required for banner sheet output. Capacity: 250 sheets
Paper size: 90–330.2 mm x 139.7–1,300 mm
Note: When feeding 487.8 mm or longer, the minimum width is 210 mm. Only one sheet can be fed between 700.1–1,300 mm, but the feeding quality is not guaranteed.
Paper weight: 52.3–300 g/m²
Dimensions (W x D x H): 516 x 718 x 135 mm
Weight: 1.98 kg

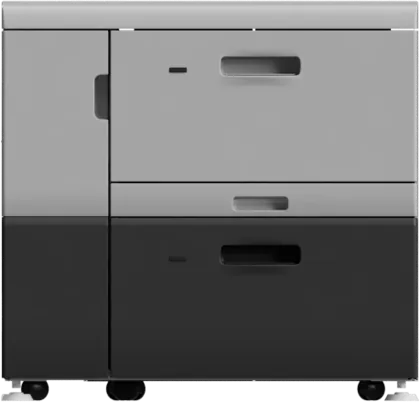

Optional Large Capacity Tray significantly increasing the capacity of the device. This option features a vacuum-feed mechanism for excellent paper feeding accuracy. Note: Depending on the mainframe, up to three Vacuum-Feed LCIT RT5150 units can be configured. A Bridge Unit BU5010 may be required between each unit when more than one Vacuum-Feed LCIT RT5150 is connected. Some mainframes require a Bridge Unit BU5040 as a mandatory option. Specifications and supported sub-options are dependent on the mainframe.

Capacity: 4,400 sheets—0.11 mm paper thickness; 4,840 sheets—0.1 mm paper thickness
Paper size: A5–13" x 19.2"
Custom size: 100–330.2 mm x 139.7–487.7 mm
Paper weight: 40–470 g/m²
Note: Only for Trays 3 and 4. Weight above 400 g/m² not supported in Trays 5, 6, 7, and 8 since the Bridge Unit doesn’t support over 400 g/m². Supported paper weight is dependent on the mainframe.
Paper transfer method: Air pickup
Dimensions (W x D x H) : 1,054 x 730 x 1,000 mm; 1,290 x 730 x 1,000 mm—with Vacuum-Feed Banner Sheet Tray Type S9 attached; 1,519 x 730 x 1,000 mm—with Extension Vacuum-Feed Banner Sheet Tray Type S14 attached
Weight: 230 kg
Power source: 220–240 V
Power consumption: 1,000 W

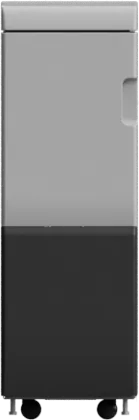

Mandatory option to connect the Vacuum-Feed LCIT RT5150 to select mainframes.

Jam detection: Supported
Power source: From mainframe
Dimensions (W x D x H): 225 x 730 x 1,000 mm
Weight: 41 kg

Enables feeding of up to 700 mm banner sheet pages for a wider variety of applications. This option is attached to the upper tray of the Vacuum-Feed LCIT RT5150. Capacity: 730 sheets
Paper size: 210–330.2 mm x 420–700 mm
Paper weight: 52.3–300 g/m²
Note: Supported paper weight depends on mainframe.
Power source: From LCIT
Dimensions (W x D x H): 1,290 x 730 x 1,000 mm—when attached to LCT; 1,290 x 730 x 1,302 mm—with cover open
Weight: 7 kg or less

Enables users to feed carbonless paper from the Vacuum-Feed LCIT RT5150.

Feeds up to 550 sheets of uncoated paper stocks for expanded system capacity and document output types. Capacity: 550 sheets
Paper size: A5–13" x 19.2"
Custom size: 100 x 330.2 x 139.7 x 487.7 mm
Paper weight: 52.3–216 g/m²
Power source: From mainframe
Paper volume sensors: In 4 steps, near end 0%, 50%, 100%
Dimensions (W x D x H): 690 x 561 x 210 mm
Weight: 20 kg or less

Required to configure the Multi-Bypass Tray BY5020 with the Vacuum-Feed LCIT RT5150.

Extender for Multi-Bypass Tray BY5020 to accommodate oversize prints up to 700 mm in size and up to 216 g/m² in weight. Note: SR4000 or SR5000 Series Output Tray for Banner Sheet Tray Type S6 is required for banner sheet output.
Capacity: 500 sheets Paper size: A5–A3, 13” x 19.2”
Custom size: 100–330.2 x 139.7–700 mm
Note: Only one sheet can be fed between 700.1–1,300 mm, but the feeding quality is not guaranteed. When feeding 487.8 mm or longer, the minimum width is 210 mm.
Paper weight: 52.3–216 g/m²
Dimensions (W x D x H): 1,090 x 561 x 210 mm
Weight: 9.5 kg or less

Extender for the bypass tray to accommodate oversize prints up to 700 mm.
Note: SR4000 or SR5000 Series Output Tray for Banner Sheet Tray Type S6 is required for banner sheet output. Capacity: 50 sheets—100.9 g/m²; 25 sheets—150 g/m²; 10 sheets—300 g/m²
Paper size: 100–330.2 mm x 487.8–700 mm
Note: Only one sheet can be fed between 700.1–1,300 mm, but the feeding quality is not guaranteed. When feeding 487.8 mm or longer, the minimum width is 210 mm.
Paper weight: 52.3–300 g/m²
Dimensions (W x D x H): 350 x 220 x 360 mm; 485 x 220 x 360 mm―with tray open
Weight: 1.1 kg or less

Converts the standard paper input tray from a tandem A4 tray to an A3 tray. Capacity: 1,000 sheets
Paper size: A5–A3, B5–B4
Dimensions (W x D x H): 520 x 514 x 207 mm
Weight: 11 kg or less

Supports SPDF as a double feed detection unit preventing more than one page from being scanned at a time.

Recommended to be used when loading tab stock in the paper trays.
Note: Can be used in either Tray 2 or Tray 3, but not both.

A basic tray for printed and copied output when no advanced finishing—including stapling, hole punching, folding, or booklet making—is required. Output is delivered face down in a neat stack. Capacity: 500 sheets
Paper size: A6–13” x 19.2”
Custom size: 90–330.2 mm x 139.7–487.7 mm
Paper weight: 52.3–360 g/m²
Dimensions (W x D x H): 350 x 513 x 192 mm
Weight: 2.2 kg or less

Reduces the natural paper curl that can occur, delivering sheets with optimal flatness. Ideal for applications that are frequently printed with high toner coverage on thin paper and paper with long grain. Paper size: Up to 330.2 x 487.7 mm (13" x 19.2")
Paper weight: 52–300 g/m²
Paper jam detection: Supported
Decurler functions: Pressure adjustment; 5 steps—from operation panel
Curl type: Back curl, Face curl—manual switching
Purge function (stack capability): Not supported
Power source: From mainframe
Dimensions (W x D x H): 376 x 885 x 1,140 mm
Weight: 30 kg or less
Power consumption: 30 W

Cools down printed paper to prevent toner adhesion or sticking before the paper is stacked or sent to the finishers. Recommended for printing on coated stocks, or with high toner coverage. Paper weight: 40–470 g/m²
Note: Paper weight support dependent on mainframe.
Power source: 220–240 V, 50–60 Hz, 1.5 A
Power consumption: Less than 200 W
Dimensions (W x D x H): 330 x 730 x 1,010 mm
Weight: Less than 90 kg

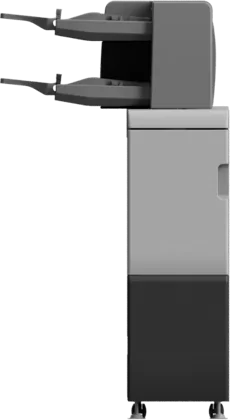

Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals. Capacity: 400 sheets (200 sheets x 2 trays)
Paper height: 22 mm
Paper size: A5–13" x 19.2"
Custom size: 139.7–330.2 mm x 139.7–487.7 mm
Available size: 139.7–1,260 mm (length), 100–330.2 mm (width)
Paper weight: 52.3–350 g/m² with plain paper; 105.1—350 g/m² with coated paper
Dimensions (W x D x H): 740 x 730 x 1,350 mm; width for connecting part is 330 mm
Weight: 60 kg
Power source: From mainframe
Power consumption: 110 W, excluding peak consumption

When attached to the cover interposer, detects double feeds from the interposer. Dimensions (W x D x H): 126 x 317 x 56 mm
Weight: 0.4 kg

Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.

Folding types:
Single sheet mode
Half-fold, Z-fold, Letter fold-in, Letter fold out
Multiple sheet mode (up to 3 sheets)
Letter fold-in, Letter fold out

Paper size: A4—13" x 19.2"
Paper weight:
64–150 g/m²—single sheet mode
64–80 g/m²—multiple sheet mode

Power source: External 220–240 V, 50/60 Hz
Power consumption: 60 W or less
Dimensions (W x D x H): 209 x 730 x 1,000 mm
Weight: 45 kg or less

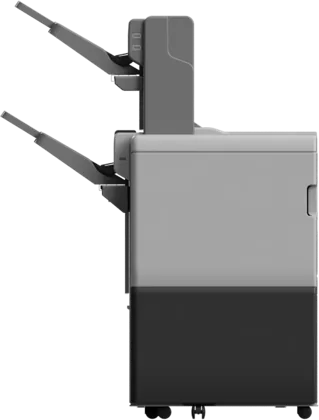

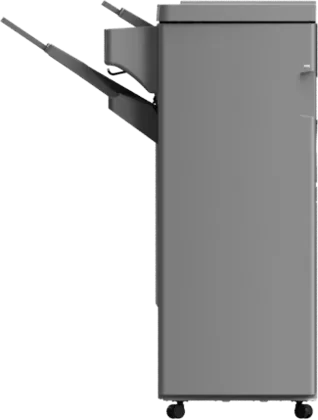

Provides multi-position stapling and optional hole punching. Capacity: 3,250 sheets
Paper size: A3–A5, B6, A6, SRA3, 13" x 19.2"
Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 52–220 g/m²
Staple capacity: 65 sheets
Staple positions: Top, bottom, 2 staple, top slant
Staple paper weight: 52–105 g/m²
Optional punch unit PU5030 available
Optional output jogger available
Dimensions (W x D x H): 657 x 730 x 980 mm with all extendable trays closed; 760 x 730 x 980 mm—with all extendable trays opened
Weight: 40 kg or less
Power consumption: 67 W Note: Supported paper size is dependent on the mainframe.

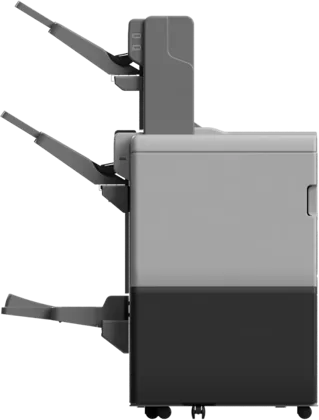

Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Punch option is available. Capacity: 3,250 sheets Paper size:
A3 SEF–A5, B6 SEF, A6 SEF, SRA3, 13” x 19.2”
Custom size—90 x 139.7 mm–330.2 x 487.7 mm
Note: Supported paper size is dependent on the mainframe.
Paper weight: Without Z-fold
52.3–220 g/m² Staple capacity: 2–65 sheets—A4, A3, B5, B4
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: Plain paper—52.3–105 g/m²: Coated paper—81.4–104.7 g/m²
Saddle stitch staple: 20 sheets
Optional punch unit PU5030 available
Optional output jogger available
Dimensions (W x D x H): 657 x 730 x 980 mm—with all extendable trays closed; 760 x 730 x 980 mm—with all extendable trays opened
Weight: 60 kg
Power consumption: 67 W

Required for banner sheet output for selected Ricoh finishers and booklet finishers. Capacity: 50 sheets (300 g/m², 330 x 700 mm)
Paper size: width 210–330.2 mm, length 420–700 mm
Paper weight 52.3–300 g/m²

A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs. Note: Supported paper specifications are determined by the attached mainframe.

Paper size: A3 SEF, B4 SEF, A4 SEF, A4 LEF, B5 LEF, A5 LEF, 12” x 18", 13” x 19.2”
Dimensions (W x D x H): 169 x 539 x 203 mm—including jogger operating range
Weight: 2 kg or less
Power consumption: 15 W or less

Installed in a finisher to reduce the occurrence of blocking on jobs printed with high toner coverage.

Enables staple-free binding of documents. Ricoh's water-based stapleless binding technology reduces need to restock normal metal staples, increases safety, and makes paper recycling easier.

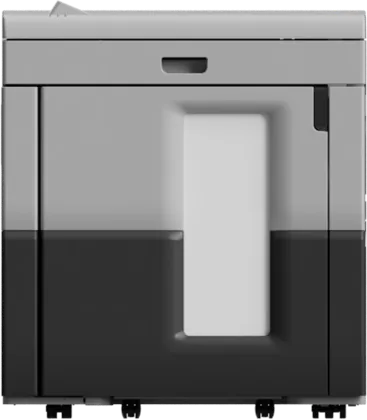

Allows to handle large volume of output and move it with a roll-away cart that is included as standard. Up to 2 stackers can be configured in one system. An additional roll-away cart is available. Proof tray:
Stack capacity: 250 sheets
Paper size: A6–13" x 19.2"
Paper weight:40–470 g/m²
Note: 487–1,260 mm banner sheet supported when finisher is not attached. Actual supported paper weight is dependent on the mainframe.

Shift tray:
Stack capacity: 5,000 sheets—A4–13" x 19.2"; 2,500 sheets—B5
Paper size: 139.7 x 139.7 mm–331 x 488 mm (13" x 19.2")
Paper weight: 40–470 g/m²
Note: Actual supported paper weight is dependent on the mainframe. Output jogger: Standard
Roll-away cart: Includes 1 cart. Additional cart is optional.
Door lock: Optional; includes a bracket for the lock
Dimensions (W x D x H): 900 x 730 x 1,010 mm
Weight: 131 kg or less: 135 kg or less with roll-away cart
Power source: 220–240 V, 50–60 Hz, 0.8 Amps
Power consumption: Less than 120 W

An additonal roll-away cart for the High-Capacity Stacker SK5040. Weight: 15 kg

Provides 100-sheet stapling and optional hole punching. Paper size:
Max. 330.2 x 487.7 mm (13" x 19.2"); min. 139.7 x 139.7 mm—without Z-fold
330.2 x 1,260 mm—with banner sheet output tray
Max. 304 x 457 mm; min. 139.7 x 139.7 mm—with Z-fold Paper weight:
40–350 g/m² (upper tray), 40–470 g/m² (lower tray)—without Z-fold
64–105 g/m² —with Z-fold
Note: Supported paper weight is dependent on the mainframe. Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: 64–80 g/m² (without Z-fold); 64–105 g/m² (with Z-fold)
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 135 kg
Power source: 220–240 V ±10%, 50/60 Hz
Power consumption: 150 W

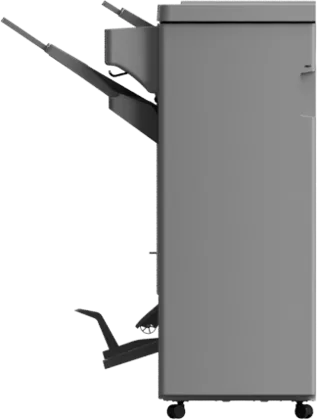

Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Comes with dual shift trays for ‘non-stop delivery.’ Punch option is available. Capacity: 3,500 sheets (dual shift tray) Paper size:
Without Z-fold
Max. 330.2 x 487.7 mm (13" x 19.2"), min. 139.7 x 139.7 mm
330.2 x 1,260 mm—with banner sheet output tray
With Z-fold
Max. 304 x 457 mm, min. 139.7 x 139.7 mm Paper weight:
Without Z-fold
40–350 g/m² (upper tray), 40–470 g/m² (lower tray)
With Z-fold
64–105 g/m²
Note: Supported paper weight is dependent on the mainframe. Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: without Z-fold: 64–80 g/m²; with Z-fold: 64–105 g/m²
Saddle stitch staple: 30 sheets (120-page booklet) with 80 g/m² paper
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 160 kg
Power consumption: 150 W

Required for banner sheet output for selected Ricoh finishers and booklet finishers. Capacity: 200 sheets (0.11mm/sheet)
Paper size: width 210–330.2 mm, length 420–700 mm
Paper weight: 52.3–300.0 g/m²

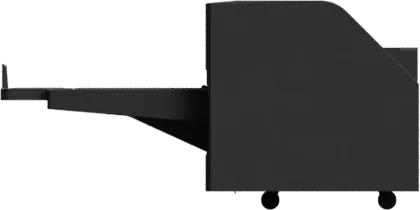

Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5120 is required in order to attach this option. Stacker full detection: Supported
Limitless stack: Supported
Note: This setting is not user configurable; it needs to be configured by a Ricoh service engineer.
Power source: External, universal power supply, 100–240 V, 50 Hz
Power consumption: 75 W—average; 250 W—maximum
Dimensions (W x D x H): 1,115 x 591 x 555 mm
Weight: 75 kg

Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.

Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.

Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages. Number of punch: 2 or 3 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m²
Performance: Same as engine speed

Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages. Number of punch: 2 or 4 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m²
Performance: Same as engine speed

Enables the inline connectivity of a Ricoh mainframe with a selected third party finishing option. Dimensions (W x D x H): 265 x 253 x 136 mm
Weight: 0.55 kg

Required to connect a third party Plockmatic finisher to the mainframe. Paper weight: 64–300 g/m²
Power source: From mainframe
Dimensions (W x D x H): 330 x 740 x 1,010 mm
Weight: 40 kg or less

Dedicated fusing unit to enhance envelope printing productivity.

Supported paper
Envelope only—other paper types have different fusing conditions and may cause fusing issues or wrinkling.

An embedded colour controller that is based on the EFI Fiery FS600 platform and is targeted towards in-plants and light volume production operations. It delivers superior out-of-the-box colour and intuitive job management tools to produce professional documents in less time.

An external colour controller that is based on the EFI Fiery FS600 Pro platform and is targeted at Print for Pay and mid-volume production environments. It delivers superior out-of-the-box colour and intuitive job management tools to produce professional documents in less time.

Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.

Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.

Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.

Allows users to save copy and print jobs stored on the document server to a computer.

Allows two mainframes to be connected for simultaneous copying of the same job.

Enables fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320-page memory.

Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.

Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax.

Additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.

Additional G3 line. Up to two units can be installed.

Enables WiFi connectivity and wireless printing.

Used for searching and registering media. Displays media options with similar printing setting characteristics that are already registered in the paper catalog and the customer paper list.

A cover for the platen glass. No automated feeding to scan and copy documents.

Dimensions (W x D x H): 561 x 497 x 63.8 mm
Weight: 2.3 kg or less

High-capacity single-pass document feeder that enhances productivity. It can effortlessly scan smaller documents, including business cards. Paper capacity
250 sheets—81.4 g/m² or less than 25 mm Scan speed (A4 LEF, 200 dpi, 300 dpi)
150 ipm—simplex
300 ipm—duplex
Supported original sizes
51–297 mm x 89–432 mm
Original weight
Simplex:
38–220 g/m²―Larger than A6
64–220 g/m²―A6 or less
Duplex:
52.3–220 g/m²—Larger than A6
64–220 g/m²—A6 or less Physical dimensions (W x D x H) 587 x 520 x 175 mm
Weight
14.9 kg or less
Power consumption
90 W or less

Optional side Large Capacity Input Tray significantly increasing the capacity of the device.

Capacity: 4,400 sheets—0.10 mm paper thickness; 4,000 sheets—0.11 mm paper thickness
Paper size: A4 LEF, B5 LEF; B4, A4 SEF―with 8 1/2" x 14" Paper Size Tray Type S18
Paper weight: 52.3–216 g/m²
Dimensions (W x D x H): 352 x 540 x 625 mm
Weight: 22 kg or less
Power consumption: 50 W

Enables feeding of A4 SEF and B4 paper through a Large Capacity Input Tray (LCIT).

Capacity: 2,500 sheets―with 0.1 mm paper thickness
Paper size: A4 SEF, B4
Paper weight: 52.3–216 g/m²
Dimensions (W x D x H): 148 x 540 x 625 mm
Weight: 5 kg

Optional Large Capacity Input Tray significantly increasing the capacity of the device.

Capacity: 2,200 sheets—0.10 mm paper thickness; 2,000 sheets—0.11 mm paper thickness
Paper size: A5 SEF/LEF–A3_SEF, HLT SEF/LEF–13” x 19.2”, postcard (100 mm width), A6 SEF, B6 SEF
Custom size: 100–330.2 mm x 139.7–487.7 mm
Paper weight: 52.3–300 g/m²
Dimensions (W x D x H): 869 x 730 x 658 mm
Weight: 83 kg or less
Power consumption: 85 W or less

An optional tray for a Large Capacity Tray (LCT) to feed banner sheet paper.
Note: SR4000 or SR5000 Series Output Tray for Banner Sheet Tray Type S6 is required for banner sheet output. Capacity: 250 sheets
Paper size: 90–330.2 mm x 139.7–1,300 mm
Note: When feeding 487.8 mm or longer, the minimum width is 210 mm. Only one sheet can be fed between 700.1–1,300 mm, but the feeding quality is not guaranteed.
Paper weight: 52.3–300 g/m²
Dimensions (W x D x H): 516 x 718 x 135 mm
Weight: 1.98 kg

Optional Large Capacity Tray significantly increasing the capacity of the device. This option features a vacuum-feed mechanism for excellent paper feeding accuracy. Note: Depending on the mainframe, up to three Vacuum-Feed LCIT RT5150 units can be configured. A Bridge Unit BU5010 may be required between each unit when more than one Vacuum-Feed LCIT RT5150 is connected. Some mainframes require a Bridge Unit BU5040 as a mandatory option. Specifications and supported sub-options are dependent on the mainframe.

Capacity: 4,400 sheets—0.11 mm paper thickness; 4,840 sheets—0.1 mm paper thickness
Paper size: A5–13" x 19.2"
Custom size: 100–330.2 mm x 139.7–487.7 mm
Paper weight: 40–470 g/m²
Note: Only for Trays 3 and 4. Weight above 400 g/m² not supported in Trays 5, 6, 7, and 8 since the Bridge Unit doesn’t support over 400 g/m². Supported paper weight is dependent on the mainframe.
Paper transfer method: Air pickup
Dimensions (W x D x H) : 1,054 x 730 x 1,000 mm; 1,290 x 730 x 1,000 mm—with Vacuum-Feed Banner Sheet Tray Type S9 attached; 1,519 x 730 x 1,000 mm—with Extension Vacuum-Feed Banner Sheet Tray Type S14 attached
Weight: 230 kg
Power source: 220–240 V
Power consumption: 1,000 W

Mandatory option to connect the Vacuum-Feed LCIT RT5150 to select mainframes.

Jam detection: Supported
Power source: From mainframe
Dimensions (W x D x H): 225 x 730 x 1,000 mm
Weight: 41 kg

Enables feeding of up to 700 mm banner sheet pages for a wider variety of applications. This option is attached to the upper tray of the Vacuum-Feed LCIT RT5150. Capacity: 730 sheets
Paper size: 210–330.2 mm x 420–700 mm
Paper weight: 52.3–300 g/m²
Note: Supported paper weight depends on mainframe.
Power source: From LCIT
Dimensions (W x D x H): 1,290 x 730 x 1,000 mm—when attached to LCT; 1,290 x 730 x 1,302 mm—with cover open
Weight: 7 kg or less

Enables users to feed carbonless paper from the Vacuum-Feed LCIT RT5150.

Feeds up to 550 sheets of uncoated paper stocks for expanded system capacity and document output types. Capacity: 550 sheets
Paper size: A5–13" x 19.2"
Custom size: 100 x 330.2 x 139.7 x 487.7 mm
Paper weight: 52.3–216 g/m²
Power source: From mainframe
Paper volume sensors: In 4 steps, near end 0%, 50%, 100%
Dimensions (W x D x H): 690 x 561 x 210 mm
Weight: 20 kg or less

Required to configure the Multi-Bypass Tray BY5020 with the Vacuum-Feed LCIT RT5150.

Extender for Multi-Bypass Tray BY5020 to accommodate oversize prints up to 700 mm in size and up to 216 g/m² in weight. Note: SR4000 or SR5000 Series Output Tray for Banner Sheet Tray Type S6 is required for banner sheet output.
Capacity: 500 sheets Paper size: A5–A3, 13” x 19.2”
Custom size: 100–330.2 x 139.7–700 mm
Note: Only one sheet can be fed between 700.1–1,300 mm, but the feeding quality is not guaranteed. When feeding 487.8 mm or longer, the minimum width is 210 mm.
Paper weight: 52.3–216 g/m²
Dimensions (W x D x H): 1,090 x 561 x 210 mm
Weight: 9.5 kg or less

Extender for the bypass tray to accommodate oversize prints up to 700 mm.
Note: SR4000 or SR5000 Series Output Tray for Banner Sheet Tray Type S6 is required for banner sheet output. Capacity: 50 sheets—100.9 g/m²; 25 sheets—150 g/m²; 10 sheets—300 g/m²
Paper size: 100–330.2 mm x 487.8–700 mm
Note: Only one sheet can be fed between 700.1–1,300 mm, but the feeding quality is not guaranteed. When feeding 487.8 mm or longer, the minimum width is 210 mm.
Paper weight: 52.3–300 g/m²
Dimensions (W x D x H): 350 x 220 x 360 mm; 485 x 220 x 360 mm―with tray open
Weight: 1.1 kg or less

Converts the standard paper input tray from a tandem A4 tray to an A3 tray. Capacity: 1,000 sheets
Paper size: A5–A3, B5–B4
Dimensions (W x D x H): 520 x 514 x 207 mm
Weight: 11 kg or less

Supports SPDF as a double feed detection unit preventing more than one page from being scanned at a time.

Recommended to be used when loading tab stock in the paper trays.
Note: Can be used in either Tray 2 or Tray 3, but not both.

A basic tray for printed and copied output when no advanced finishing—including stapling, hole punching, folding, or booklet making—is required. Output is delivered face down in a neat stack. Capacity: 500 sheets
Paper size: A6–13” x 19.2”
Custom size: 90–330.2 mm x 139.7–487.7 mm
Paper weight: 52.3–360 g/m²
Dimensions (W x D x H): 350 x 513 x 192 mm
Weight: 2.2 kg or less

Reduces the natural paper curl that can occur, delivering sheets with optimal flatness. Ideal for applications that are frequently printed with high toner coverage on thin paper and paper with long grain. Paper size: Up to 330.2 x 487.7 mm (13" x 19.2")
Paper weight: 52–300 g/m²
Paper jam detection: Supported
Decurler functions: Pressure adjustment; 5 steps—from operation panel
Curl type: Back curl, Face curl—manual switching
Purge function (stack capability): Not supported
Power source: From mainframe
Dimensions (W x D x H): 376 x 885 x 1,140 mm
Weight: 30 kg or less
Power consumption: 30 W

Cools down printed paper to prevent toner adhesion or sticking before the paper is stacked or sent to the finishers. Recommended for printing on coated stocks, or with high toner coverage. Paper weight: 40–470 g/m²
Note: Paper weight support dependent on mainframe.
Power source: 220–240 V, 50–60 Hz, 1.5 A
Power consumption: Less than 200 W
Dimensions (W x D x H): 330 x 730 x 1,010 mm
Weight: Less than 90 kg

Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals. Capacity: 400 sheets (200 sheets x 2 trays)
Paper height: 22 mm
Paper size: A5–13" x 19.2"
Custom size: 139.7–330.2 mm x 139.7–487.7 mm
Available size: 139.7–1,260 mm (length), 100–330.2 mm (width)
Paper weight: 52.3–350 g/m² with plain paper; 105.1—350 g/m² with coated paper
Dimensions (W x D x H): 740 x 730 x 1,350 mm; width for connecting part is 330 mm
Weight: 60 kg
Power source: From mainframe
Power consumption: 110 W, excluding peak consumption

When attached to the cover interposer, detects double feeds from the interposer. Dimensions (W x D x H): 126 x 317 x 56 mm
Weight: 0.4 kg

Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.

Folding types:
Single sheet mode
Half-fold, Z-fold, Letter fold-in, Letter fold out
Multiple sheet mode (up to 3 sheets)
Letter fold-in, Letter fold out

Paper size: A4—13" x 19.2"
Paper weight:
64–150 g/m²—single sheet mode
64–80 g/m²—multiple sheet mode

Power source: External 220–240 V, 50/60 Hz
Power consumption: 60 W or less
Dimensions (W x D x H): 209 x 730 x 1,000 mm
Weight: 45 kg or less

Provides multi-position stapling and optional hole punching. Capacity: 3,250 sheets
Paper size: A3–A5, B6, A6, SRA3, 13" x 19.2"
Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 52–220 g/m²
Staple capacity: 65 sheets
Staple positions: Top, bottom, 2 staple, top slant
Staple paper weight: 52–105 g/m²
Optional punch unit PU5030 available
Optional output jogger available
Dimensions (W x D x H): 657 x 730 x 980 mm with all extendable trays closed; 760 x 730 x 980 mm—with all extendable trays opened
Weight: 40 kg or less
Power consumption: 67 W Note: Supported paper size is dependent on the mainframe.

Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Punch option is available. Capacity: 3,250 sheets Paper size:
A3 SEF–A5, B6 SEF, A6 SEF, SRA3, 13” x 19.2”
Custom size—90 x 139.7 mm–330.2 x 487.7 mm
Note: Supported paper size is dependent on the mainframe.
Paper weight: Without Z-fold
52.3–220 g/m² Staple capacity: 2–65 sheets—A4, A3, B5, B4
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: Plain paper—52.3–105 g/m²: Coated paper—81.4–104.7 g/m²
Saddle stitch staple: 20 sheets
Optional punch unit PU5030 available
Optional output jogger available
Dimensions (W x D x H): 657 x 730 x 980 mm—with all extendable trays closed; 760 x 730 x 980 mm—with all extendable trays opened
Weight: 60 kg
Power consumption: 67 W

Required for banner sheet output for selected Ricoh finishers and booklet finishers. Capacity: 50 sheets (300 g/m², 330 x 700 mm)
Paper size: width 210–330.2 mm, length 420–700 mm
Paper weight 52.3–300 g/m²

A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs. Note: Supported paper specifications are determined by the attached mainframe.

Paper size: A3 SEF, B4 SEF, A4 SEF, A4 LEF, B5 LEF, A5 LEF, 12” x 18", 13” x 19.2”
Dimensions (W x D x H): 169 x 539 x 203 mm—including jogger operating range
Weight: 2 kg or less
Power consumption: 15 W or less

Installed in a finisher to reduce the occurrence of blocking on jobs printed with high toner coverage.

Enables staple-free binding of documents. Ricoh's water-based stapleless binding technology reduces need to restock normal metal staples, increases safety, and makes paper recycling easier.

Allows to handle large volume of output and move it with a roll-away cart that is included as standard. Up to 2 stackers can be configured in one system. An additional roll-away cart is available. Proof tray:
Stack capacity: 250 sheets
Paper size: A6–13" x 19.2"
Paper weight:40–470 g/m²
Note: 487–1,260 mm banner sheet supported when finisher is not attached. Actual supported paper weight is dependent on the mainframe.

Shift tray:
Stack capacity: 5,000 sheets—A4–13" x 19.2"; 2,500 sheets—B5
Paper size: 139.7 x 139.7 mm–331 x 488 mm (13" x 19.2")
Paper weight: 40–470 g/m²
Note: Actual supported paper weight is dependent on the mainframe. Output jogger: Standard
Roll-away cart: Includes 1 cart. Additional cart is optional.
Door lock: Optional; includes a bracket for the lock
Dimensions (W x D x H): 900 x 730 x 1,010 mm
Weight: 131 kg or less: 135 kg or less with roll-away cart
Power source: 220–240 V, 50–60 Hz, 0.8 Amps
Power consumption: Less than 120 W

An additonal roll-away cart for the High-Capacity Stacker SK5040. Weight: 15 kg

Provides 100-sheet stapling and optional hole punching. Paper size:
Max. 330.2 x 487.7 mm (13" x 19.2"); min. 139.7 x 139.7 mm—without Z-fold
330.2 x 1,260 mm—with banner sheet output tray
Max. 304 x 457 mm; min. 139.7 x 139.7 mm—with Z-fold Paper weight:
40–350 g/m² (upper tray), 40–470 g/m² (lower tray)—without Z-fold
64–105 g/m² —with Z-fold
Note: Supported paper weight is dependent on the mainframe. Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: 64–80 g/m² (without Z-fold); 64–105 g/m² (with Z-fold)
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 135 kg
Power source: 220–240 V ±10%, 50/60 Hz
Power consumption: 150 W

Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Comes with dual shift trays for ‘non-stop delivery.’ Punch option is available. Capacity: 3,500 sheets (dual shift tray) Paper size:
Without Z-fold
Max. 330.2 x 487.7 mm (13" x 19.2"), min. 139.7 x 139.7 mm
330.2 x 1,260 mm—with banner sheet output tray
With Z-fold
Max. 304 x 457 mm, min. 139.7 x 139.7 mm Paper weight:
Without Z-fold
40–350 g/m² (upper tray), 40–470 g/m² (lower tray)
With Z-fold
64–105 g/m²
Note: Supported paper weight is dependent on the mainframe. Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: without Z-fold: 64–80 g/m²; with Z-fold: 64–105 g/m²
Saddle stitch staple: 30 sheets (120-page booklet) with 80 g/m² paper
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 160 kg
Power consumption: 150 W

Required for banner sheet output for selected Ricoh finishers and booklet finishers. Capacity: 200 sheets (0.11mm/sheet)
Paper size: width 210–330.2 mm, length 420–700 mm
Paper weight: 52.3–300.0 g/m²

Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5120 is required in order to attach this option. Stacker full detection: Supported
Limitless stack: Supported
Note: This setting is not user configurable; it needs to be configured by a Ricoh service engineer.
Power source: External, universal power supply, 100–240 V, 50 Hz
Power consumption: 75 W—average; 250 W—maximum
Dimensions (W x D x H): 1,115 x 591 x 555 mm
Weight: 75 kg

Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.

Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.

Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages. Number of punch: 2 or 3 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m²
Performance: Same as engine speed

Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages. Number of punch: 2 or 4 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m²
Performance: Same as engine speed

Enables the inline connectivity of a Ricoh mainframe with a selected third party finishing option. Dimensions (W x D x H): 265 x 253 x 136 mm
Weight: 0.55 kg

Required to connect a third party Plockmatic finisher to the mainframe. Paper weight: 64–300 g/m²
Power source: From mainframe
Dimensions (W x D x H): 330 x 740 x 1,010 mm
Weight: 40 kg or less

Dedicated fusing unit to enhance envelope printing productivity.

Supported paper
Envelope only—other paper types have different fusing conditions and may cause fusing issues or wrinkling.

An embedded colour controller that is based on the EFI Fiery FS600 platform and is targeted towards in-plants and light volume production operations. It delivers superior out-of-the-box colour and intuitive job management tools to produce professional documents in less time.

An external colour controller that is based on the EFI Fiery FS600 Pro platform and is targeted at Print for Pay and mid-volume production environments. It delivers superior out-of-the-box colour and intuitive job management tools to produce professional documents in less time.

Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.

Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.

Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.

Allows users to save copy and print jobs stored on the document server to a computer.

Allows two mainframes to be connected for simultaneous copying of the same job.

Enables fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320-page memory.

Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.

Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax.

Additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.

Additional G3 line. Up to two units can be installed.

Enables WiFi connectivity and wireless printing.

Used for searching and registering media. Displays media options with similar printing setting characteristics that are already registered in the paper catalog and the customer paper list.
