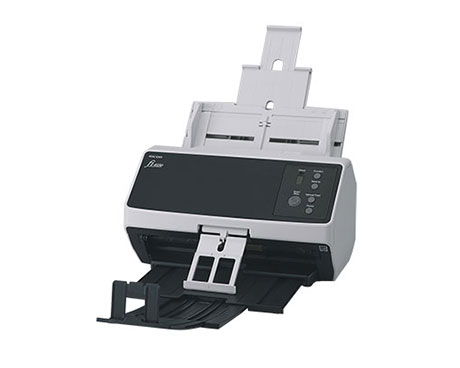

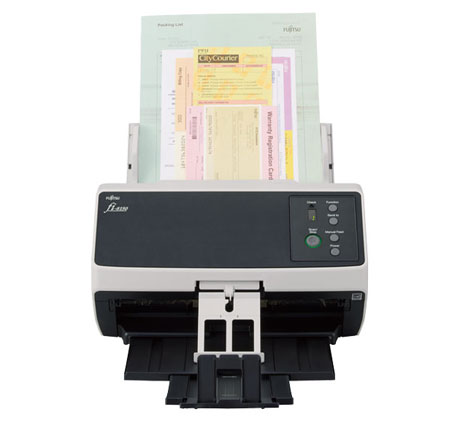

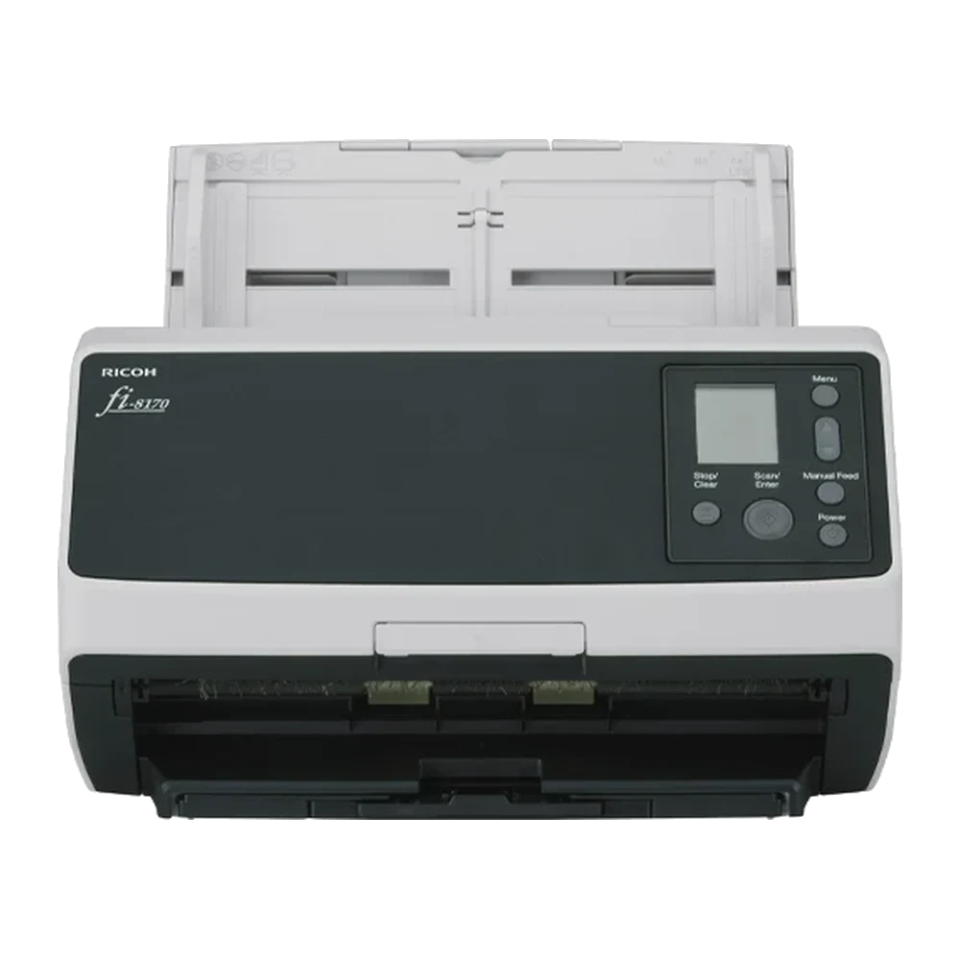

Ricoh fi-8170 Scanner
Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai. Delivered across Abu Dhabi, Sharjah and every emirate, and exported throughout the Middle East and Africa.
Genuine Ricoh hardwareSupplied and serviced by an authorized distributor,
with full manufacturer warranty.
- Scan Speed: Up to 70 ppm (140 ipm for duplex).
- Optical Resolution: 600 dpi.
- Document Size: Up to 8.5 x 240 inches.
- Connectivity: USB 3.2, Ethernet.
- Daily Duty Cycle: Up to 10,000 pages.
- Paper Capacity: 100-sheet automatic document feeder (ADF).
- Duplex Scanning: Supports automatic double-sided scanning.
- Paper Handling: Supports embossed cards and long documents.
- Image Processing: Built-in PaperStream IP software for enhanced image quality.
- Compatibility: Windows and macOS support.
Highlights
The fi-8170 offers an innovative and superior scanning experience. Compact and reliable, the scanner achieves scan speeds of 70 ppm/140 ipm (200/300 dpi, color, A4 portrait), loads up to 100 sheets at a time, and comes equipped with a capability of scanning up to as many as 10,000 sheets a day.
- Scans big volumes with “Automatic Separation Control”
- "Paper Protection" function using Image Monitoring technology and sound technology
- Optimized high-quality image data with "PFU Clear Image Capture"
- Scans variety of documents including passports and booklets
- Color LCD Panel for easy operation
- PaperStream IP and PaperStream Capture providing advanced image processing functions, with PaperStream Capture Pro software as a premium option
- PaperStream ClickScan for ad-hoc use
Product specifications
| Product Name | fi-8170 | |
|---|---|---|
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex | |
| Scanning Speed*1 (A4 Portrait) (Color*2/Grayscale*2/Monochrome*3) |
Simplex | 70 ppm (200/300 dpi) |
| Duplex | 140 ipm (200/300 dpi) | |
| Image Sensor Type | CIS x 2 (front x 1, back x 1) | |
| Light Source | RGB LED x 2 (front x 1, back x 1) | |
| Optical Resolution | 600 dpi | |
| Output Resolution*4 (Color / Grayscale / Monochrome) |
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5 | |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit | |
| Background Colors | White / Black (selectable) | |
| Document Size | Maximum*6 | 215.9 x 355.6 mm (8.5 x 14 in.) |
| Minimum | 48 x 50 mm (1.9 x 2 in.) | |
| Long Page Scanning*7 | 6,096 mm (240 in.) | |
| Paper Weight (Thickness) | Paper | 20 to 465 g/m² (5.3 to 124 lb)*8 |
| Booklet | Less than 7 mm (0.276 in.)*9 | |
| Plastic Card | 1.4 mm (0.055 in.) or less*10 | |
| ADF Capacity*11*12 | 100 sheets (A4 80 g/m² or Letter 20 lb) | |
| Expected Daily Volume*13 | 10,000 sheets | |
| Multifeed Detection | Overlap detection (Ultrasonic sensor), Length detection | |
| Paper Protection | Image monitoring, Sound detection (iSOP)*14 | |
| Interface | USB | USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 |
| Ethernet | 10BASE-T, 100BASE-TX, 1000BASE-T | |
| Power Requirements | AC 100V - 240V 50/60 Hz | |
| Power Consumption | Operating Mode | 28 W or less / 17 W (Eco mode) |
| Sleep Mode | LAN: 2.0 W or less USB: 1.4 W or less |
|
| Auto Standby (Off) Mode | 0.2 W or less | |
| Operating Environment | Temperature | 5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 15 to 80% (Non-condensing) | |
| Environmental Compliance | ENERGY STAR, RoHS | |
| Dimensions (W x D x H)*15 | 300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | |
| Weight | 4 kg (8.8 lb) | |
| Supported Operating System | Windows 11*16, Windows 10*16, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS*17, Linux (Ubuntu)*17 | |
| Software / Drivers | PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver*18, Image Scanner Driver for macOS (ICA)*18*19, Image Scanner Driver for Linux (SANE)*18*19, PaperStream Capture, PaperStream ClickScan*19, PaperStream NX Manager, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*19, Scanner Central Admin Server | |
| Image Processing Functions | Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold | |
| Included Items | ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM | |
Specifications and images are provided for general reference only and may vary by configuration, revision or region. They do not form part of any offer or contract. Contact us to confirm exact specifications, availability and pricing for your requirement.
