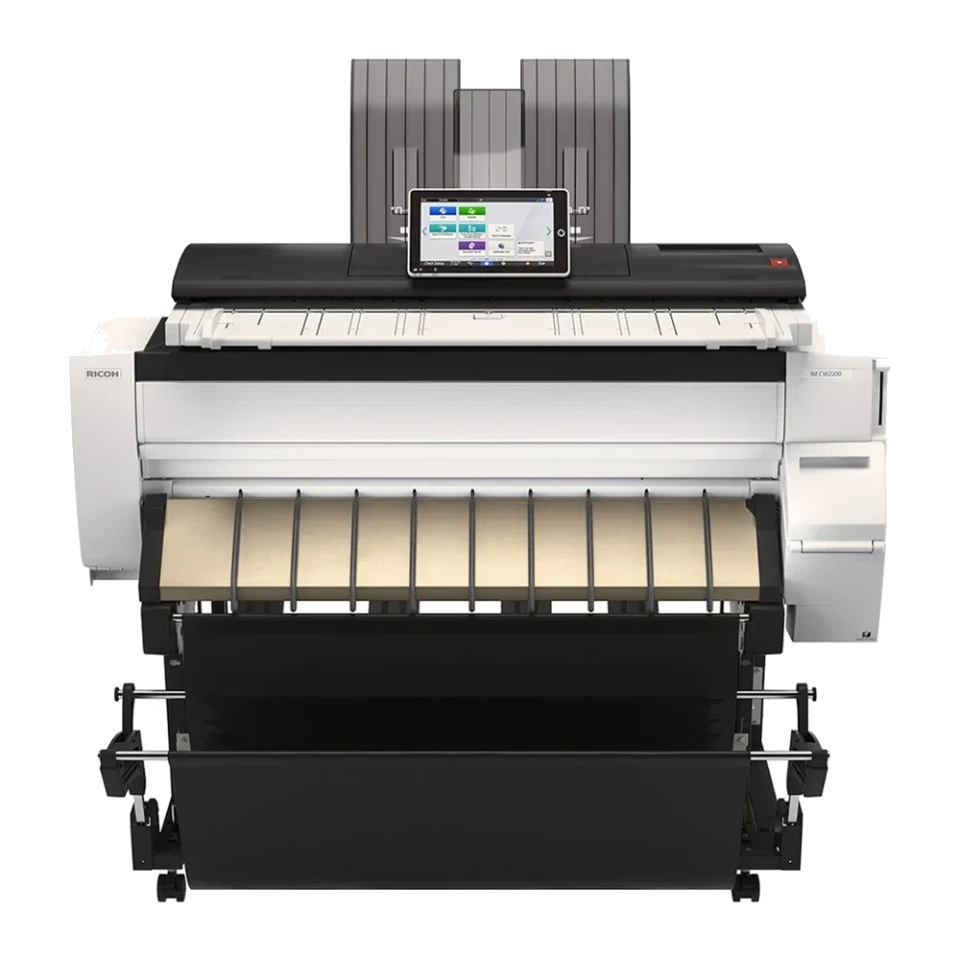

Ricoh IM CW2200 Printer
Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai. Delivered across Abu Dhabi, Sharjah and every emirate, and exported throughout the Middle East and Africa.
Genuine Ricoh hardwareSupplied and serviced by an authorized distributor,
with full manufacturer warranty.
- Print, copy, and scan
- 3.8 cpm, A1 black and white
- 10-sheet original stacker
- 33 m max print length
Highlights
The IM CW2200 runs at 2.1 ppm, A1 LEF.
- Output speed: 2.1 ppm, A1 LEF
- Print resolution: Speed Priority (Drawing) Mode, Speed Priority Mode 600 x 300 dpi Standard Mode 600 x 600 dpi Quality Priority Mode with coated paper, film (matte) and special paper 1,200 x 1,200 dpi Quality Priority Mode with other paper types 600 x 600 dpi
- Scanning speed: Black and white 26.5 mm/second, 2,400 dpi 53.3 mm/second, 1,200 dpi 106.7 mm/second, 600 dpi 160 mm/second, 150, 200, 300, 400 dpi Colour 8.8 mm/second, 2,400 dpi 17.6 mm/second, 1,200 dpi 35.3 mm/second, 600 dpi 53.3 mm/second, 150, 200, 300, 400 dpi
- Memory: 4 GB
- Paper size: 914.4 mm x 33,000 mm
Technical detail
Product specifications
| SPECIFICATIONS | |
|---|---|
| Functions | Copy, print, scan |
| Colour | Yes |
| Printer controller - standard | GWNX |
| Storage | 320 GB |
| Document server | Supported |
| CPU | Intel Atom Processor Apollo Lake-I 1.6 GHz |
| Memory - standard | 4 GB |
| Operation panel | 10.1" Smart Operation Panel (G2.5) |
| GENERAL | |
| Physical dimensions (WxDxH), mainframe | 1,384 x 675 x 1,220 mm |
| Physical dimensions (WxDxH), other | 1,108 x 432 x 398 mm, Roll Unit RU6570 |
| Weight, mainframe | 120 kg |
| Weight, other | 14.5 kg, Roll Unit RU6570 |
| GENERAL | |
| Average monthly volume | 120 m |
| Average monthly statement | Reliability targets are measured using A1 LEF paper width (841 mm) with 6% black and white/20% colour (5% x 4 colours) coverage, 40% colour ratio, and one page per job. |
| Machine life | 72,000 m or 5 years, whichever comes first |
| PM cycle | 10,000 m |
| MCBF | 3,125 m |
| GENERAL | |
| Standard input capacity (sheets) | Roll feed One roll each, 297-914 mm wide x unlimited length, or max diameter 176 mm Bypass 1 sheet, 914.4 x 2,000 mm |
| Standard output capacity (sheets) | 10 sheets, original stacker (rear upper tray) 1 sheet, basket Note: Basket output can't be stacked because the curvature factor is small. |
| Paper input configuration - standard | 1-sheet bypass tray, 1-roll feeder |
| Paper input configuration - optional | 1-roll feeder, roll holder |
| Paper output configuration - standard | 10-sheet original stacker, rear upper tray, 1-sheet output basket |
| Supported media | Plain paper, recycled paper, inkjet plain paper, tracing paper, matte film, coated paper, coated paper, CAD, special paper |
| Maximum paper size | 914.4 mm x 33,000 mm |
| Media weight (g/m2) | 51-220 |
| GENERAL | |
| Interfaces - optional | IEEE 802.11 a/g/n (Wireless LAN) |
| Network protocols - standard | TCP/IP (IPv4, IPv6) |
| MIB support | Standard MIB-II (RFC1213) Host Resources MIB (RFC1514) Printer MIB (RFC1759) Private Ricoh original MIB |
| GENERAL | |
| Copy speed | A1 LEF, black and white 2.0 cpm, Standard Mode 3.8 cpm, High Speed Mode A1 LEF, colour 1.2 cpm, Standard Mode 2.1 cpm, High Speed Mode A0 SEF, black and white 1.1 cpm, Standard Mode 1.9 cpm, High Speed Mode A0 SEF, colour 0.6 cpm, Standard Mode 1.1 cpm, High Speed Mode |
| First copy time | A1 LEF, black and white 41 seconds, Standard Mode 29 seconds, High Speed Mode A1 LEF, colour 84 seconds, Standard Mode 53 seconds, High Speed Mode A0 SEF, black and white 71 seconds, Standard Mode 51 seconds, High Speed Mode A0 SEF, colour 155 seconds, Standard Mode 81 seconds, High Speed Mode |
| Copy resolution | 600 dpi |
| Original paper width | 210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm |
| Roll paper width | 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm |
| Original feed | Sheet |
| Maximum size | 914 x 2,774 mm, colour, without optional File Format Converter 914 x 15,000 mm, with optional File Format Converter |
| Minimum size | 210 x 210 mm |
| Set position | Centre |
| Paper cut method | Preset size, synchronised cut, variable cut |
| Image shift | Front, rear, left, right, 0 to ±200 mm in 1 mm steps |
| Emergency stop | Supported, key |
| Quantity selection | 1-99 |
| Copy reservations | 8 reservations |
| Job programs | Up to 25 program modes |
| Zoom range | 25%, 400% in 0.1% steps |
| Enlargement ratios | 141.4%, 200%, 282.8%, 400% |
| Reduction ratios | 25%, 35.4%, 50%, 70.7% |
| Image density adjustment | 7 levels, black and white, greyscale, full colour, manual ; black and white, greyscale, Auto density selection |
| Image density adjustment | Automatic, manual, 9 steps |
| Copy modes | Black and white Drawing, default Text, Generation, Map, Background Line, Pasted Original, Highlighter Text/Photo, Photo, printed, glossy, copied Colour Drawing, default Text, Generation, Map Text/Photo, Photo, printed, glossy, copied |
| Colour mode | Full colour, black and white |
| Automatic paper selection (APS) | 1 st roll, 2 nd roll (optional), bypass tray |
| Combine copy | 2, 4, or 8 into 1 up to A1 |
| Interrupt copy | Not supported |
| User codes | 1,000 user codes, 8 digits in each code |
| Slip sheet | Supported |
| Electronic sorting | Rotate sort up to A1 |
| Margin/erase adjustment | Margin adjustment 0-200 mm in 1 mm steps Erase border 2-99 mm in 1 mm steps Erase inside, outside 0-1,220 mm in 0.1 mm steps |
| Image adjustment | 7 levels, sharpen/soften 9 levels, contrast 9 levels, background density 9 levels, Under Colour Removal (UCR) adjustment 5 levels, colour sensitivity 15 colours, colour program registration |
| Image creation | Repeat, mirror, positive/negative, double copy, up to A1 |
| Colour creation | Colour conversion, colour erase |
| Stamps | 8 stamps, 2 sizes, presets 40 stamps can be registered, user presets 5 styles, date stamp 6 styles, page stamp 9 digits supported, zero suppression not supported, Bates stamping |
| Image rotation | Supported |
| GENERAL | |
| Print speed colour | 2.1 ppm, A1 LEF |
| Print speed black and white | 3.8 ppm, A1 LEF |
| Printing process | On demand Piezo inkjet system |
| Ink type | Pigment-based ink, all four colours |
| Print resolution | Speed Priority (Drawing) Mode, Speed Priority Mode 600 x 300 dpi Standard Mode 600 x 600 dpi Quality Priority Mode with coated paper, film (matte) and special paper 1,200 x 1,200 dpi Quality Priority Mode with other paper types 600 x 600 dpi |
| Page description languages (PDLs) | Adobe PostScript 3, PDF Direct, RP-GL/GL2, RTIFF, Media Print JPEG, Media Print TIFF |
| Printer drivers | Adobe PostScript 3 |
| Fonts | 136 European fonts, Adobe PostScript 3 |
| Print from USB/SD | Supported, JPEG, TIFF, PDF |
| GENERAL | |
| Scan speed | Black and white 26.5 mm/second, 2,400 dpi 53.3 mm/second, 1,200 dpi 106.7 mm/second, 600 dpi 160 mm/second, 150, 200, 300, 400 dpi Colour 8.8 mm/second, 2,400 dpi 17.6 mm/second, 1,200 dpi 35.3 mm/second, 600 dpi 53.3 mm/second, 150, 200, 300, 400 dpi |
| Scan methods | Scan to USB/SD, Scan to email, Scan to folders (FTP, SMB) |
| Colour scanning | Supported |
| Scan mode | Scan modes Black and white Text/Line Art, default, Text, Text/Photo, Photo, Greyscale Colour Text/Photo, Photo |
| Scanning process | CIS colour scanner |
| Scan resolution | 150, 200 (default), 300, 400, 600 dpi, Scan to email/folder 150-2,400 dpi, TWAIN Note: 2,400 dpi is only supported using A4 paper. |
| Automatic size detection | Auto detect, preset paper size, custom size |
| Scan area | 210 x 210 mm, minimum Black and white, maximum 914.4 x 15,000 mm Note: Optional file format converter is required when the paper length is greater than 2,774 mm. Colour, maximum 914.4 x 2,774 mm, 600 dpi 914.4 x 4,161 mm, 400 dpi 914.4 x 5,548 mm, 300 dpi 914.4 x 8,323 mm, 200 dpi 914.4 x 11,097 mm, 150 dpi Note: PDF1.4 is supported up to 5,080 mm. |
| Scanner compression methods | Black and white MH, MR, MMR, default, JBIG2 Note: JBIG2 supported using PDF file format. Colour 5 levels, JPEG |
| Image density adjustment | 7 levels, black and white, greyscale, full colour, manual ; black and white, greyscale, Auto density selection |
| Scan to email | Protocols POP, SMTP, IMAP4 |
| Scan to email, other features | Email addresses stored in HDD Maximum email addresses, 2,000 Maximum registered group addresses, 500 Maximum email addresses per send 500, from HDD 100, direct input 100, via LDAP Scan to email size 100 MB, with restrictions 700 MB, without restrictions |
| Scan to folder, other features | Maximum group addresses 50 Maximum client folders per send 50 Maximum file size 2,000 MB |
| TWAIN scanning | Scan mode Standard, Photo, OCR, Filing |
| Other scan features | Gradation, 1-bit in black and white, 8-bit in greyscale, 8-bit/24-bit in colour, RGB support, 24-bit,256 levels |
| GENERAL | |
| Authentication | User authentication, Windows (via Kerberos), LDAP, basic, user code 802.1x wired authentication |
| GENERAL | |
| Windows | Windows 8.1 Windows 10 Windows Server 2012/2012 R2 Windows Server 2016 Windows Server 2019 |
| Citrix support | XenApp 7.15 LTSR VirtualApps/Desktops 2012 and later |
| Macintosh | OS X Native 10.14, 10.15, 11, PostScript 3 only |
| Unix | Sun Solaris, 10 HP-UX, 11.x, 11iv2, 11iv3 Red Hat Linux, Enterprise v4, v5, v6 SCO OpenServer, 5.0.7, 6.0 IBM AIX, v6.1, v7.1, v7.2 |
| GENERAL | |
| Standard | @Remote Embedded Web Image Monitor |
| Optional | RICOH Streamline NX v3 Global Scan NX Enhanced Locked Print NX v2 Enhanced Locked Print NX FlexRelease Server v2 Card Authentication Package v2 Card Authentication Package Enterprise Server v2 Device Manager NX Lite Device Manager NX Accounting |
| GENERAL | |
| Power source | 220-240 V, 50/60 Hz, 1.9 A |
| Power consumption | 113 W, maximum power, mainframe 135 W, maximum power, full configuration 89 W, operating, black and white 86.9 W, operating, colour 48.8 W, Ready Mode 45.7 W, Low Power Mode 0.65 W, Energy Saver Mode (Sleep Mode) |
| Warm-up time | 40 seconds or less |
| Timers | Auto Off, Energy Saver, Panel Off, System Reset |
| Sound power level | Mainframe 33.8 dB, standby, black and white 66.8 dB, copying, black and white 66.3 dB, copying, colour Full system 66.2 dB, copying, black and white |
| Sound pressure level | Mainframe 22.5 dB, standby, black and white 58.6 dB, copying, black and white 55.6 dB, copying, colour Full system 58.2 dB, copying, black and white |
| Emission levels | 0.02 mg/h or less, benzene 0.1 mg/h or less, styrene |
| Total Volatile Organic Compounds (TVOC) | 0.164 mg/h, ready 10.26 mg/h, printing |
| Identification of plastic components | All plastic components that weigh more than 25 g are identified in accordance with DIN 548490 and ISO 11469 standards. |
Specifications and images are provided for general reference only and may vary by configuration, revision or region. They do not form part of any offer or contract. Contact us to confirm exact specifications, availability and pricing for your requirement.
