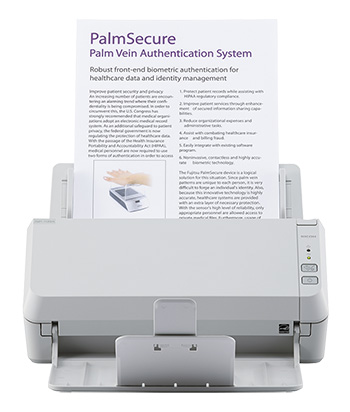

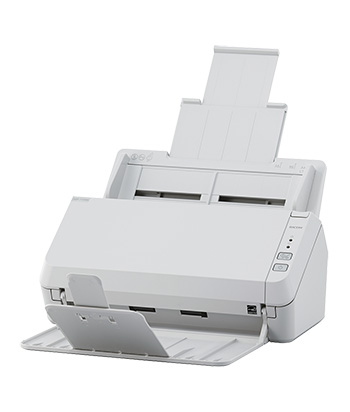

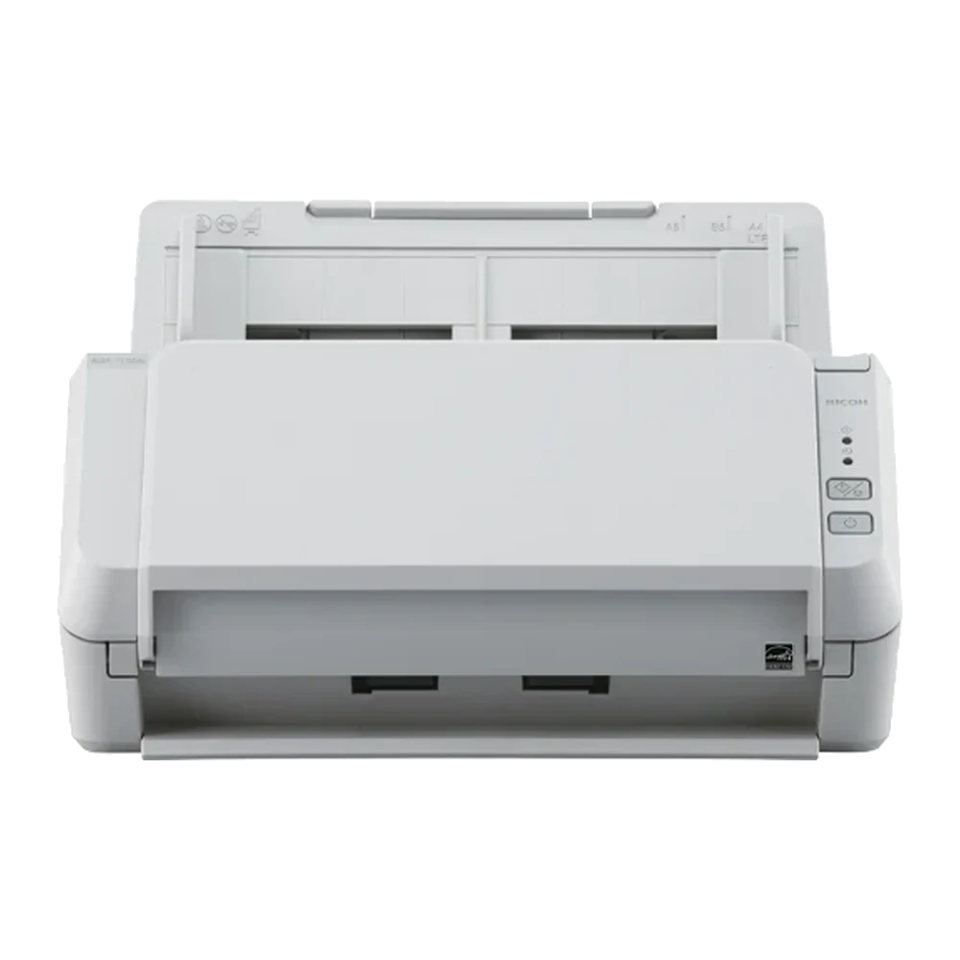

SP-1130N Scanner
-
Scanning Technology: CMOS sensor technology.
-
Optical Resolution: Up to 600 x 600 dpi for high-quality scans.
-
Maximum Scan Size: A4 (8.5 x 11.7 inches).
-
Scan Speed: Up to 30 pages per minute (ppm) for black and white.
-
Duplex Scanning: Automatic duplex scanning for both sides of a page.
-
Connectivity: USB 2.0 and Ethernet network interface options.
-
File Formats: Supports multiple formats including PDF, TIFF, and JPEG.
-
User Interface: Intuitive control panel with LCD display.
-
Monthly Duty Cycle: Recommended monthly volume of up to 5,000 pages.
-
Dimensions: Compact design, measuring approximately 11.8 x 15.0 x 10.0 inches
Get Quote Download Brochure
Product Highlight
The SP-1130N provides high-value performance as an entry-level model for your business with scanning speeds of 30 ppm/60 ipm (A4 portrait, color, 200 / 300 dpi), ADF capacity of 50 sheets, ability to scan a wide range of documents.
-
Supports both USB 3.2 Gen 1x1 high-speed connection and wired network connection
-
Compact and user-friendly design
-
High quality technologies for accurate and reliable feeding
-
Plastic card scanning
-
Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
-
Various software available for better data management
-
PaperStream ClickScan also available for ad-hoc use to scan in 3 simple steps
Product Specification
| Product Name | SP-1130N | |
|---|---|---|
| Scanner Type | ADF (Automatic Document Feeder), Duplex | |
| Scanning Speed*1 (A4 Portrait) (Color*2/Grayscale*2/Monochrome*3) |
Simplex: 30 ppm (200/300 dpi) Duplex: 60 ipm (200/300 dpi) |
|
| Image Sensor Type | Single line CMOS-CIS x 2 (front x 1, back x 1) | |
| Light Source | RGB LED x 2 (front x 1, back x 1) | |
| Optical Resolution | 600 dpi | |
| Output Resolution*4 (Color / Grayscale / Monochrome) |
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5 | |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit | |
| Background Colors | White | |
| Document Size | Maximum | 216 x 355.6 mm (8.5 x 14 in.) |
| Minimum | 52 x 74 mm (2.0 x 2.9 in.) | |
| Long Page Scanning*6 | 3,048 mm (120 in.) | |
| Paper Weight (Thickness) | Paper | 50 to 209 g/m2 (13.4 to 56 lb)*7 |
| Plastic Card | 0.76 mm (0.0299 in.) or less*8 | |
| ADF Capacity*9*10 | 50 sheets (A4 80 g/m2 or Letter 20 lb) | |
| Expected Daily Volume*11 | 4,500 sheets | |
| Multifeed Detection | Overlap detection (Ultrasonic sensor) | |
| Interface | USB*12*13 | USB 3.2 Gen 1x1 / USB 2.0 / USB 1.1 |
| Ethernet | 10BASE-T,100BASE-TX,1000BASE-T | |
| Power Requirements | AC 100 to 240 V ±10 % | |
| Power Consumption | Operating Mode | 18 W or less |
| Power Saving Mode | 2 W or less | |
| Auto Standby (Off) Mode | 0.3 W or less | |
| Operating Environment | Temperature | 5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 20 to 80% (non-condensing) | |
| Environmental Compliance | ENERGY STAR, RoHS | |
| Dimensions*14 (W x D x H) | 298 x 135 x 133 mm (11.7 x 5.3 x 5.2 in.) | |
| Weight | 2.5 kg (5.5 lb) | |
| Supported Operating System | Windows 11*15, Windows 10*15, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS*16, Linux (Ubuntu)*16 | |
| Software / Drivers | PaperStream IP for SP Series (TWAIN/TWAIN x64/ISIS™), WIA Driver*17, Image Scanner Driver for macOS (ICA)*17*18, Image Scanner Driver for Linux (SANE)*17*18, PaperStream Capture, PaperStream ClickScan*18, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap*18, Scanner Central Admin Server, ABBYY™ FineReader Sprint™*19, Network Setup Tool for SP Series, SP Series Online Update | |
| Image Processing Functions | Multi image output, Automatic color detection, Automatic page size detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Split image, De-Skew, Edge filler, Vertical streaks reduction, Digital endorser, Background pattern removal, Character thickness, Character augmentation, Character extraction | |
| Included Items | AC adapter, USB cable, Setup DVD-ROM | |
