RICOH Collaboration Board D5530
Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai. Delivered across Abu Dhabi, Sharjah and every emirate, and exported throughout the Middle East and Africa.
Genuine Ricoh hardwareSupplied and serviced by an authorized distributor, with full manufacturer warranty.

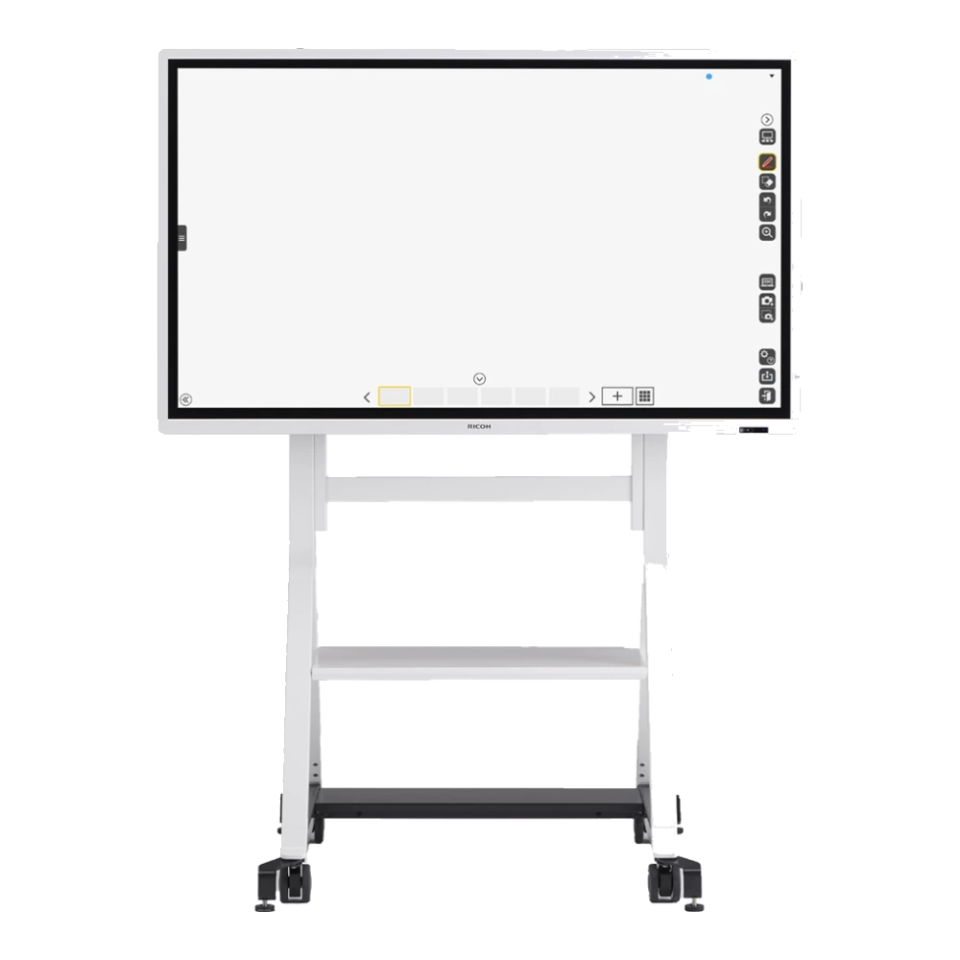

The RICOH Collaboration Board D5530 is a versatile 55-inch 4K touchscreen display supporting both landscape and portrait orientation, tailored for agile meeting rooms and dynamic design sessions.
- 55-inch 4K UHD (3840 x 2160) high-clarity anti-glare display with 440 cd/m2 brightness
- Dual orientation support: landscape or portrait mode for flexible room setups and mobile carts
- InGlass shadow-sensing optical bonding technology with smooth, precise pen recognition
- Simultaneous interactive collaboration across up to 20 connected Ricoh boards and devices
- High-security design: passcode protection, auto-wipe on session end, and secure cloud storage
- Comprehensive connectivity: HDMI, DisplayPort, VGA, USB 3.0 hub, and OPS controller slot
Highlights
Versatile 55-inch 4K collaboration board with portrait and landscape modes
The RICOH D5530 turns any space into an agile collaboration hub. With support for both portrait and landscape orientation, teams can switch between technical schematics, architectural drawings, and traditional whiteboard brainstorming with ease. Optical bonding eliminates air gaps for crisp contrast and fluid handwriting accuracy.
Product specifications
| CONFIGURATION | |
|---|---|
| Panel Type | LCD multi touch-screen display (DLED backlight) |
| Panel Size | 55" diagonal |
| Orientation | Landscape and Portrait support |
| DISPLAY PANEL | |
| Native Resolution | 3,840 x 2,160 pixels (4K UHD) |
| Effective Display Area | 1,209.6 x 680.4 mm |
| Aspect Ratio | 16:9 |
| Maximum Colours | 1.07 billion colours |
| Brightness | 440 cd/m2 |
| Contrast Ratio | 4,000:1 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Speed | 8 ms |
| Pixel Pitch | 0.315 mm |
| TOUCH SYSTEM | |
| Touch Technology | InGlass, Optical bonding |
| Touch Points | 20 points (finger & eraser); 4 points (pen & finger) |
| Touch Resolution | 150 pt/sec (19,353 x 10,886 in landscape) |
| Touch Output | USB 3.0 Type B |
| Cover Glass | 2 mm anti-glare, anti-fingerprint, 7 pascals |
| CONNECTIVITY & PORTS | |
| Video Input | 1 x HDMI (HDCP), 1 x DisplayPort (HDCP), 1 x VGA (Mini D-Sub 15 pin) |
| Video Output | 1 x DisplayPort |
| Audio In / Out | 1 x 3.5 mm Line In, 1 x Headphone Out |
| USB Hub | 6 x USB 3.0 Type-A (self-powered, 1.5A per port), 1 x USB 3.0 Type-B |
| Control Interface | 1 x RS-232C Serial In, 1 x RS-232C Serial Out |
| Expansion Slot | 1 x OPS (Open Pluggable Specification) controller slot |
| PHYSICAL & DIMENSIONS | |
| Dimensions (W x D x H) | 1,290 x 78 x 773 mm (Landscape); 773 x 78 x 1,290 mm (Portrait) |
| Weight | 35 kg (mainframe) |
| INCLUDED ACCESSORIES | |
| Included Items | Touch pen, Eraser, Remote controller with batteries, Power cord (2.5m+), HDMI cable (4.6m), USB 3.0 cable (1.8m), RGB cable (3m), User guides |
Specifications and images are provided for general reference only and may vary by configuration, revision or region. They do not form part of any offer or contract. Contact us to confirm exact specifications, availability and pricing for your requirement.
