RICOH Collaboration Board D6520
Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai. Delivered across Abu Dhabi, Sharjah and every emirate, and exported throughout the Middle East and Africa.
Genuine Ricoh hardwareSupplied and serviced by an authorized distributor, with full manufacturer warranty.

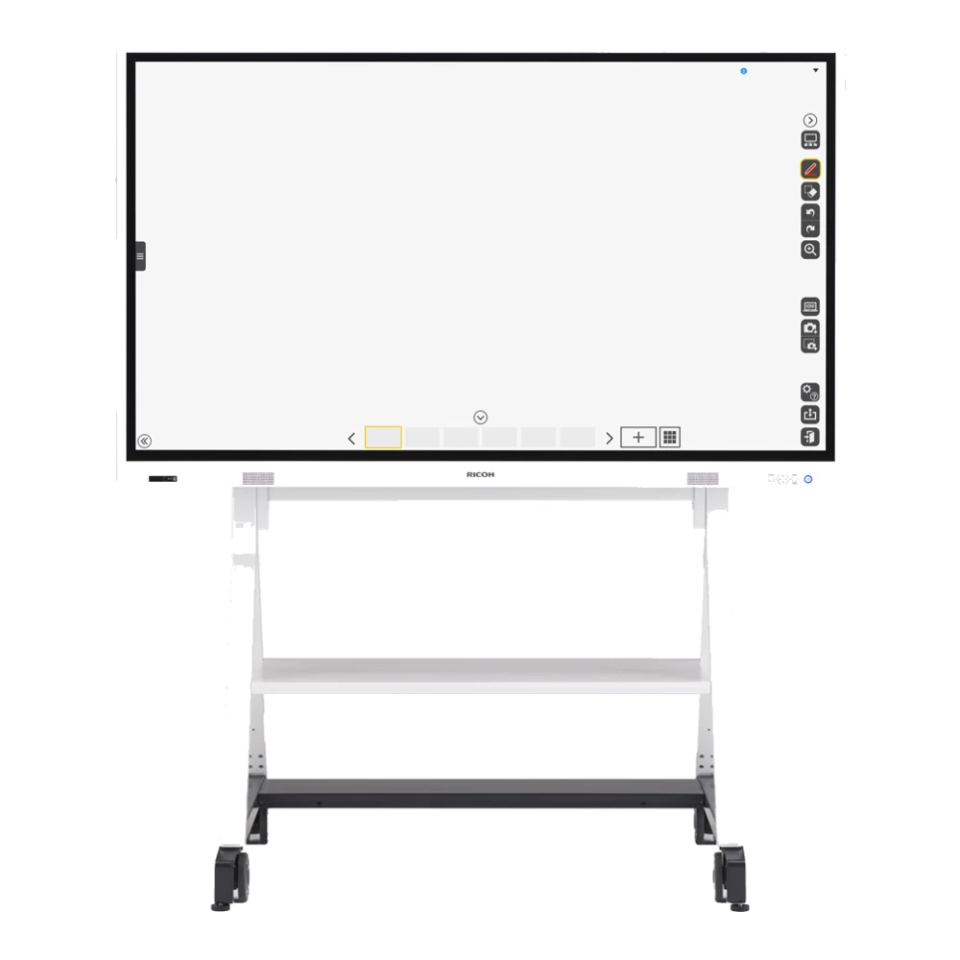

The RICOH Collaboration Board D6520 is a powerful 65-inch 4K touchscreen display featuring InGlass optical bonding, presence detection motion sensors, and enterprise meeting room integration.
- 65-inch 4K UHD (3840 x 2160) high-resolution display with anti-glare, anti-fingerprint surface
- InGlass optical bonding technology with zero air gap for lifelike handwriting fidelity
- 20-point multi-touch with auto-detection for finger, stylus pen, and palm erasing
- Built-in motion detection sensor that wakes the display instantly when participants enter
- Seamless OCR handwriting recognition converting scribbles to editable text and shapes
- Enterprise collaboration features including cloud file export, email integration, and passcode locking
Highlights
Enterprise 65-inch 4K collaboration board with motion sensing & InGlass touch
Built for productive hybrid workplaces, the RICOH D6520 empowers teams to work together whether in the boardroom or across the globe. Optical bonding ensures razor-sharp viewing angles and zero writing latency. Built-in motion sensors automatically wake the board when meeting participants enter the room, saving energy while ensuring meetings start promptly.
Product specifications
| CONFIGURATION | |
|---|---|
| Panel Type | LCD multi touch-screen display (DLED backlight) |
| Panel Size | 65" diagonal |
| Operation Panel | 1 x main switch, 7 x tact switch, Motion detection sensor |
| DISPLAY PANEL | |
| Native Resolution | 3,840 x 2,160 pixels (4K UHD) |
| Effective Display Area | 1,428.48 x 803.52 mm |
| Aspect Ratio | 16:9 |
| Maximum Colours | 1.07 billion colours |
| Brightness | 440 cd/m2 |
| Contrast Ratio | 4,000:1 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Speed | 8 ms |
| Pixel Pitch | 0.372 mm |
| TOUCH SYSTEM | |
| Touch Technology | InGlass, Optical bonding |
| Touch Points | 20 points (finger & eraser); 4 points (pen & finger) |
| Touch Resolution | 150 pt/sec (19,353 x 10,886 in landscape) |
| Touch Output | USB 3.0 Type B |
| Cover Glass | 2 mm anti-glare, anti-fingerprint, 7 pascals |
| CONNECTIVITY & PORTS | |
| Video Input | 1 x HDMI (HDCP), 1 x DisplayPort (HDCP), 1 x VGA (Mini D-Sub 15 pin) |
| Video Output | 1 x DisplayPort |
| Audio In / Out | 1 x 3.5 mm Line In, 1 x Headphone Out |
| USB Hub | 6 x USB 3.0 Type-A (self-powered, 1.5A per port), 1 x USB 3.0 Type-B |
| Control Interface | 1 x RS-232C Serial In, 1 x RS-232C Serial Out |
| Expansion Slot | 1 x OPS (Open Pluggable Specification) controller slot |
| PHYSICAL & DIMENSIONS | |
| Dimensions (W x D x H) | 1,508 x 83 x 920 mm |
| Weight | 45 kg (mainframe) |
| INCLUDED ACCESSORIES | |
| Included Items | Touch pen, Eraser, Remote controller with batteries, Power cord (2.5m+), HDMI cable (4.6m), USB 3.0 cable (1.8m), RGB cable (3m), User guides |
Specifications and images are provided for general reference only and may vary by configuration, revision or region. They do not form part of any offer or contract. Contact us to confirm exact specifications, availability and pricing for your requirement.
