RICOH Collaboration Board D7510
Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai. Delivered across Abu Dhabi, Sharjah and every emirate, and exported throughout the Middle East and Africa.
Genuine Ricoh hardwareSupplied and serviced by an authorized distributor, with full manufacturer warranty.

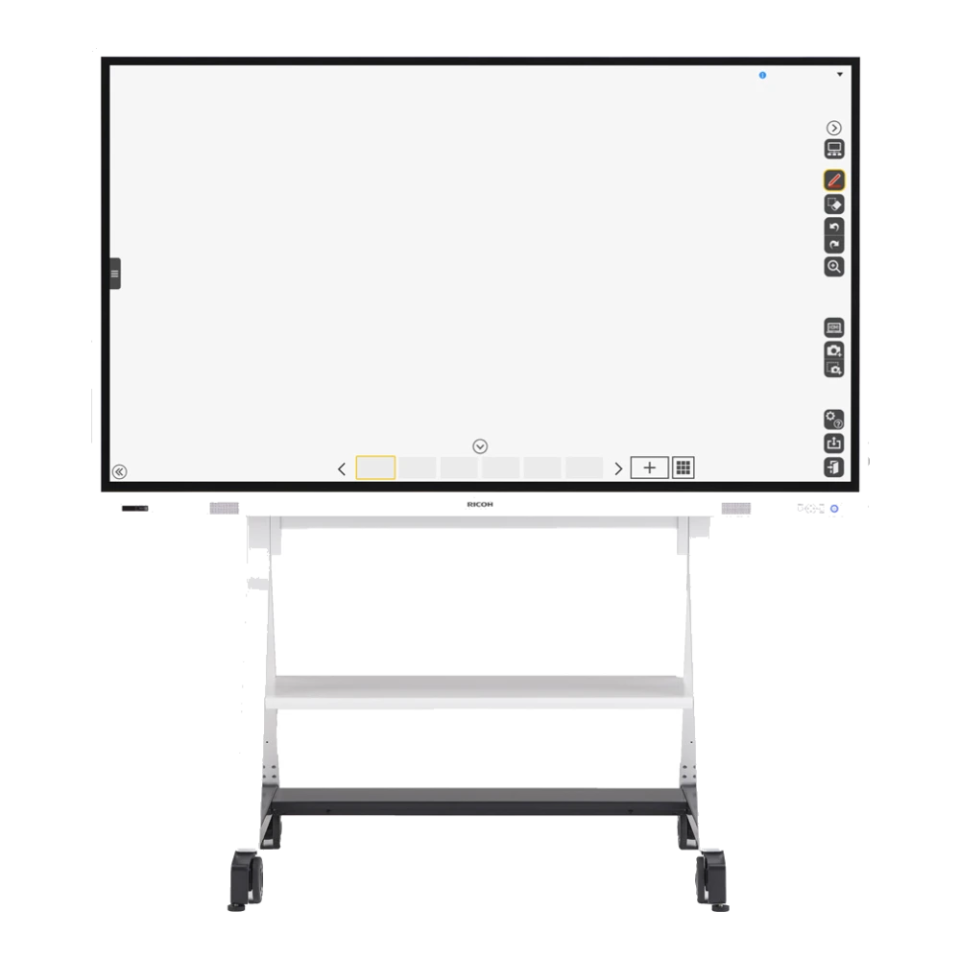

The RICOH Collaboration Board D7510 is a premium 75-inch 4K touchscreen display designed for corporate boardrooms, executive briefing centres, and government meeting spaces.
- Expansive 75-inch 4K UHD (3840 x 2160) canvas delivering brilliant visual detail and readability
- InGlass optical bonding technology eliminating parallax errors for ultra-smooth writing
- 20-point multi-touch supporting simultaneous input from multiple presenters
- Integrated presence motion detection sensor for automatic power management and instant startup
- Enterprise-class information security with LDAP directory integration, PIN security, and auto-wipe
- Flexible expansion through OPS slot supporting Ricoh IWB Controller or high-performance Windows PC
Highlights
Executive 75-inch 4K interactive board for secure boardroom collaboration
The RICOH D7510 is engineered for enterprise environments where visual excellence, collaboration security, and effortless usability are paramount. Its large 75-inch 4K display ensures intricate spreadsheets, CAD designs, and presentations can be viewed and annotated simultaneously with precision. After meetings conclude, sensitive whiteboard data is automatically wiped or securely archived to encrypted cloud folders.
Product specifications
| CONFIGURATION | |
|---|---|
| Panel Type | LCD multi touch-screen display (DLED backlight) |
| Panel Size | 75" diagonal |
| Operation Panel | 1 x main switch, 7 x tact switch, Motion detection sensor |
| DISPLAY PANEL | |
| Native Resolution | 3,840 x 2,160 pixels (4K UHD) |
| Effective Display Area | 1,650.24 x 928.26 mm |
| Aspect Ratio | 16:9 |
| Maximum Colours | 1.07 billion colours |
| Brightness | 440 cd/m2 |
| Contrast Ratio | 4,000:1 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Speed | 8 ms |
| Pixel Pitch | 0.429 mm |
| TOUCH SYSTEM | |
| Touch Technology | InGlass, Optical bonding |
| Touch Points | 20 points (finger & eraser); 4 points (pen & finger) |
| Touch Resolution | 150 pt/sec (19,353 x 10,886 in landscape) |
| Touch Output | USB 3.0 Type B |
| Cover Glass | 2 mm anti-glare, anti-fingerprint, 7 pascals |
| CONNECTIVITY & PORTS | |
| Video Input | 1 x HDMI (HDCP), 1 x DisplayPort (HDCP), 1 x VGA (Mini D-Sub 15 pin) |
| Video Output | 1 x DisplayPort |
| Audio In / Out | 1 x 3.5 mm Line In, 1 x Headphone Out |
| USB Hub | 6 x USB 3.0 Type-A (self-powered, 1.5A per port), 1 x USB 3.0 Type-B |
| Control Interface | 1 x RS-232C Serial In, 1 x RS-232C Serial Out |
| Expansion Slot | 1 x OPS (Open Pluggable Specification) controller slot |
| PHYSICAL & DIMENSIONS | |
| Dimensions (W x D x H) | 1,733 x 79 x 1,045 mm |
| Weight | 59 kg (mainframe) |
| INCLUDED ACCESSORIES | |
| Included Items | Touch pen, Eraser, Remote controller with batteries, Power cord (2.5m+), HDMI cable (4.6m), USB 3.0 cable (1.8m), RGB cable (3m), User guides |
Specifications and images are provided for general reference only and may vary by configuration, revision or region. They do not form part of any offer or contract. Contact us to confirm exact specifications, availability and pricing for your requirement.
