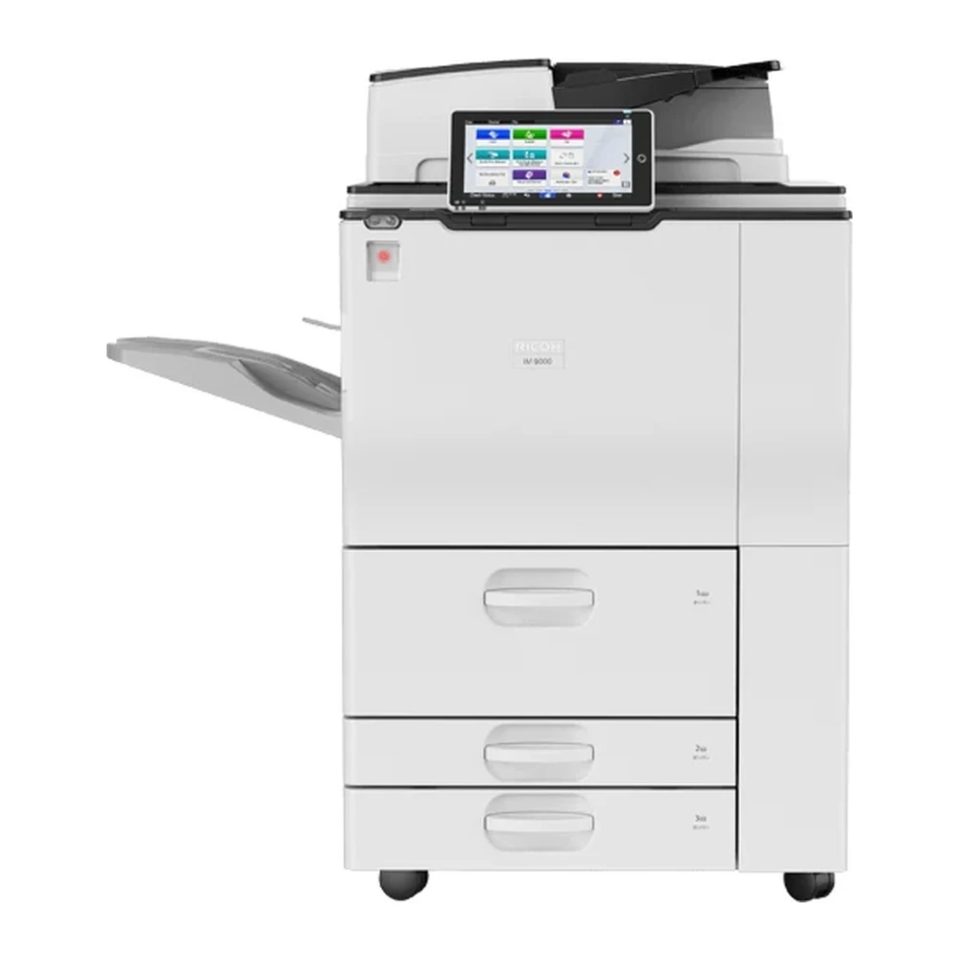

RICOH IM 9000

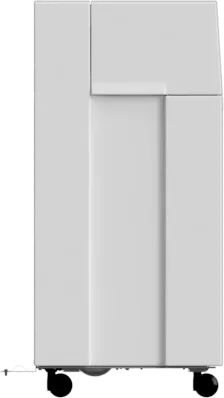

Optional side Large Capacity Tray significantly increasing the capacity of the device. Paper capacity: 4,400 sheets
Paper size: A4 LEF, B5 LEF
Paper weight: 52–128 g/m²
Physical dimensions (W x D x H): 314 x 458 x 659 mm; 462 x 458 x 659 mm— with 8 ½” x 14” Paper Size Tray Type 9002
Weight: 20 kg or less
Power consumption: 23 W or less

Inserted in the LCT

Paper size: 8½" x 14", 8½" x 11" SEF, A4 SEF, B4 SEF
Paper weight: 52–128 g/m²

Converts the standard paper input tray from a tandem A4 tray to an A3 tray.

Capacity: 1,000 sheets
Paper size: A3, B4, A4 LEF, A4 SEF
Dimensions (W x D x H): 490 x 530 x 220 mm
Weight: 11 kg

Optional unit for SPDF to scan small size paper. Used for scanning bank cheques or application slips. Stack capacity: 44 sheets
Original size: 76–105 mm x 148–218 mm
Paper weight: 64–128 g/m²
Dimensions (W x D x H): 218 x 173 x 55 mm
Weight: 0.19 kg

Supports SPDF as a double feed detection unit preventing more than one page from being scanned at a time.

Recommended to be used when loading tab stock in the paper trays.

Physical dimensions (W x D x H): 68 x 280 x 12 mm
Weight: 0.5 kg or less

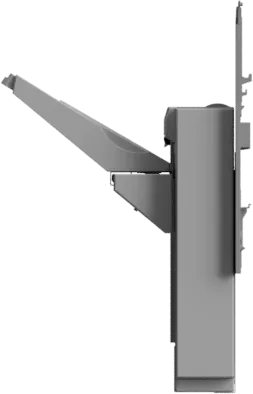

Enables the system to output copies as sets in sequential order. Shift capacity: 1,250 sheets—A4; 500 sheets—A3 SEF, A5 LEF; 100 sheets—A5 SEF, A6 SEF
Paper size: A6 SEF–A3 SEF
Dimensions (W x D x H): 400 x 600 x 480 mm
Weight: 11 kg
Power consumption: 20 W or less

A basic tray for printed and copied output when no advanced finishing—including stapling, hole punching, folding, or booklet making—is required. Output is delivered face down in a neat stack.
Capacity: 500 sheets
Paper size: A6–A3; custom size 100–305 mm x 140–600 mm
Dimensions (W x D x H): 329 x 410 x 78 mm
Weight: 0.75 kg

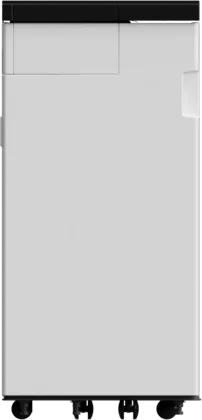

For creating professional-looking output with a number of folding patterns. Folding types:
Single-sheet mode
Z-fold, Half-fold, Letter fold-in, Letter fold-out, Double Parallel, Gate-fold
Paper weight: 64–105 g/m²
Multiple-sheet mode
Half-fold, Letter fold-in, Letter fold-out—up to 3 sheets
Paper weight: 64–80 g/m²
Paper size:
A4, B4, A3 (Z-fold)
B5, A4, B4, A3, SRA3, SRA4 (Half fold)
B5, A4, B4, A3 (Letter-fold, Double parallel-fold, Gate-fold)
Dimensions (W x D x H): 470 x 730 x 980 mm
Weight: 92 kg
Power consumption: 240 W

For creating professional-looking output with a number of folding patterns. Folding types:
Single-sheet mode
Z-fold, Half-fold, Letter fold-in, Letter fold-out
Paper weight: 64–105 g/m²
Multiple-sheet mode
Letter fold-in, Letter fold-out—up to 3 sheets
Paper weight: 64–80 g/m² Paper size:
A4, B4, A3 (Z-fold)
B5, A4, A4 LEF, B4, A3, SRA3, SRA4 (Half-fold)
A4, A3 (Letter fold-in)
A4, A3, B4 (Letter fold-out)

Dimensions (W x D x H): 209 x 730 x 980 mm
Weight: 45 kg or less
Power consumption: 60 W or less

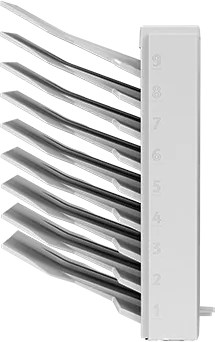

Provides individual bins for separate users or jobs. Can be configured with a mainframe or finisher. Number of bins: 9
Capacity: 100 sheets per bin
Paper size: A5–A3
Paper weight: 60–128 g/m²
Dimensions (W x D x H): 540 x 600 x 660 mm
Weight: 15 kg or less
Power consumption: 48 W or less

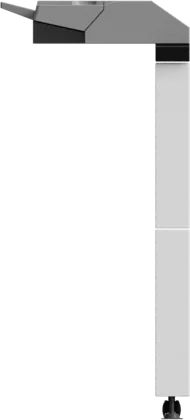

Allows pre-printed covers and inserts to be easily fed into the finishing workflow from a single source. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals. Note: Supported paper specifications are determined by the attached mainframe.

Capacity: 200 sheets (measured with a paper thickness of 0.12 mm)
Paper size: A5–A3
Paper weight: 64–216 g/m²
Original set position: Centre
Original position (normal feed, saddle stitch): Face up
Dimensions (W x D x H): 500 x 600 x 600 mm
Weight: 12 kg or less
Power consumption: 43 W or less

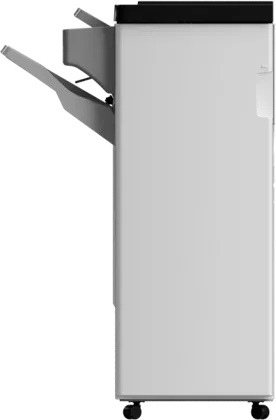

Provides multi-position stapling and optional hole punching.

Capacity: 3,000 sheets
Paper size: B6–A3, SRA3
Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 52–360 g/m²
Staple capacity: 65 sheets
Staple positions: Top, bottom, 2 staples, top slant
Staple paper weight: 52–105 g/m²
Optional punch unit PU3090 available
Dimensions (W x D x H): 657 x 730 x 980 mm
Weight: 38 kg or less; 41 kg or less with punch unit
Power consumption: 67 W

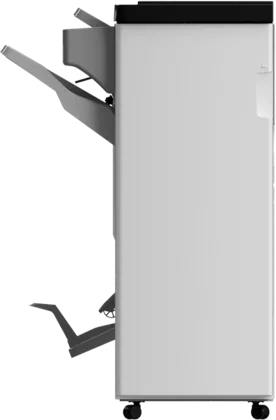

Allows documents to be professionally finished as saddle-stitched booklets. Provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas. Capacity: 2,000 sheets
Paper size: A3–A5, B6, A6, SRA3
Custom size: 90 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 52–220 g/m²—proof tray; 52–360 g/m²—shift tray
Staple capacity: 65 sheets (normal staple)—same and mixed size; 20 sheets (saddle stitch staple)
Staple paper weight: 52–105 g/m² (normal staple); 64–105 g/m² (saddle stitch staple)
Staple positions: Top, bottom, 2 staple, top slant, bottom slant, booklet
Optional punch unit PU3090 available
Dimensions (W x D x H): 657 x 730 x 980 mm
Weight: 58 kg or less; 61 kg or less with punch unit
Power consumption: 67 W

A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs. Paper size: B5–SRA3
Shift capacity: 20 sheets
Paper weight: 52–300 g/m²
Dimensions (W x D x H): 143 x 539 x 218 mm
Weight: 2 kg or less
Power consumption: 15 W or less

Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages. Paper size:
2-hole punch
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF
Note: A4 SEF and A5 LEF are not supported with 2 hole punch.
3-hole punch
B4 SEF, A3 SEF, DLT SEF
A4 LEF, B5 LEF, LT LEF
Paper weight: 52–256 g/m²
Weight: 2 kg

Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages. Paper size:
2-hole punch
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF
Note: A4 SEF and A5 LEF are not supported with 2 hole punch.
4-hole punch
B4 SEF, A3 SEF, DLT SEF
A4 LEF, B5 LEF, LT LEF
Paper weight: 52–256 g/m²
Weight: 2 kg

Installed in a finisher of an MFP to enable automatic 4-hole punching of pages. Paper size:
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF
Paper weight: 52–256 g/m²
Weight: 2 kg

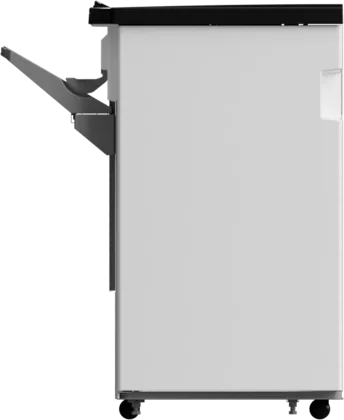

Provides multi-position stapling and optional hole punching.

Capacity: 3,000 sheets
Paper size: B6–A3, SRA3
Paper weight: 52–300 g/m²
Staple capacity: 50 sheets (A3, B4); 100 sheets (A4, B5) without Z-folding
Staple positions: Top, bottom, 2 staples, top slant
Staple paper weight: 64–80 g/m²
Optional punch unit PU5050 available
Dimensions (W x D x H): 806 x 730 x 980 mm
Weight: 77 kg or less
Power consumption: 100 W

Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.

Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.

Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.

Allows two mainframes to be connected for simultaneous copying of the same job.

Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex documents.

Allows users to print XPS format directly from the printer, without using an XPS-based driver.

Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.

Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.

Allows users to save copy and print jobs stored on the document server to a computer.

Assists seated users or users with arm injuries to open and close an automatic document feeder.

Enables fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320-page memory. Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.

Additional G3 line.

Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax. Supports max 6 sub-connections.

64 MB additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.

Erases the temporary data on the hard disk drive. For customers who require ISO 15408 certification prior to the printer or MFP system being IEEE 2600.1 certified.

Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.

Enables WiFi connectivity and wireless printing.

An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.

Used with external third party counting devices for accounting and charge-back purposes.

Used for attaching an external card reader to the mainframe.

Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.

A plastic card reader cover that conceals the card reader and its cabling. A card reader is not included.

Used for attaching an external keyboard to the mainframe.
