Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai.

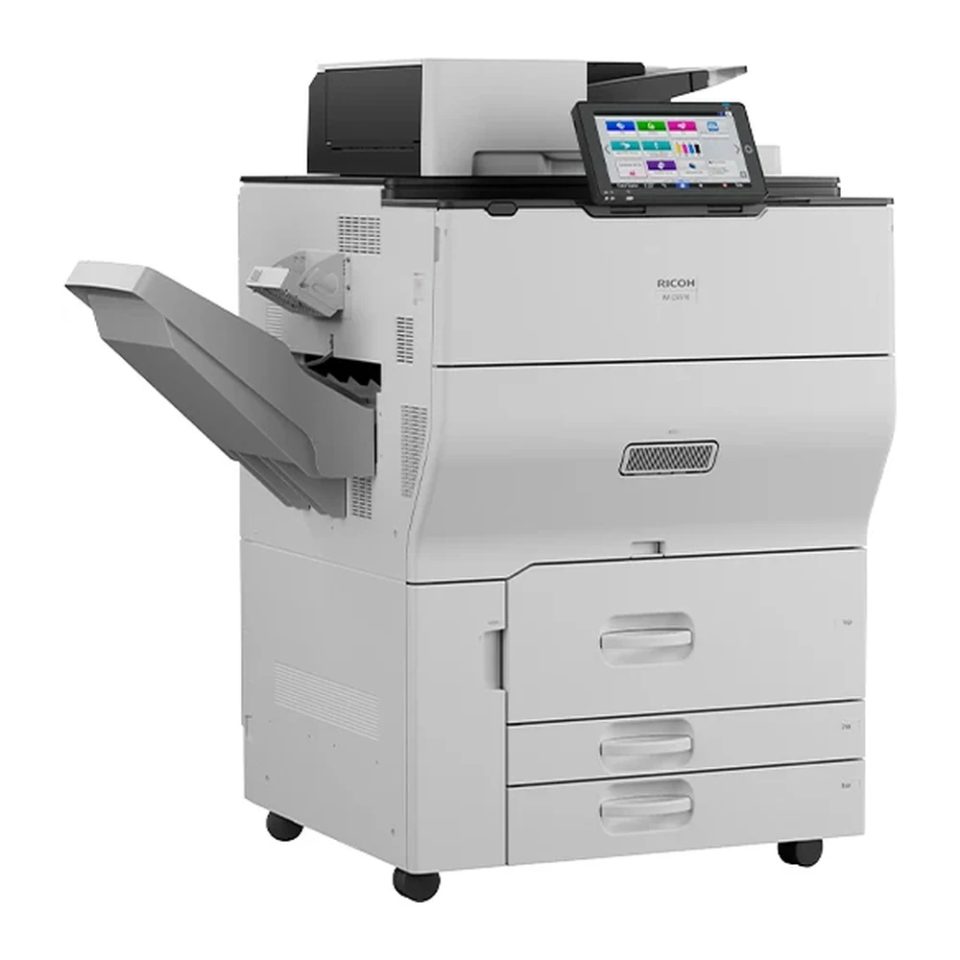

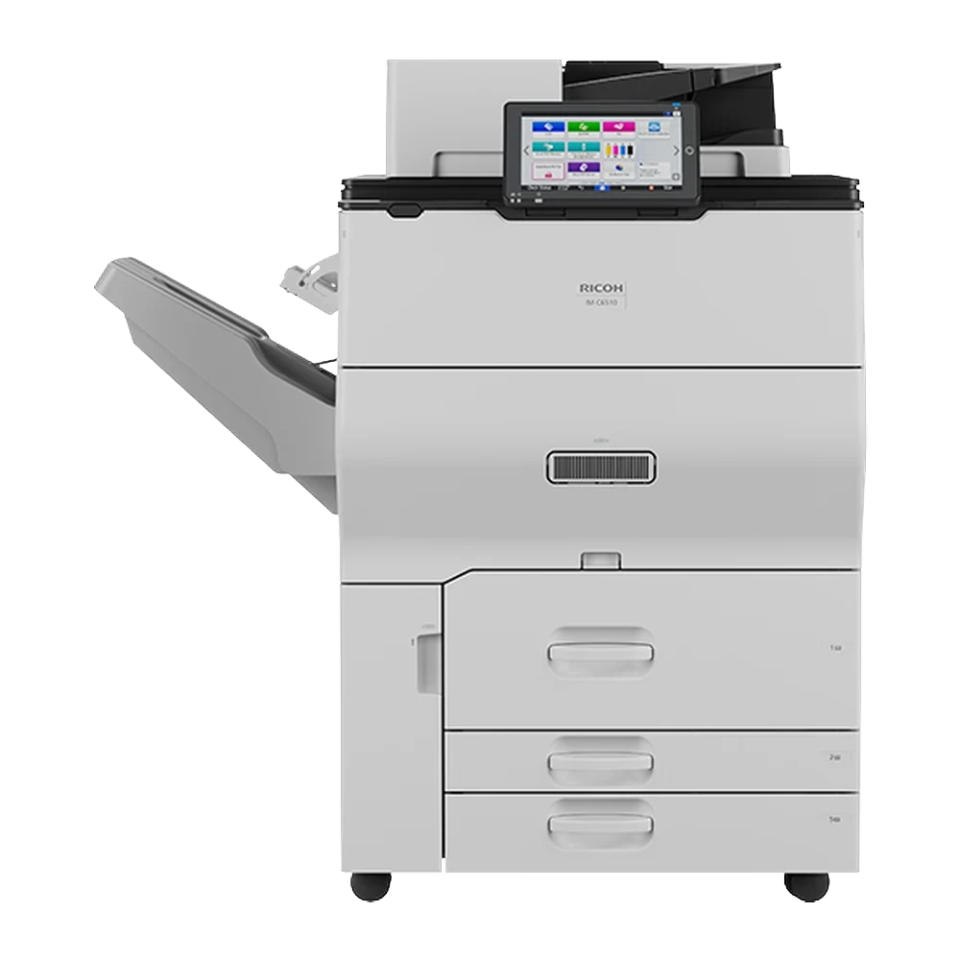

The IM C6510 runs at 65 ppm.
| SPECIFICATIONS | |
|---|---|
| Functions | Copy, print, scan, optional fax |
| Colour | Yes |
| Storage | 960 GB (480 GB x 2) |
| Memory - standard | 8 GB, 4 GB mainframe + 4 GB Smart Operation Panel |
| Operation panel | 10.1" Smart Operation Panel (G3) |
| GENERAL | |
| Physical dimensions (WxDxH), mainframe | 750 x 880 x 1,225 mm |
| Weight, mainframe | 260 kg |
| GENERAL | |
| Standard input capacity (sheets) | 3,700 |
| Maximum input capacity (sheets) | 8,100 |
| Maximum output capacity (sheets) | 3,000 |
| Paper input configuration - standard | 1,250-sheet x 2 tandem tray, 2 x 550-sheet paper input trays, 100-sheet bypass tray, 220-sheet SPDF, Duplex unit |
| Supported media | Plain Paper 1, Recycled Paper, Special Paper 1-3, Colour Paper, Letterhead, Cardstock, Preprinted Paper, Bond Paper, High-gloss Coated Paper, Envelope 2, Coated Envelope 2 1, Not displayed as paper type 2, Tray 2 only |
| Maximum paper size | A3 |
| Media weight (g/m2) | 52.3-300 |
| GENERAL | |
| Interfaces - standard | Mainframe 10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet) IEEE 802.11 a/b/g/n/ac, 2.4 GHz or 5 GHz can be selected; default: auto USB Host Type A, 2 ports USB Device Type B, 1 port Smart Operation Panel Bluetooth 5.2 1 USB Host Type A, USB Flash memory USB Host Type A, 1 port for USB keyboard, NFC, etc. (optional) 1, Cannot be used for printing |
| Interfaces - optional | Device Server Option Type M52 (additional Ethernet port) Copy Connector Type M25 |
| Network protocols - standard | TCP/IP (IPv4, IPv6) |
| GENERAL | |
| Copy speed | 65 cpm |
| First copy time | 4.9 seconds, black and white 6.8 seconds, colour |
| Copy resolution | 100, 200, 300, 400, 600 dpi, scanning 2,400 x 4,800 dpi, printing (maximum) |
| Zoom range | 25%, 400% in 1% steps |
| Enlargement ratios | 400%, 200%, 141%, 122%, 115% |
| Reduction ratios | 93%, 82%, 75%, 71%, 65%, 50%, 25% |
| Duplex copy | Simplex to duplex, duplex to duplex, with SPDF, book to duplex, front and back to duplex |
| Book copy | Booklet, magazine, layout, and booklet |
| ID card copy | Supported |
| GENERAL | |
| Print speed colour | 65 ppm |
| Print speed black and white | 65 ppm |
| First print time | 5.5 seconds or less, black and white; 7.5 seconds or less, colour |
| Print resolution | 2,400 x 4,800 dpi, maximum |
| Page description languages (PDLs) | Standard PCL 5c, PCL 6, PostScript3 emulation, PDF Direct emulation Optional Adobe PostScript 3, Adobe PDF Direct, IPDS |
| Printer drivers | Standard PCL 5c, PCL 6, PostScript3 emulation Optional Adobe PostScript 3 |
| Duplex printing | Standard |
| Mobile printing | AirPrint, Mopria®, RICOH Smart Device Connector |
| GENERAL | |
| Scan speed | A4 LEF via SPDF 150 ipm, simplex 300 ipm, duplex |
| Scan methods | Scan to USB, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded) |
| Colour scanning | Standard |
| Scan resolution | 100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi |
| Scan to file types | Single- and multi-page TIFF Single-page JPEG Single- and multi-page PDF, PDF/A Single- and multi-page High-Compression PDF |
| TWAIN scanning | Scan mode Standard, Photo, OCR, Filing Scan resolution 100-1,200 dpi |
| GENERAL | |
| Fax types | G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax |
| Fax circuit | PSTN, PBX |
| Fax compatibilty | ITU-T (CCITT), G3, maximum 3 lines |
| Fax modem speed | 2,400 bps, 33.6 Kbps, G3, standard with automatic shift down |
| Fax compression methods | MH, MR, MMR, JBIG |
| Fax resolution | Standard mode 200 x 100 dpi, 8 x 3.85 lines/mm Detail mode 200 x 200 dpi, 8 x 7.7 lines/mm Super fine mode 400 x 400 dpi, 8 x 15.4 lines/mm 400 x 400 dpi, 16 x 15.4 lines/mm Note: Super fine mode is supported with the optional SAF memory. |
| G3 fax transmission speed | 2 seconds approximately, JBIG, ITU-T No. 1 chart, TTI off, memory transmission 3 seconds approximately, MMR, ITU-T No. 1 chart, TTI off, memory transmission |
| Fax SAF memory capacity | Standard, 4 MB, approximately 320 pages With optional SAF memory, 60 MB, approximately 4,800 pages |
| Fax memory backup | 1 hour |
| Quick dials | 2,000 numbers |
| GENERAL | |
| Data Overwrite Security System (DOSS) - Standard | SSD, bulk deletion only; Optional HDD, bulk and sequential deletion |
| Encryption | SSD/HDD encryption Authentication password encryption Encryption of data sent via Scan to email and Fax forwarding (S/MIME) Encrypted secure print Encrypted PDF Mode |
| Authentication | 802.1x wired authentication IEEE 802.11i security (WEP, WPA, WPA2, WPA3) Network user authentication Quota setting/Account limit User authentication, Windows and LDAP via Kerberos, OAuth 2.0 User code authentication Wi-Fi Protected Setup (WPS) support |
| GENERAL | |
| Windows | Windows 10 Windows Server 2019 Windows 11 Windows Server 2022 Windows Server 2025 |
| Macintosh | MacOS 12 or later, PostScript 3 only, requires Rosetta to be installed |
| Unix | Sun Solaris, 10 HP-UX, 11.x, 11iv2, 11iv3 Red Hat Linux, Enterprise v5, v6 SCO OpenServer, 5.0.7, 6.0 IBM AIX, 7.1, 7.2 |
| GENERAL | |
| Standard | @Remote Embedded Web Image Monitor |
| Optional | Global Ricoh Smart Integration (CloudStream) RICOH Streamline NX V3 Device Manager NX Accounting APAC Ricoh Smart Integration (Connectors. Control, Control+) ESA TransFormer Host Printing Translator Set Numbering EZ Plus 2.0 EZ Charger Suite Scan to Cloud Server (AP) |
| Mobile apps | RICOH Smart Device Connector |
| GENERAL | |
| Power source | 220-240 V, 50/60 Hz |
| Power consumption | 2,400 W, maximum power 1,170 W, operating power, black and white 1,260 W or less, operating power, colour 165 W, Ready Mode 0.46 W, Energy Saver Mode (Sleep Mode) |
| Typical Electricity Consumption (TEC) | 1.21 kWh |
| Warm-up time | 29.7 seconds |
| Recovery time | 27 seconds, Energy Save Mode (Sleep Mode) 7.9 seconds, Low Power Mode |
| Other environmental features | Eco-friendly indicator screen, System reset timer |
Specifications and images are provided for general reference only and may vary by configuration, revision or region. They do not form part of any offer or contract. Contact us to confirm exact specifications, availability and pricing for your requirement.
Tell us your monthly volume and we will quote the right configuration, delivered and installed anywhere in the UAE.
