Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai.

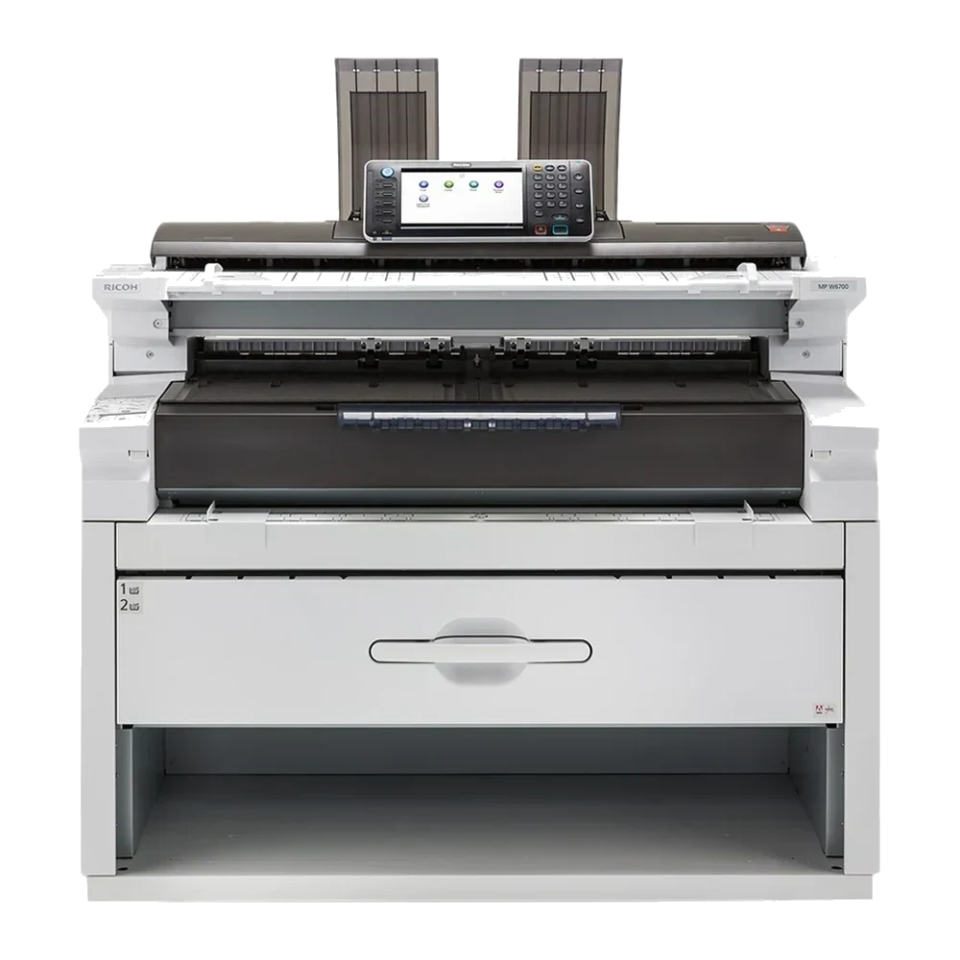

The MP W6700SP runs at 6.7 ppm.
| SPECIFICATIONS | |
|---|---|
| Functions | Copy, print, scan |
| Colour | No |
| Printer controller - standard | GWNX |
| Storage | 320 GB, shared with copy, printer, and scanner applications |
| Document server | 3,000 pages, storage 3,000, document Maximum 1,000 pages per document |
| CPU | 1.06 GHz |
| Memory - standard | 2.5 GB |
| Operation panel | 9-inch colour LCD operation panel |
| GENERAL | |
| Physical dimensions (WxDxH), mainframe | 1,250 x 755 x 1,215 mm |
| Weight, mainframe | 267 kg |
| GENERAL | |
| Average monthly volume | 350-470 metres |
| Max monthly volume | 3,000 metres |
| Machine life | 1,683,000 copies or 5 years, whichever comes first |
| PM cycle | 16,840 copies or 10,000 metres |
| MCBC | 7,700 copies or 4,565 metres |
| MCBF | 14,160 copies or 8,400 metres |
| GENERAL | |
| Supply yields | 1,430 m per 800g toner cartridge 30,000 m (1 kg x 2 bags) developer Note: 2 bags required for setup. All yields are measured with the A1/6% Ricoh chart. |
| GENERAL | |
| Standard input capacity (sheets) | 2 paper rolls, 2-roll feeder 1 sheet, bypass tray |
| Standard output capacity (sheets) | Inner 99 sheets plain paper, A1 LEF 10 sheets application paper, A1 LEF 1 sheet film Rear 10 sheets plain paper, A1 portrait, A0 SEF 1 sheet application paper, A1 portrait, A0 SEF 1 sheet film |
| Paper input configuration - standard | 1-sheet bypass tray, 2-roll feeder |
| Paper output configuration - standard | Original stacker, rear straight through tray |

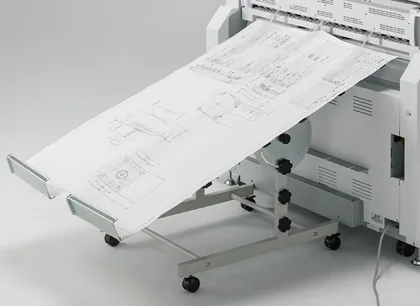

| Paper output configuration - optional | Original tray, original hanger, multi-stacker |
| Maximum paper size | 914 mm x 15,000 mm |
| Media weight (g/m2) | 52.3-110 |
| Limitless paper supply | Supported, only with roll feeder option |
| GENERAL | |
| Interfaces - standard | Gigabit Ethernet (10Base-T/100Base-Tx/1000Base-T) USB 2.0 SD card slot |
| Interfaces - optional | IEEE802.11a/g/n (Wireless LAN) with WPA support IEEE 1284 SD card for NetWare printing 2 x option slots USB Host interface for third party IC card reader |
| Network protocols - standard | TCP/IP (IPv4, IPv6) |
| Network protocols - optional | IPX/SPX, with NetWare printing option |
| MIB support | Standard MIB-II (RFC1213) Host Resources MIB (RFC1514) Printer MIB (RFC1759) SNMP v3 (RFC2574) Private Ricoh original MIB |
| GENERAL | |
| Copy speed | 6.7 cpm, A1 LEF |
| First copy time | 18 seconds or less, A1 LEF, from roll feeder |
| Copy resolution | 600 dpi |
| Original size | 914.4 x 15,000 mm 960 mm, maximum original width 15,000 mm, maximum original length |
| Original paper width | 210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 680, 707, 728, 841, 880, 914.4 mm (marking only for 490, 680 mm) Note: APS and rotate sort do not work for 440, 490, 620, 625, 680, 707, 880 mm |
| Original feed | Sheet |
| Original paper output | Rear straight through, original front upper |
| Original stacker | Rear straight through 100 sheets, A2 LEF or less 1 sheet, A1 LEF or more |
| Copy size | Maximum 914 x 15,000 mm, roll feeder 914 x 2,000 mm, bypass tray Minimum 210 x 210 mm |
| Copy paper width | 210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914.4 mm |
| Copy paper feed | Original rear straight through, original inner output |
| Set position | Centre |
| Reproduction ratio | 1:1 |
| Paper cut method | Preset size, synchronised cut, variable cut |
| Greyscale | 256 levels, scanning 2 levels, writing |
| Image shift | Front, rear, left, right, 0 to ± 200 x 1 mm |
| Number of pages for preset jobs | A0, 100 or more A1, 100 or more A2, 200 or more A3, 400 or more A4, 400 or more |
| Emergency stop | Standard, key |
| Empty information | Roll, 5 degrees |
| Zoom range | 25%, 400% in 0.1% steps |
| Enlargement ratios | 141.4%, 200%, 282.8%, 400% |
| Reduction ratios | 25%, 35.4%, 50%, 70.7% |
| Image density adjustment | Lighter to darker, 9 levels |
| Image density adjustment | 9 steps, automatic, manual |
| Copy modes | Text mode, Text/Photo mode, Photo mode, Drawing mode, Generation Text mode, Generation Photo mode, Pasted Original mode, Background Line mode, Highlighter mode |
| Paper selection | Automatic Paper Selection (APS) 1st roll tray, available when roll feeder option is installed 2nd roll tray, only available when 2-roll feeder option is installed A2 cutsheet tray (optional) Bypass tray |
| Automatic paper selection (APS) | Supported |
| Interrupt copy | Supported |
| Electronic sorting | Standard, not available for custom sizes 880, 800, 707, 680, 660, 625, 620, 490, 440 mm |
| Margin/erase adjustment | Margin adjustment 0-200 mm in 1 mm steps Erase Edge, 3-50 mm Inside, 5 areas (A0 or less) Outside, 1 area (A0 or less) |
| Image adjustment | Image overlay, format overlay, negative or positive, mirroring, double copy, repeat copy (1-99, 10-key input) |
| GENERAL | |
| Print speed black and white | 6.7 ppm |
| Printing process | Electro-photographic printing |
| Fusing | Method Heat and pressure Roller materials Teflon, heat roller Silicone rubber, pressure roller Fusing oil Minimal used |
| Toner development | Magnetic brush dual component dry toner system |
| Print resolution | 600 dpi |
| Page description languages (PDLs) | PostScript 3, RPCS, HP-GL, HP-GL2 (HP-RTL), TIFF (CALS) |
| Printer driver resolution | RPCS 600 dpi PostScript 3 300, 600 dpi RP-GL/RP-GL2 400, 600 dpi RTIFF 200, 300, 400, 600 dpi |
| Fonts | 136 European fonts, PostScript 3 |
| Supported file formats | PrintTool software HP-GL, HP-GL2, HP-RTL, TIFF, WMF, BMP, CALS, PCX, JPEG, PDF (up to v1.7), Calcomp, XLS, DOC/DOCX, PPT Note: XLS, DOC/DOCX, PPT file formats are supported only when printing status is ready with installed printer driver PrintCopyTool software, optional DWG, DXF, DWF |
| Non-printable area | Leading edge, 5 mm Trailing edge, 5 mm Each side, 5 mm |
| Other print features | Sample print, Locked print, Hold print, Stored print, Stored print (shared), Store and print, Store and print (shared), PDF Direct Print, Counter blade cleaning system, Charge system, Scorotron (corona charge), File format converter |
| GENERAL | |
| Scan speed | 80 mm/second, black and white 26.7 mm/second, colour |
| Scan methods | CIS |
| Colour scanning | Supported |
| Scan mode | Black and white Drawing (default), Text, Text/Photo, Text/Drawing, Photo, Greyscale Colour Text/Photo, Photo |
| Scan resolution | 600 dpi, TWAIN, 1,200 dpi Optical resolution Scan to email/folder, 150, 200 (default), 300, 400, 600 dpi TWAIN, 150-1,200 dpi |
| Automatic size detection | Auto detect, preset paper size, custom size |
| Original size | 914.4 x 15,000 mm, maximum, 210 x 210 mm, minimum |
| Image edit | Erase border, positive/negative, mirror image |
| Image density adjustment | Lighter to darker, 9 levels |
| Scan to email | Requirement SMTP (mail server) gateway and TCP/IP Authentication SMTP, POP before SMTP authentication Resolution 150, 200 (default), 300, 400, 600 dpi Supported file types Multipage TIFF (default), single page TIFF, single- and multipage PDF, single page JPEG, single- and multipage high compression PDF, PDF/A |
| TWAIN scanning, other features | Standard size A4, A0, B4, B1 Image adjustment XY resolution, brightness, contrast, threshold/gamma adjustment, halftone pattern, rotation, mirror, tone reversal Memory Minimum required memory for operating system + 8 MB CPU Pentium 150 MHz or more, or minimum required CPU for operating system HDD More than 100 MB of disk space is required Network protocols TCP/IP, UDP/IP, ICMP/IP |
| TWAIN scanning | Resolution Black and white 150-1,200 dpi in 1 dpi steps Colour 150-600 dpi Scan mode Standard, photo, OCR, filing |
| Other scan features | Preview before transmission, automatic file naming and number setting, simultaneous transmission, Encrypted PDF transmission, Edit (erase border, positive/negative, mirror image), network TWAIN as a bundled scanner driver |
| GENERAL | |
| Data Overwrite Security System (DOSS) - Optional | Type H, supports the requirements for Common Criteria certification, conforming to IEEE 2600.1 |
| Encryption | Authentication password encryption Encrypted communication over Secure Sockets Layer (SSL) HDD data encryption, optional HDD encryption unit is required Locked print data encryption Address book encryption Encryption of data sent via Scan to email (S/MIME) PDF encryption (password and transmission) |
| Authentication | User authentication, Windows (via Kerberos), LDAP, basic, user code Administrator authentication 802.1x wired authentication |
| Other security features | Secure Internet Protocol communication (IPsec) SNMPv3 support Restrict use of destination for ‘scan to’ functions Permit adding destinations for ‘scan to’ destinations |
| GENERAL | |
| Windows | PostScript 3 Windows Vista Windows 7 Windows 8 Windows 8.1 Windows 10 Windows Server 2003 Windows Server 2008 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 |
| Macintosh | Mac OS 10.7 or later, PostScript 3 |
| Supported languages | English, Brazilian Portuguese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Romanian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish |
| GENERAL | |
| Standard | @Remote Embedded Web Image Monitor Device SDK |
| Optional | @Remote Office Device Manager NX PrintCopyTool |
| GENERAL | |
| Power source | 220-240 V, 50-60 Hz, 8 A (max) |
| Power consumption | 1,840 W, maximum power 1 Wh or less, Energy Saver Mode (Sleep Mode) |
| Warm-up time | 120 seconds or less |
| Recovery time | 30 seconds or less, from Auto Off Timer (Off Mode) 120 seconds or less, from Energy Saver Mode (Sleep Mode) |
| Sound power level | 49 dB or less, standby 72 dB or less, copying |
| Emission levels | Ozone, 3.0 mg/h or less Dust, 4.0 mg/h or less Styrene, 1.8 mg/h or less Benzene, 0.05 mg/h Total Volatile Organic Compounds (TVOC), 18 mg/h |
| Reduction of environmentally sensitive materials | All free |
| Environmental standards | Energy Star EPEAT Gold R&TTE, 2.4 GHz, 5 GHz C-Tick, Australia, New Zealand RCM, New Zealand EN62311 (CE marking) RoHS REACH Directive 2006/66/EC Directive 94/62/EC WEEE India E-waste RECSI |
| Safety standards | CE Marking GS Mark (TUV certification authority) CB Certification CCC EMC EMC, Australia (RCM Mark) NZEMC (RCM Mark) |
| Identification of plastic components | All plastic components weighing more than 25 g are identified in accordance with DIN548490 and ISO11469. |
