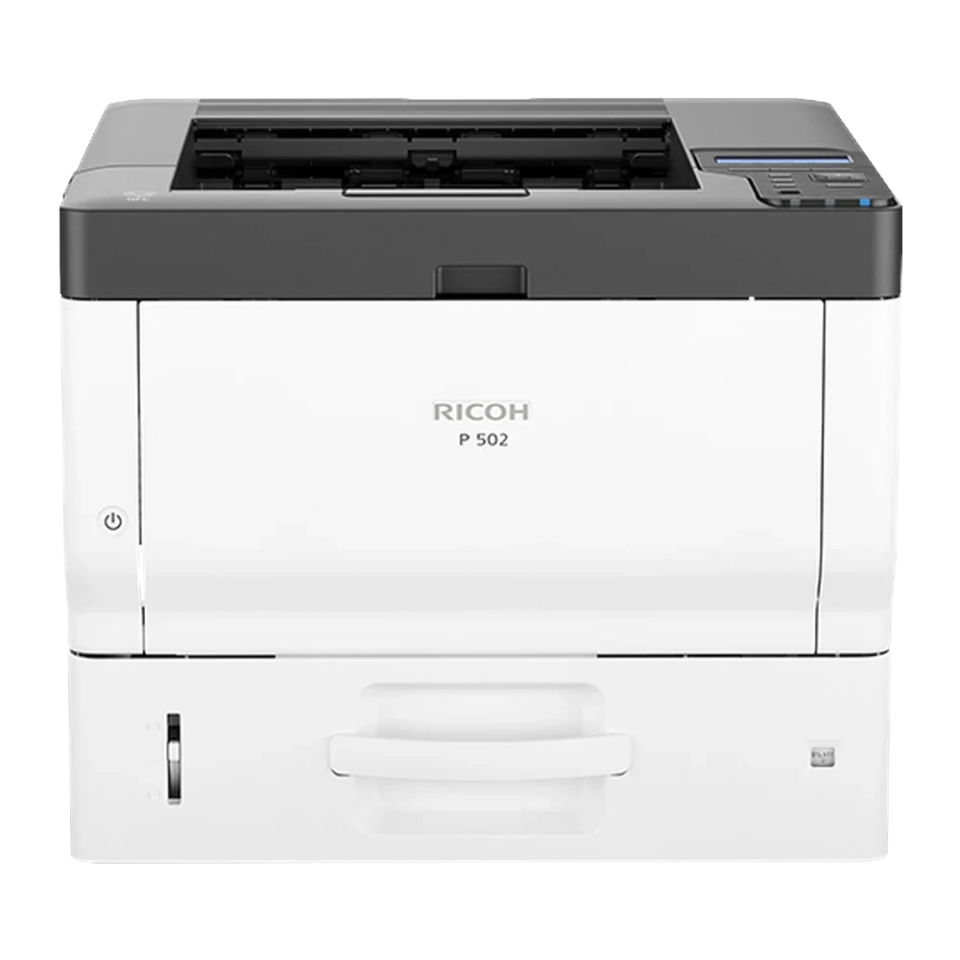

The P 502 runs at 43 ppm, A4 LEF, simplex 37 ppm, A4 LEF, duplex.
| SPECIFICATIONS | |
|---|---|
| Functions | |
| Colour | No |
| Storage | 320 GB, optional |
| Memory - standard | 2 GB |

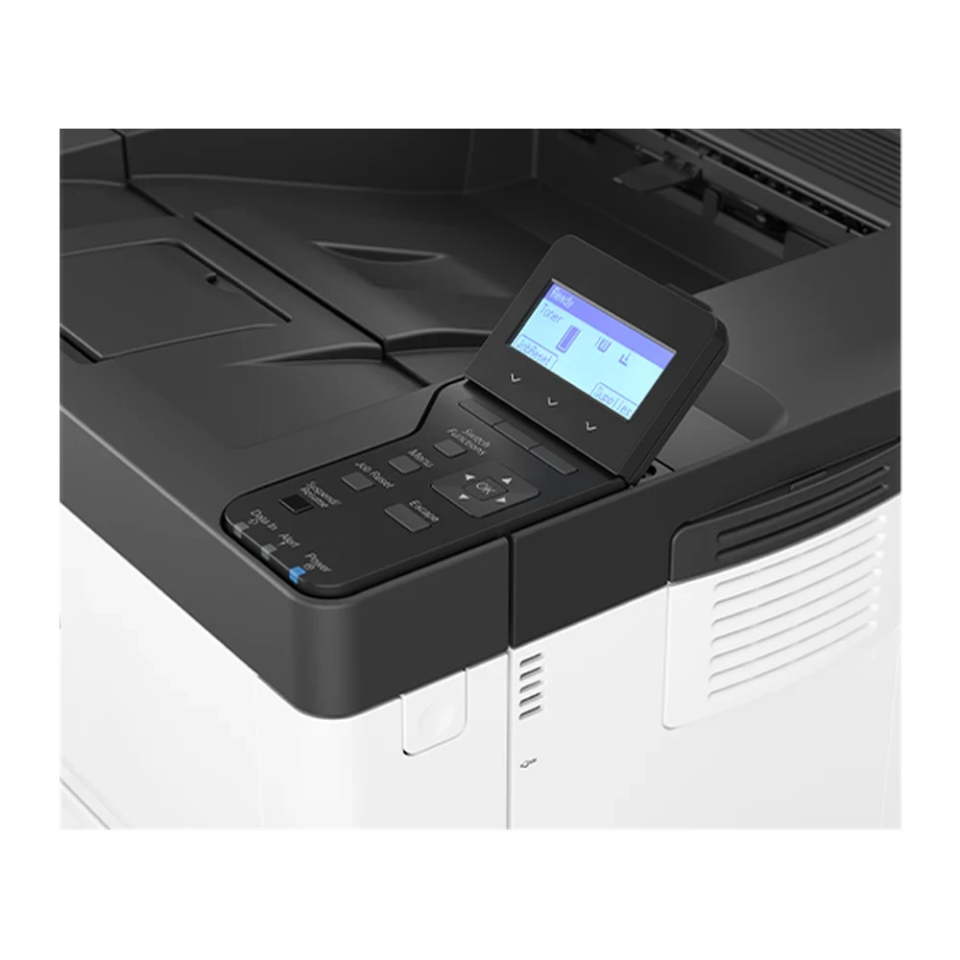

| Operation panel | 4-line LCD |
| GENERAL | |
| Physical dimensions (WxDxH), mainframe | 375 x 412 x 311 mm |
| Weight, mainframe | 19.3 kg |
| GENERAL | |
| Standard input capacity (sheets) | 600 |
| Maximum input capacity (sheets) | 2,100 |
| Standard output capacity (sheets) | 250 |
| Maximum output capacity (sheets) | 250 |
| Paper input configuration - standard | 500-sheet paper input tray, 100-sheet bypass tray, duplex unit |
| Paper output configuration - standard | 250-sheet face-down paper output tray |
| Supported media | Plain paper (type not displayed), recycled paper, special paper 1-2, colour paper, letterhead, pre-printed paper, OHP, label paper, envelope |
| Maximum paper size | A4 |
| Media weight (g/m2) | 52-256 |
| GENERAL | |
| Interfaces - standard | 10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet) USB 2.0 USB Host 2.0 |
| Interfaces - optional | One of these can be installed: USB Device Server (additional Ethernet/Gigabit Ethernet port) IEEE 802.11a/b/g/n (Wireless LAN) IEEE 1284 |
| Network protocols - standard | TCP/IP (IPv4, IPv6) |
| GENERAL | |
| Print speed black and white | 43 ppm, A4 LEF, simplex 37 ppm, A4 LEF, duplex |
| First print time | 4.3 seconds or less |
| Print resolution | 1,200 x 1,200 dpi |
| Page description languages (PDLs) | Standard PCL 5e, PCL 6, PostScript 3 emulation, PDF Direct emulation Optional Genuine Adobe PostScript 3, PDF Direct from Adobe, XPS Direct Print, IPDS Note: HDD option is required if the IPDS option is installed. |
| Printer drivers | PCL 5e, PCL 6, PostScript 3 |
| Duplex printing | Standard |
| Mobile printing | Yes |
| GENERAL | |
| Data Overwrite Security System (DOSS) - Standard | Yes, with optional HDD |
| Encryption | HDD encryption, with optional HDD Authentication password encryption |
| Authentication | User authentication, Windows and LDAP via Kerberos, Basic, User Code 802.1x wired authentication Wireless LAN security (WEP, WPA2, 11i) IPv6 Quota setting WiFi Protected Setup (WPS) support |
| GENERAL | |
| Windows | Windows 7 Windows 8.1 Windows Server 2008 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows 10 Windows Server 2016 |
| Macintosh | OS X Native v10.10 or later, PostScript 3 only |
| Unix | Sun Solaris, 10 HP-UX, 11.x, 11iv2, 11iv3 Red Hat Linux, Enterprise, v4, v5, v6 SCO OpenServer, 5.0.7, 6.0 IBM AIX, 6.1, 7.1, 7.2 |
| IBM | iSeries/AS/400, Using OS/400 Host Print Transform |
| GENERAL | |
| Standard | @Remote Embedded Web Image Monitor |
| Optional | RICOH Streamline NX v2 and v3 Enhanced Locked Print NX v2 and FlexRelease Server v2 FlexRelease CX Card Authentication Package v2 and Enterprise Server v2 Device Manager NX Lite and Accounting Printer Driver Packager NX Device Manager NX Pro and Enterprise RICOH @Remote Connector NX |
| Mobile apps | Smart Device Connector |
| GENERAL | |
| Power source | 220-240 V, 7 Amps, 50/60 Hz, Asia Pacific 110 V, 12 Amps, 60 Hz, Taiwan |
| Power consumption | 1,260 W or less, maximum power, guaranteed 597 W, printing, nominal 79.6 W, Ready Mode, nominal 0.63 W, Energy Saver Mode (Sleep Mode), nominal |
| Typical Electricity Consumption (TEC) | 0.54 kWh |
| Warm-up time | 13 seconds or less |
| Power saving mode | 1 minute; default shift time, Energy Saver Mode (Sleep Mode) |
| Recovery time | 10 seconds or less, Energy Saver Mode (Sleep Mode) |
| Green labels | Thai Green Label Scheme, Hong Kong Energy Efficiency Labelling Scheme, Blue Angel Mark (BAM) |
