RICOH Pro 8400S

Optional Large Capacity Input Tray accommodates paper sizes up to A4 and significantly increases the capacity of the device.

Capacity: 5,000 sheets (1,100 sheets x 2 trays, 2,800 sheets x 1 tray)—with 0.1 mm paper thickness
Paper size: A4 LEF, B5 LEF, A5 SEF, A5 LEF
Oversize paper: 305 x 230 mm, needs to be set in SP Mode
Paper weight: 52.3–216 g/m² (Trays 4 and 5); 52.3–163 g/m² (Tray 6)
Air assisted paper feed: Not available
Tray security lock: Supported with all trays
Note: ABUS lock T84MB (20 mm) is recommended.
Power source: From mainframe
Power consumption: 224 W
Dimensions (W x D x H): 540 x 730 x 1,000 mm
Weight: 106 kg or less Note: Coated paper is not supported.

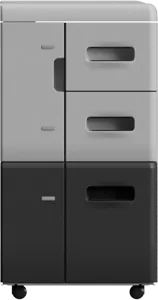

Optional Large Capacity Input Tray accommodates paper sizes up to 13" x 19.2" and significantly increases the capacity of the device.

Capacity:4,400 sheets (1,100 sheets x 2 trays, 2,200 sheets x 1 tray)— with 0.1 mm paper thickness; 4,000 sheets (1,000 sheets x 2 trays, 2,000 sheets x 1 tray)— with 0.11 mm paper thickness
Paper size: A5 LEF–13" x 19.2"
Custom size: 100–330.2 x 139.7–487.7 mm
Note: Paper narrower than 139.2 mm requires attachment.
Paper weight : 52.3–256 g/m² (Trays 4 and 6); 40–300 g/m² (Tray 5)
Air-assisted paper feed: Supported with all trays
Tray security lock: Supported—all trays
Note: ABUS lock T84MB (20 mm) is recommended.
Active tray indicator LED: Supported
Power source: From mainframe
Power consumption: 324 W or less
Dimensions (W x D x H): 865 x 730 x 1,000 mm
Weight: 185 kg or less

Feeds up to 550 sheets of uncoated paper stocks for expanded system capacity and document output types. Capacity: 550 sheets
Paper size: A5–13" x 19.2"
Custom size: 100 x 330.2 x 139.7 x 487.7 mm
Paper weight: 52.3–216 g/m²
Power source: From mainframe
Paper volume sensors: In 4 steps, near end 0%, 50%, 100%
Dimensions (W x D x H): 690 x 561 x 210 mm
Weight: 20 kg or less

Optional Large Capacity Tray significantly increasing the capacity of the device. This option features a vacuum-feed mechanism for excellent paper feeding accuracy. Note: Depending on the mainframe, up to three Vacuum-Feed LCIT RT5150 units can be configured. A Bridge Unit BU5010 may be required between each unit when more than one Vacuum-Feed LCIT RT5150 is connected. Some mainframes require a Bridge Unit BU5040 as a mandatory option. Specifications and supported sub-options are dependent on the mainframe.

Capacity: 4,400 sheets—0.11 mm paper thickness; 4,840 sheets—0.1 mm paper thickness
Paper size: A5–13" x 19.2"
Custom size: 100–330.2 mm x 139.7–487.7 mm
Paper weight: 40–470 g/m²
Note: Only for Trays 3 and 4. Weight above 400 g/m² not supported in Trays 5, 6, 7, and 8 since the Bridge Unit doesn’t support over 400 g/m². Supported paper weight is dependent on the mainframe.
Paper transfer method: Air pickup
Dimensions (W x D x H) : 1,054 x 730 x 1,000 mm; 1,290 x 730 x 1,000 mm—with Vacuum-Feed Banner Sheet Tray Type S9 attached; 1,519 x 730 x 1,000 mm—with Extension Vacuum-Feed Banner Sheet Tray Type S14 attached
Weight: 230 kg
Power source: 220–240 V
Power consumption: 1,000 W

Required to configure the Multi-Bypass Tray BY5020 with the Vacuum-Feed LCIT RT5150.

Converts the standard paper input tray from a tandem A4 tray to an A3 tray. Capacity: 1,000 sheets
Paper size: A4, A3, B4
Paper weight : 52.3–216 g/m²
Dimensions (W x D x H): 490 x 530 x 175 mm
Weight: 11 kg

Supports SPDF as a double feed detection unit preventing more than one page from being scanned at a time.

Enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job. Line speed: 60–433 mm/s
Stack capacity: 1,250 sheets (A4, B5), 500 sheets (A3 SEF, A5 LEF, B4 SEF), 100 sheets (A5 SEF, B6 SEF, A6 SEF)
Paper size: A3~A5, B6 SEF, A6 SEF
Paper weight: 52–216 g/m² (Quality guaranteed only for 60-105 g/m²)
Power source: From mainframe
Power consumption: 20 W
Dimensions (W x D x H): 400 x 600 x 480 mm
Weight: 11 kg or less

Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Punch option is available. Capacity: 3,250 sheets Paper size:
A3 SEF–A5, B6 SEF, A6 SEF, SRA3, 13” x 19.2”
Custom size—90 x 139.7 mm–330.2 x 487.7 mm
Note: Supported paper size is dependent on the mainframe.
Paper weight: Without Z-fold
52.3–220 g/m² Staple capacity: 2–65 sheets—A4, A3, B5, B4
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: Plain paper—52.3–105 g/m²: Coated paper—81.4–104.7 g/m²
Saddle stitch staple: 20 sheets
Optional punch unit PU5030 available
Optional output jogger available
Dimensions (W x D x H): 657 x 730 x 980 mm—with all extendable trays closed; 760 x 730 x 980 mm—with all extendable trays opened
Weight: 60 kg
Power consumption: 67 W

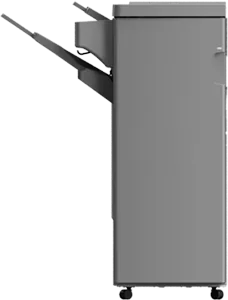

Provides multi-position stapling and optional hole punching. Capacity: 3,250 sheets
Paper size: A3–A5, B6, A6, SRA3, 13" x 19.2"
Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 52–220 g/m²
Staple capacity: 65 sheets
Staple positions: Top, bottom, 2 staple, top slant
Staple paper weight: 52–105 g/m²
Optional punch unit PU5030 available
Optional output jogger available
Dimensions (W x D x H): 657 x 730 x 980 mm with all extendable trays closed; 760 x 730 x 980 mm—with all extendable trays opened
Weight: 40 kg or less
Power consumption: 67 W Note: Supported paper size is dependent on the mainframe.

Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.

Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.

A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs. Note: Supported paper specifications are determined by the attached mainframe.

Paper size: A3 SEF, B4 SEF, A4 SEF, A4 LEF, B5 LEF, A5 LEF, 12” x 18", 13” x 19.2”
Dimensions (W x D x H): 169 x 539 x 203 mm—including jogger operating range
Weight: 2 kg or less
Power consumption: 15 W or less

Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Comes with dual shift trays for ‘non-stop delivery.’ Punch option is available. Capacity: 3,500 sheets (dual shift tray) Paper size:
Without Z-fold
Max. 330.2 x 487.7 mm (13" x 19.2"), min. 139.7 x 139.7 mm
330.2 x 1,260 mm—with banner sheet output tray
With Z-fold
Max. 304 x 457 mm, min. 139.7 x 139.7 mm Paper weight:
Without Z-fold
40–350 g/m² (upper tray), 40–470 g/m² (lower tray)
With Z-fold
64–105 g/m²
Note: Supported paper weight is dependent on the mainframe. Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: without Z-fold: 64–80 g/m²; with Z-fold: 64–105 g/m²
Saddle stitch staple: 30 sheets (120-page booklet) with 80 g/m² paper
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 160 kg
Power consumption: 150 W

Provides 100-sheet stapling and optional hole punching. Paper size:
Max. 330.2 x 487.7 mm (13" x 19.2"); min. 139.7 x 139.7 mm—without Z-fold
330.2 x 1,260 mm—with banner sheet output tray
Max. 304 x 457 mm; min. 139.7 x 139.7 mm—with Z-fold Paper weight:
40–350 g/m² (upper tray), 40–470 g/m² (lower tray)—without Z-fold
64–105 g/m² —with Z-fold
Note: Supported paper weight is dependent on the mainframe. Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: 64–80 g/m² (without Z-fold); 64–105 g/m² (with Z-fold)
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 135 kg
Power source: 220–240 V ±10%, 50/60 Hz
Power consumption: 150 W

Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages. Number of punch: 2 or 3 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m²
Performance: Same as engine speed

Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages. Number of punch: 2 or 4 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m²
Performance: Same as engine speed

Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals. Capacity: 400 sheets (200 sheets x 2 trays)
Paper height: 22 mm
Paper size: A5–13" x 19.2"
Custom size: 139.7–330.2 mm x 139.7–487.7 mm
Available size: 139.7–1,260 mm (length), 100–330.2 mm (width)
Paper weight: 52.3–350 g/m² with plain paper; 105.1—350 g/m² with coated paper
Dimensions (W x D x H): 740 x 730 x 1,350 mm; width for connecting part is 330 mm
Weight: 60 kg
Power source: From mainframe
Power consumption: 110 W, excluding peak consumption

When attached to the cover interposer, detects double feeds from the interposer. Dimensions (W x D x H): 126 x 317 x 56 mm
Weight: 0.4 kg

Reduces the natural paper curl that can occur, delivering sheets with optimal flatness. Ideal for applications that are frequently printed with high toner coverage on thin paper and paper with long grain. Configuration: Optional internal module to be installed in the mainframe
Paper size: 100 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 40–350 g/m²
Decurler functions:
Pressure adjustment
3 steps—from operation panel
Curl type
Back curl, face curl—from operation panel
Dimensions (W x D x H) : 71 x 509 x 181 mm
Weight: 5 kg or less
Power source: From mainframe
Power consumption: 30 W or less

Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5120 is required in order to attach this option. Stacker full detection: Supported
Limitless stack: Supported
Note: This setting is not user configurable; it needs to be configured by a Ricoh service engineer.
Power source: External, universal power supply, 100–240 V, 50 Hz
Power consumption: 75 W—average; 250 W—maximum
Dimensions (W x D x H): 1,115 x 591 x 555 mm
Weight: 75 kg

Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.

Folding types:
Single sheet mode
Half-fold, Z-fold, Letter fold-in, Letter fold out
Multiple sheet mode (up to 3 sheets)
Letter fold-in, Letter fold out

Paper size: A4—13" x 19.2"
Paper weight:
64–150 g/m²—single sheet mode
64–80 g/m²—multiple sheet mode

Power source: 220–240 V
Power consumption: 60 W or less
Dimensions (W x D x H): 209 x 730 x 1,000 mm
Weight: 45 kg or less

An external printer controller that provides fast processing speed, outstanding image quality, and time-saving workflow.

Enables WiFi connectivity and wireless printing.

Used for searching and registering media. Displays media options with similar printing setting characteristics that are already registered in the paper catalog and the customer paper list.

Visually alerts operators about system status changes to prompt attention. Can be configured with a mainframe. Dimensions (W x D x H) : 100 × 100 × 606 mm

Used with external third party counting devices for accounting and charge-back purposes.
