Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai.

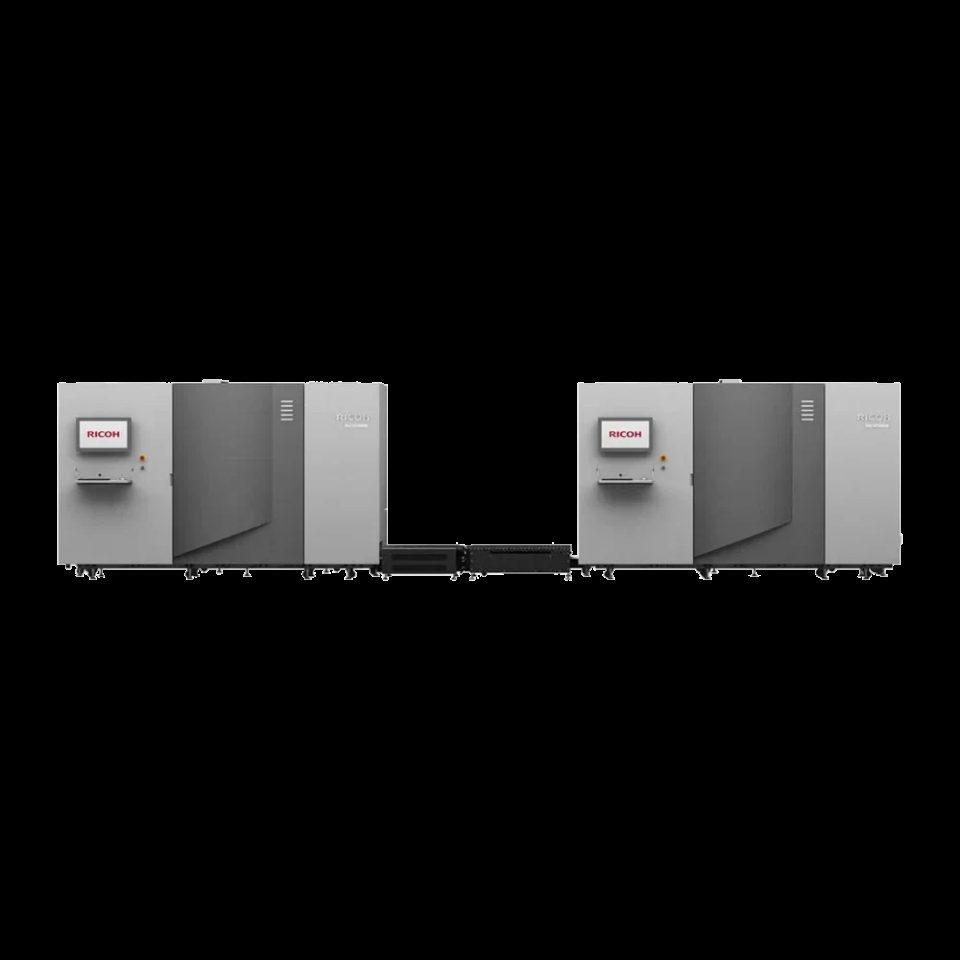

The Pro VC40000 runs at 4 colours, 2-bit, 2-up duplex 50 mpm, 100 mpm, 120 mpm, 180 mpm at 600 x 600 dpi, Black Enhanced and Monochrome modes 120 mpm, 150 mpm at 600 x 450 dpi.
| SPECIFICATIONS | |
|---|---|
| Functions | |
| Colour | Yes |
| Printer controller - optional | Ricoh TotalFlow R600A Digital Front End Note: The Ricoh TotalFlow R600A controller is a mandatory option. |
| Device configuration | Base unit (2 units per configuration) 2 print engines per duplex system in I (inline) or H configuration |
| GENERAL | |
| Physical dimensions (WxDxH), mainframe | 3,240 x 1,870 x 1,971 mm, base unit |
| Weight, mainframe | 2,750 kg, base unit |
| GENERAL | |
| Paper output configuration - 3rd Party | Pre- and post-processing Multiple partners provide a variety of unwind, rewind, cut, fold, dynamic perforation, vision systems and inline processing, including a solution for books |
| Supported media | Uncoated, Ink Jet Treated, Ink Jet Coated |
| Maximum paper size | Length: 101.6-1371.6 mm, Width: 165-520 mm |
| Media weight (g/m2) | 40-250 |
| Paper path | Tight web Web width, 520.7 mm |
| GENERAL | |
| Print speed colour | 4 colours, 2-bit, 2-up duplex 50 mpm, 100 mpm, 120 mpm, 180 mpm at 600 x 600 dpi, Black Enhanced and Monochrome modes 120 mpm, 150 mpm at 600 x 450 dpi |
| Target volume | Up to 40 million impressions/month |
| Printing technology | Piezo Drop-on-Demand Dynamic variable drop size |
| Ink type | Pigment, Dye and MICR |
| Curing method | Radiant |
| Ink configuration | 4-colour CMYK |
| Printhead | Drop-on-Demand Piezo printhead |
| Print resolution | Up to 600 x 600 dpi |
| GENERAL | |
| Safety standards | ISO 12100 ISO 13849-1 EN 60204-1 EN 1010-1 EN 1010-2 EN 60950-1 UL60950-1 CAN/CSA C22.2 No.60950-1 JIS C 6950-1 IEC60950-1 |
| Electromagnetic Compatibility (EMC) standards | EN 61000-6-2 EN 61000-6-4 EN 61000-3-2 EN 61000-3-3 FCC Part15 Subpart B (Class A) DOC ICES-003 Class A VCCI (Class A) KN61000-6-2 KN11 (KN61000-6-4) |
| Operating environment | Operating temperature 18-24° C Operating humidity 40-60% |
Specifications and images are provided for general reference only and may vary by configuration, revision or region. They do not form part of any offer or contract. Contact us to confirm exact specifications, availability and pricing for your requirement.
Tell us your monthly volume and we will quote the right configuration, delivered and installed anywhere in the UAE.
