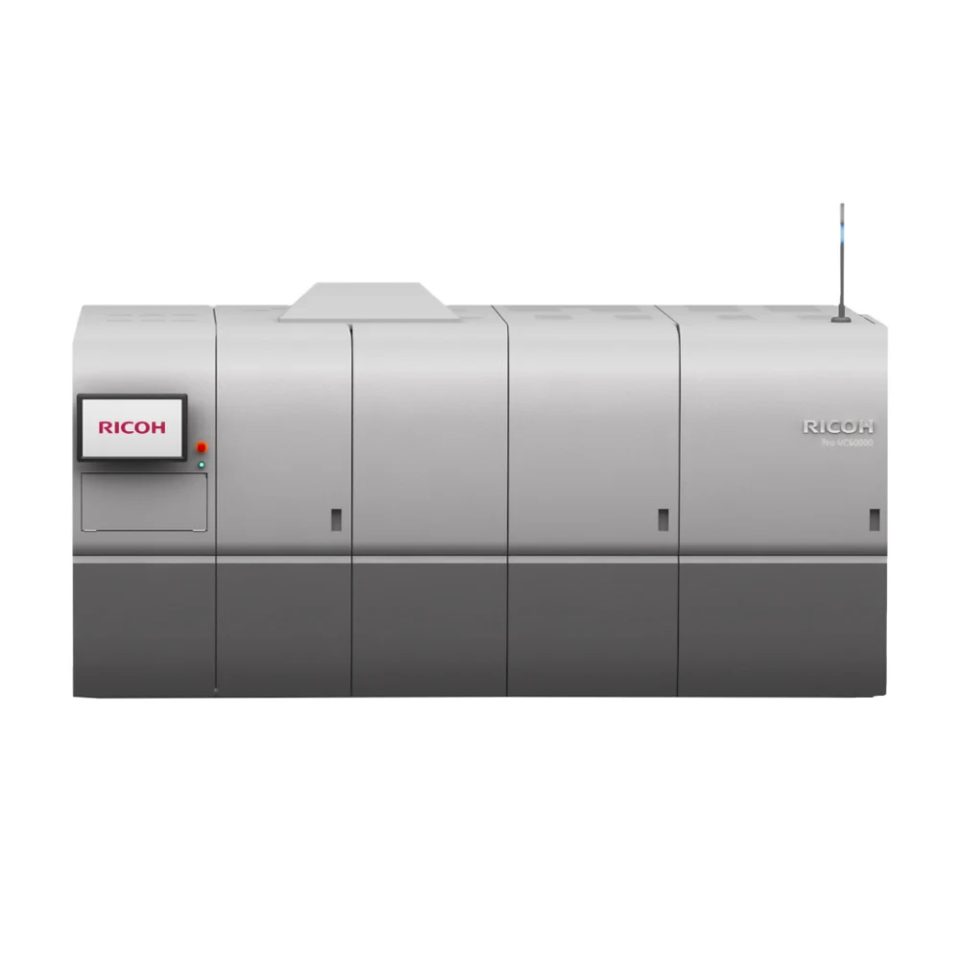

The Pro VC60000 runs at 4 colours, 2-bit, 2-up duplex 150 mpm / 2,020 A4/min at 600 x 600 dpi, High Speed Option 120 mpm / 1,616 A4/min at 600 x 600 dpi 100 mpm / 1,344 A4/min at 1,200 x 600 dpi 50 mpm / 672 A4/min at 1,200 x 1,200 dpi.
| SPECIFICATIONS | |
|---|---|
| Functions | Printing |
| Colour | Yes |
| Printer controller - optional | Ricoh TotalFlow R600A Digital Front End Note: The Ricoh TotalFlow R600A controller is a mandatory option. |
| Device configuration | Base unit (2 units per configuration) 2 print engines per duplex system in I (inline) or L (left-angle) configuration A modular system comprises of the Entrance Unit and Main Unit which house the CMYK print heads and paper path, Standard Dryer Unit, and Exit Unit. Options Protector Coat Unit Undercoat Unit |
| GENERAL | |
| Physical dimensions (WxDxH), mainframe | 4,920 x 2,369 x 2,195 mm, base unit (Entrance Unit/Main Unit/Dryer/Exit Unit) |
| Weight, mainframe | 4,600 kg, base unit (Entrance Unit/Main Unit/Dryer/Exit Unit) |
| GENERAL | |
| Paper output configuration - 3rd Party | Pre- and post-processing Multiple partners provide a variety of unwind, rewind, cut, fold, dynamic perforation, vision systems and inline processing, including a solution for books |
| Supported media | Offset Uncoated/EP, Offset Coated, Inkjet Coated, Inkjet Treated |
| Maximum paper size | Length 101.6-1371.6 mm Width 165-520 mm |
| Media weight (g/m2) | 40-250 at 120 m / 64-157 at 150 m |
| Paper path | Tight web Web width 520.7 mm Printable area 508 mm (non-printable area 2 mm from paper edges) |
| GENERAL | |
| Print speed colour | 4 colours, 2-bit, 2-up duplex 150 mpm / 2,020 A4/min at 600 x 600 dpi, High Speed Option 120 mpm / 1,616 A4/min at 600 x 600 dpi 100 mpm / 1,344 A4/min at 1,200 x 600 dpi 50 mpm / 672 A4/min at 1,200 x 1,200 dpi |
| Target volume | Up to 40 million A4 impressions/month |
| Printing technology | Piezo Drop-on-Demand, 1-pass 10 dual Ricoh printheads per colour Dynamic variable drop size at 2 bits/drop Dynamic Print-head Positioning |
| Ink type | Ricoh high-density, low-water content pigment ink On-the-fly replacement 2 x 10-litre polystyrene cartridges per colour |
| Curing method | Drum Radiant + Air Knifes (optional) |
| Ink configuration | 4-colour CMYK |
| Printhead | Ricoh latest generation of Drop-on-Demand Piezo printhead 1-pass, 10 x 1,200 dpi printhead modules per colour |
| Print resolution | Up to 1,200 x 1,200 dpi |
| Non-printable area | 2 mm from paper edge |
| GENERAL | |
| Safety standards | IEC60950-1 EN60950-1 (CE marking) EN60950-1 (TUV) IEC60950-1 (CB Scheme) |
| Electromagnetic Compatibility (EMC) standards | EN55022 Class A EN55024 (CE mark) AS/NZS CISPR22 (C-Tick mark) |
| Operating environment | Operating temperature 18-24° C Operating humidity 40-60% |
