Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai.

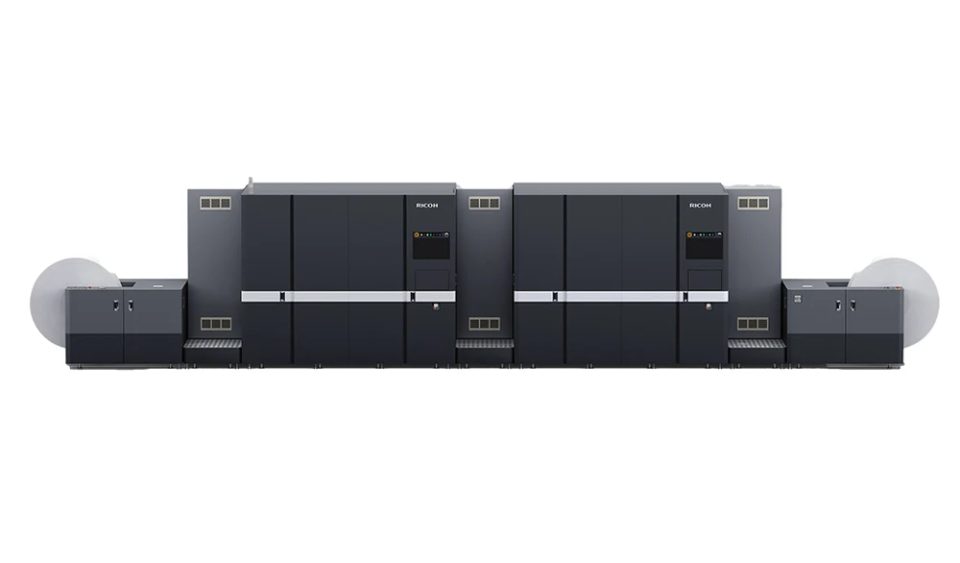

The Pro VC80000 runs at 150 mpm—4 colours, 1,200 x 600 dpi 93 mpm—4 colours, 1,200 x 1,200 dpi, rated to 30 Mft/system per month—target uptime 80%.
| SPECIFICATIONS | |
|---|---|
| Functions | |
| Colour | CMYK |
| Printer controller - standard | TotalFlow Print Server R900A |
| Device configuration | Standard configuration 2 x print engines 1 x ink station 1 x TotalFlow Print Server |
| GENERAL | |
| Physical dimensions (WxDxH)—mainframe | 3,500 x 2,300 x 2,550 mm—single engine |
| Weight—mainframe | 6,500 kg—single engine |
| Average monthly volume | 30 Mft/system per month—target uptime 80% |
| Paper output configuration - 3rd Party | Multiple partners provide a variety of unwind, rewind, cut, fold, dynamic perforation, and inline processing, including a solution for books |
| Supported media | Offset coated, offset uncoated, inkjet treated |
| Maximum paper width | 165.1–584.2 mm |
| Media weight (g/m2) | 40–250 (standard) / 40–300 (with the Heavy Paper Option) |
| Print speed colour | 150 mpm—4 colours, 1,200 x 600 dpi 93 mpm—4 colours, 1,200 x 1,200 dpi |
| Printing technology | Piezo Drop-on-Demand Dynamic variable drop size |
| Ink type | Aqueous ink |
| Ink configuration | 4-colour CMYK |
| Printhead | Next generation liquid-cooled printheads |
| Print resolution | 1,200 x 600 dpi 1,200 x 1,200 dpi |
| TotalFlow | Processor architecture Head node server 2x Intel Xeon Silver 4309Y 8-core 2.8 GHz, 105 W processor Dense server 2x Intel Xeon Gold 5320 26-core 2.2 GHz, 185 W processor End node server 2x Intel Xeon Gold 5315Y 8-core 3.2 GHz, 140 W processor |
| Safety standards | Machinery directive Annex I of 2006/42/EC–Machinery Directive (MSD) EN60204-1:2018 EN 1010-1:2004+A1:2010 EN 1010-2:2006+A1:2010 EN ISO 12100:2010 EN ISO 13849-1:2015 NFPA 79: 2021 UL775: 2013 CSA 22.2 No.301-16 |
| Electromagnetic Compatibility (EMC) standards | FCC: 47 CFR Part 15, Subpart B ICES-003 EN 61000-6-2:2019 EN 55011:2016+A1:2017+A11:2020 KS C 9811:2019 KS C 9610-6-2:2019 |
| Operating environment | Operating temperature 18 –24° C Operating humidity 40–60% |
Specifications and images are provided for general reference only and may vary by configuration, revision or region. They do not form part of any offer or contract. Contact us to confirm exact specifications, availability and pricing for your requirement.
Tell us your monthly volume and we will quote the right configuration, delivered and installed anywhere in the UAE.
