Supplied, installed and serviced by Gtech FZE, the authorized Ricoh distributor in Jebel Ali, Dubai.
Genuine Ricoh hardwareSupplied and serviced by an authorized distributor,
with full manufacturer warranty.

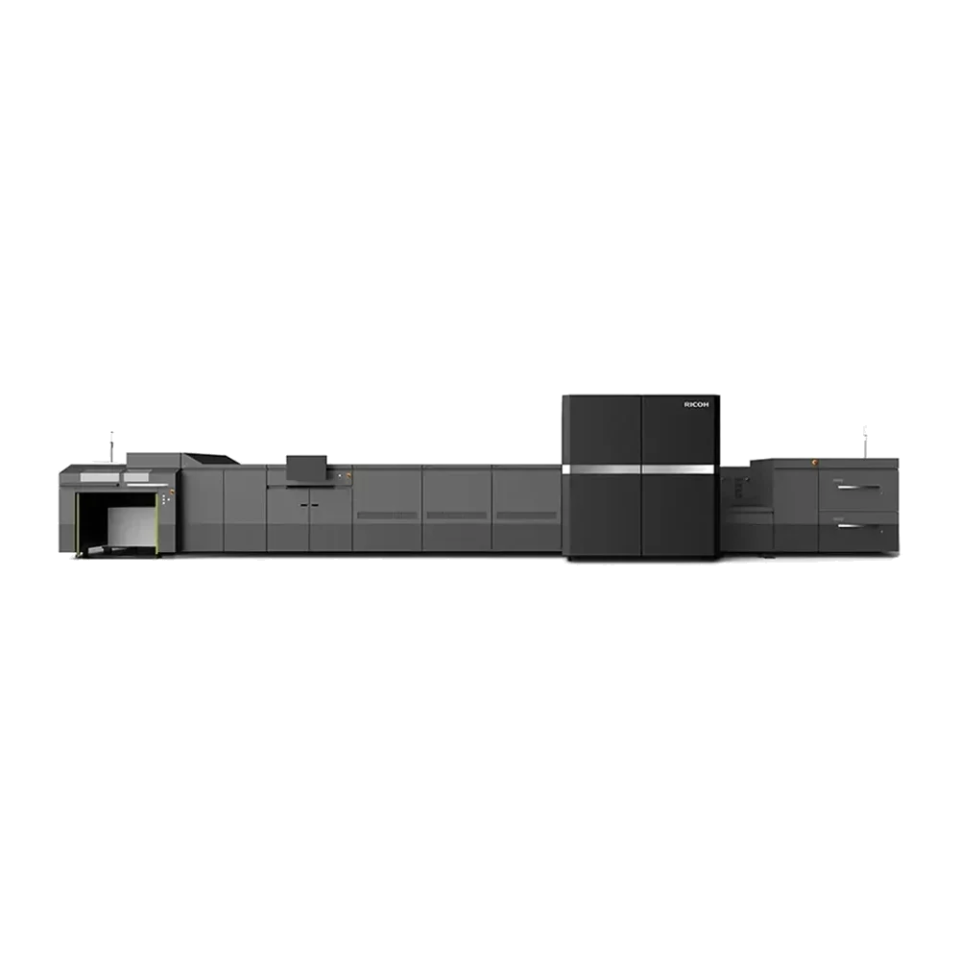

The Pro Z75 runs at Up to 310 g/m 2 4,500 sph, simplex 2,250 sph, duplex Up to 400 g/m 2 3,000 sph, simplex 1,500 sph, duplex.
| SPECIFICATIONS | |
|---|---|
| Functions | |
| Colour | Yes |
| Printer controller - optional | Digital Front End (DFE) Fiery Colour Controller N-500 |
| Device configuration | Standard configuration with print engine, dryer units, 1x multi-sheet feeder and 1x high-capacity stacker |
| GENERAL | |
| Physical dimensions (WxDxH), mainframe | 12,200 x 3,950 x 2,330 mm, Standard configuration |
| Weight, mainframe | 12,500 kg |
| GENERAL | |
| Paper output configuration - 3rd Party | Pre- and post-processing Multiple partners provide a variety of unwind, rewind, cut, fold, dynamic perforation, vision systems and inline processing, including a solution for books |
| Supported media | Uncoated, Ink Jet Treated, Ink Jet Coated |
| Maximum paper size | Up to B2+ (585 x 750 mm) |
| Media weight (g/m2) | 115-400 (coated), duplex, 80-114 (coated), simplex, 80-400 (uncoated), duplex, 60-79 (uncoated), simplex |
| GENERAL | |
| Print speed colour | Up to 310 g/m 2 4,500 sph, simplex 2,250 sph, duplex Up to 400 g/m 2 3,000 sph, simplex 1,500 sph, duplex |
| Target volume | up to 1.7M B2+ ipm (20 days x 2 shifts) |
| Printing technology | Piezo Drop-on-Demand Dynamic variable drop size |
| Ink type | Aqueous ink |
| Ink configuration | 4-colour CMYK |
| Printhead | Drop-on-Demand Piezo printhead |
| Print resolution | 1,200 x 1,200 dpi |
| Fiery controller | Fiery Controller N-500 Operating system Windows 10 IoT Enterprise LTSC 2021 System version Fiery FS500 Pro (for High-Speed Inkjet Printer) CPU 4x Intel Xeon Gold 6226 Processor 19.25M Cache 2.7Ghz, 12 core Memory (RAM) 16 GB |
| GENERAL | |
| Safety standards | UL775 Ed.3 / CSA C22.2 #301 UL508A / CSA C22.2 #286 ISO 12100 ISO 13849-1 EN 60204-1 EN 1010-1/-2 |
| Electromagnetic Compatibility (EMC) standards | FCC Part15 Subpart B (Class A) EN 62311 (CE marking) EN 61000-6-2, EN55011 KS C 9811, KS C 9610-6-2 |
| Operating environment | Operating temperature 20-24° C Operating humidity 40-60% |
Specifications and images are provided for general reference only and may vary by configuration, revision or region. They do not form part of any offer or contract. Contact us to confirm exact specifications, availability and pricing for your requirement.
