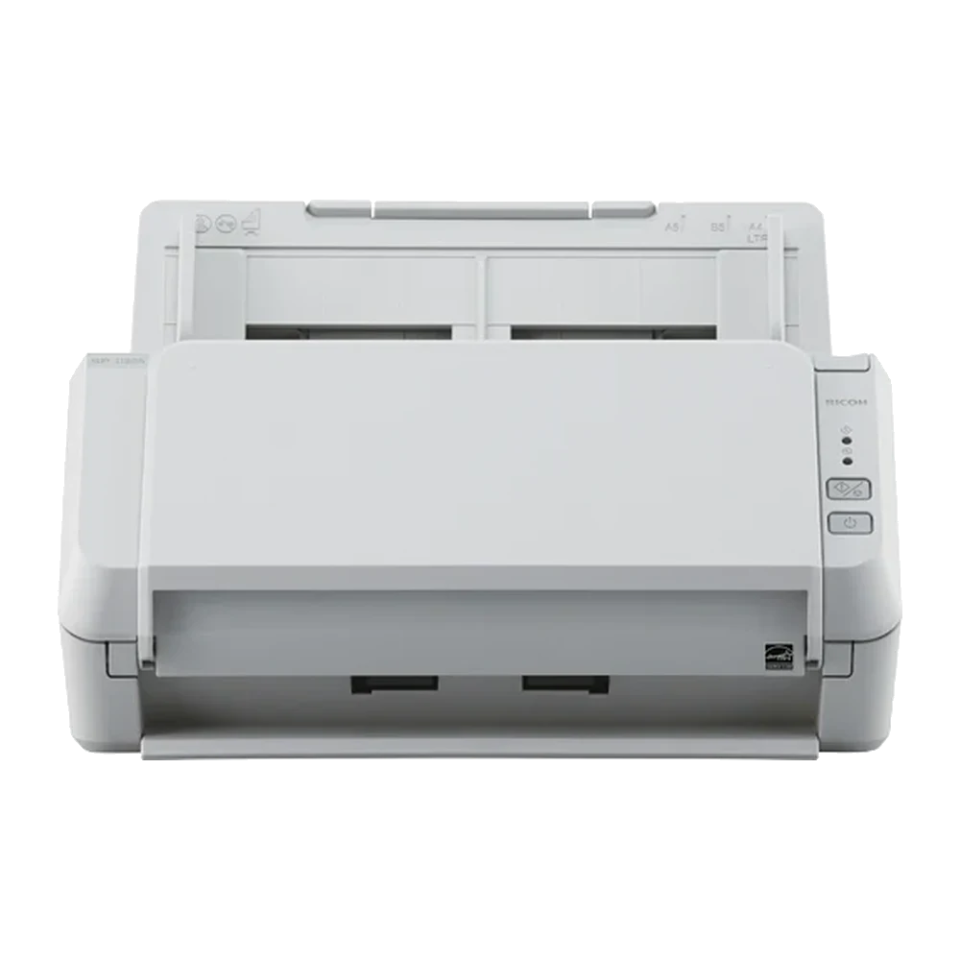

SP-1120N Scanner
-
Compact Design – Ideal for small office spaces.
-
Fast Scanning – Scans up to 20 pages per minute.
-
High Resolution – Delivers up to 600 dpi for clear images.
-
Automatic Document Feeder – 50-sheet capacity for efficient scanning.
-
Duplex Scanning – Automatically scans both sides of the document.
-
Network-Ready – Easily integrates into office networks.
-
Versatile Media Support – Scans various document types and sizes.
-
Bundled Software – Includes tools for organizing and managing scans.
-
Energy-Efficient – Low power consumption during operation.
-
USB Connectivity – Simple plug-and-play setup with USB support.
Get Quote Download Brochure
Product Highlight
Simple and network compatible scanner for business
The SP-1120N provides high-value performance as an entry-level model for your business with scanning speeds of 20 ppm/40 ipm (A4 portrait, color, 200 / 300 dpi), ADF capacity of 50 sheets, ability to scan a wide range of documents.
- Supports both USB 3.2 Gen 1x1 high-speed connection and wired network connection
- Compact and user-friendly design
- High quality technologies for accurate and reliable feeding
- Plastic card scanning
- Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
- Various software available for better data management
- PaperStream ClickScan also available for ad-hoc use to scan in 3 simple steps
Product Specification
| Product Name | SP-1120N | |
|---|---|---|
| Scanner Type | ADF (Automatic Document Feeder), Duplex | |
| Scanning Speed (A4 Portrait) (2) (Colour /Greyscale (3)/Monochrome (3)) |
Simplex: 20 ppm (200/300 dpi) Duplex: 40 ipm (200/300 dpi) |
|
| Image Sensor Type | Single line CMOS-CIS x 2 (front x 1, back x 1) | |
| Light Source | RGB LED x 2 (front x 1, back x 1) | |
| Optical Resolution | 600 dpi | |
| Output Resolution (5) (Colour / Greyscale / Monochrome) |
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) (6) | |
| Output Format | Colour: 24-bit, Greyscale: 8-bit, Monochrome: 1-bit | |
| Background Colours | White | |
| Document Size | Maximum | 216 x 355.6 mm (8.5 x 14 in.) |
| Minimum | 52 x 74 mm (2.0 x 2.9 in.) | |
| Long Page Scanning (1) | 3,048 mm (120 in.) | |
| Paper Weight (Thickness) | Paper | 50 to 209 g/m2 (13.4 to 56 lb) (7) |
| Plastic Card | 0.76 mm (0.0299 in.) or less (8) | |
| Paper Chute Capacity (4) | 50 sheets (A4 80 g/m2 or Letter 20 lb) / 60 sheets (A4: 64g/m²) | |
| Expected Daily Volume | 3,000 sheets | |
| Multifeed Detection | Overlap detection (Ultrasonic sensor) | |
| Interface | USB | USB 3.2 Gen 1x1 |
| Ethernet | 10BASE-T,100BASE-TX,1000BASE-T | |
| Power Requirements | AC 100 to 240 V ±10 % | |
| Power Consumption | Operating Mode | 18 W or less |
| Power Saving Mode | 2 W or less | |
| Auto Standby (Off) Mode | 0.3 W or less | |
| Operating Environment | Temperature | 5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 20 to 80% (non-condensing) | |
| Environmental Compliance | ENERGY STAR®, RoHS | |

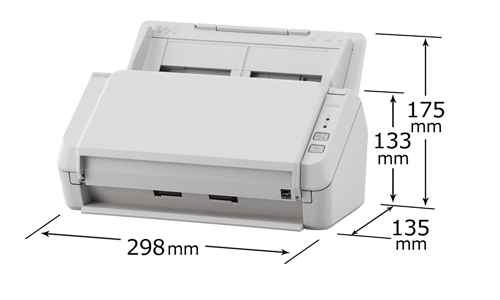

| Dimensions (7) (W x D x H) | 298 x 135 x 133 mm (11.7 x 5.3 x 5.2 in.) | |
| Weight | 2.5 kg (5.5 lb) | |
| Supported Operating System | Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, macOS, Linux (Ubuntu) | |
| Included Software / Drivers(8) | PaperStream IP for SP Series (TWAIN/TWAIN x64/ISIS), WIA Driver, PaperStream Capture, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™, Scanner Central Admin, ABBYY™ FineReader Sprint™, PaperStream IPNet. SP Series Online Update | |
| Image Processing Functions | Multi image output, Automatic colour detection, Automatic page size detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout colour (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Split image, De-Skew, Edge filler, Vertical streaks reduction, Digital endorser, Background pattern removal, Character thickness, Character augmentation, Character extraction, Automatic Profile Selection | |
| Included Items | AC adapter, USB cable, Setup DVD-ROM | |
